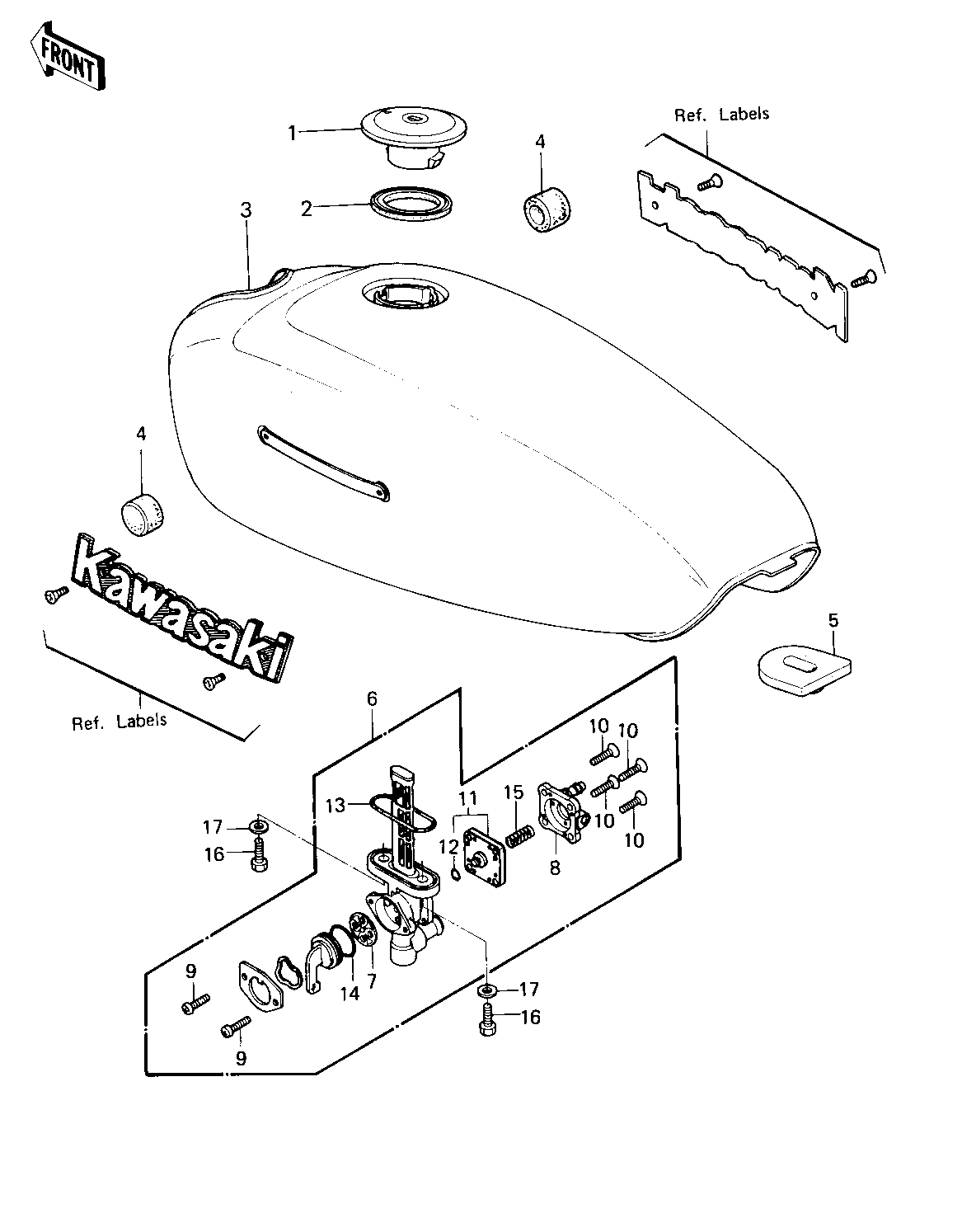

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP ASSY,TANK | 1 | 51048-1001 | 1 | ||
| GASKET,TANKCAP | 2 | 11009-1053 | 1 | ||
| TANK-FUEL,F.RED | 3 | 51001-1004-B1 | 1 | ||
| TANK-FUEL,M.BLUE | 3 | 51001-1004-B4 | 1 | ||
| DAMPER RUBBER-FL TANK | 4 | 92075-101 | 2 | ||
| DAMPER RUBBER FUEL TA | 5 | 92075-295 | 1 | ||
| TAP ASSY,FUEL | 6 | 51023-1030 | 1 | ||
| GASKET,FUEL TAP | 7 | 11009-1188 | 1 | ||
| COVER ASSY,FUEL TAP | 8 | 16146-1009 | 1 | ||
| SCREW PAN HEAD 3X8 | 9 | 220B0308 | 2 | ||
| SCREW-CSK-CROS,4X14 | 10 | 221B0414 | 4 | ||
| DIAPHRAGM VALVE ASSY | 11 | 43028-1021 | 1 | ||
| "O" RING,4MM | 12 | 670B1504 | 1 | ||
| "O" RING | 13 | 51039-003 | 1 | ||
| "0" RING,FUEL TAP LEV | 14 | 92055-1085 | 1 | ||
| SPRING,DIAPHRAGM VALV | 15 | 92081-1240 | 1 | ||
| BOLT,6X20,FUEL TAP | 16 | 92001-1091 | 2 | ||
| WASHER-PLAIN | 17 | 92022-183 | 2 |
| CAP ASSY,TANK | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,TANKCAP | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TANK-FUEL,F.RED | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TANK-FUEL,M.BLUE | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER-FL TANK | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER FUEL TA | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TAP ASSY,FUEL | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,FUEL TAP | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER ASSY,FUEL TAP | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 3X8 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-CSK-CROS,4X14 | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DIAPHRAGM VALVE ASSY | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING,4MM | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING,FUEL TAP LEV | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,DIAPHRAGM VALV | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X20,FUEL TAP | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
