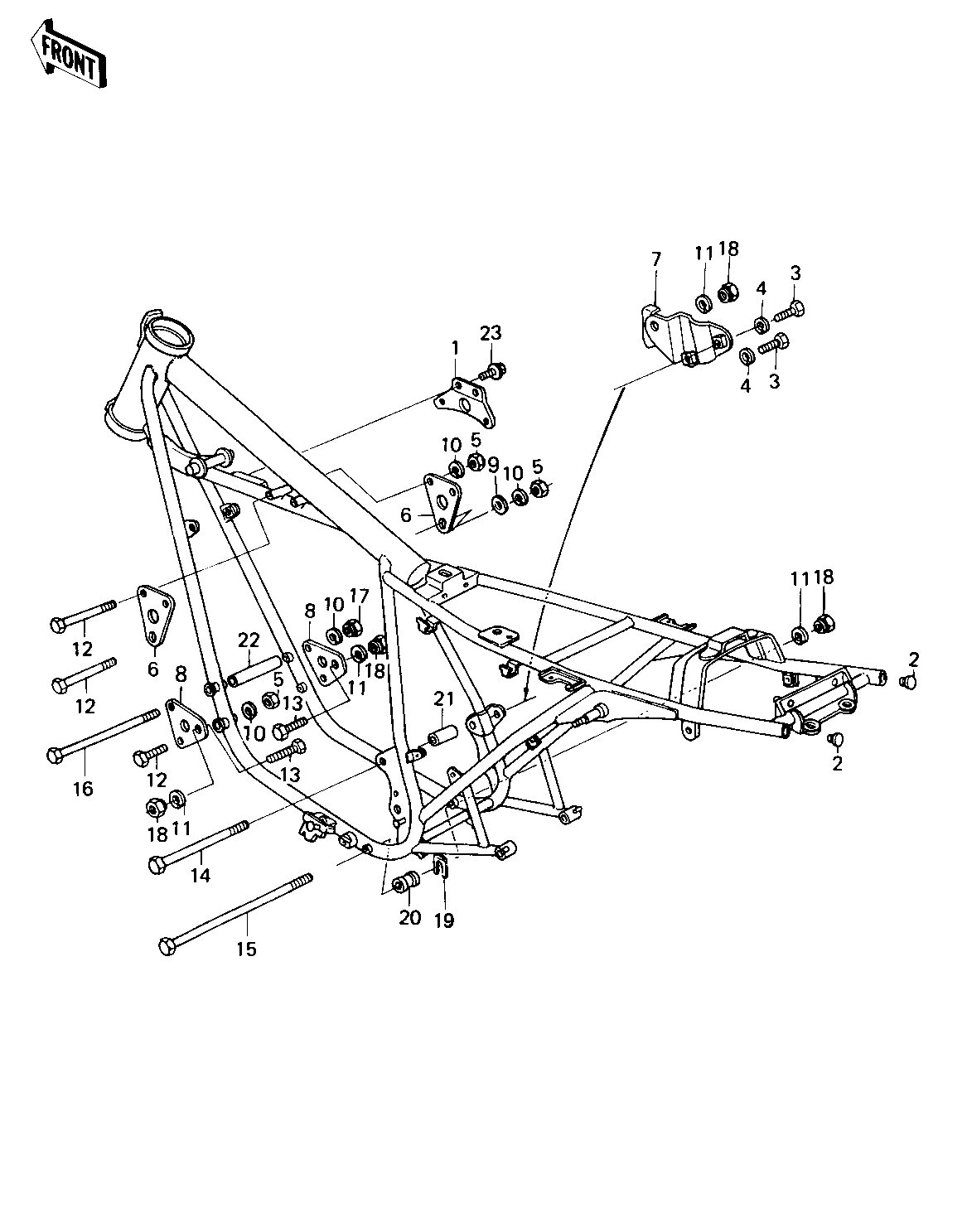

1980 KZ440-B1 - FRAME FITTINGS ('80 B1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,IGNITON COIL | 1 | 32058-049 | 1 | ||
| PLUG,FRAME RUBBER | 2 | 32112-008 | 2 | ||
| BOLT-SMALL-UPSET 8X25 | 3 | 115G0825 | 2 | ||
| WASHER SPRING 8MM | 4 | 461F0800 | 2 | ||
| NUT,8MM | 5 | 311B0800 | 5 | ||
| BRACKET,ENGINE | 6 | 32029-1016 | 2 | ||
| PLATE,ENG MOUNT,REAR | 7 | 32030-034 | 1 | ||
| PLATE,ENG MOUNT,FRNT | 8 | 32030-044 | 2 | ||
| WASHER PLAIN 8MM | 9 | 411B0800 | 1 | ||
| WASHER SPRING 8MM | 10 | 461F0800 | 6 | ||
| WASHER SPRING 10MM | 11 | 461F1000 | 4 | ||
| BOLT,FLANGED,8X60 | 12 | 92001-1581 | 5 | ||
| BOLT,HEX HEAD,10X50 | 13 | 92001-1254 | 2 | ||
| BOLT FLANGED 10X220 | 14 | 92002-1197 | 1 | ||
| BOLT,HEX HEAD,10X292 | 15 | 92003-162 | 1 | ||
| BOLT,HEX HEAD,8X253 | 16 | 92003-171 | 1 | ||
| NUT,LOCK,8MM | 17 | 92015-1124 | 1 | ||
| NUT,LOCK,10MM | 18 | 92019-021 | 4 | ||
| SHIM-ENG FIT FR,0.5MM | 19 | 92025-053 | AR | ||
| SHIM-ENG FIT FR,0.8MM | 19 | 92025-054 | AR | ||
| SHIM-ENG FIT FR,1.0MM | 19 | 92025-055 | AR | ||
| SHIM-ENG FIT FR,1.6MM | 19 | 92025-056 | AR | ||
| SHIM-ENG FIT FR,2.0MM | 19 | 92025-057 | AR | ||
| SHIM-ENG FIT FR,2.3MM | 19 | 92025-058 | AR | ||
| COLLAR,ENG MOUNTING | 20 | 92027-160 | AR | ||
| COLLAR | 20 | 92027-250 | AR | ||
| COLLAR,ENG MOUNT UPPE | 21 | 92027-228 | 1 | ||
| COLLAR,ENG PLAT,FRNT | 22 | 92027-233 | 1 | ||
| BOLT,SPROCKET FITTING | 23 | 92003-208 | 2 |
