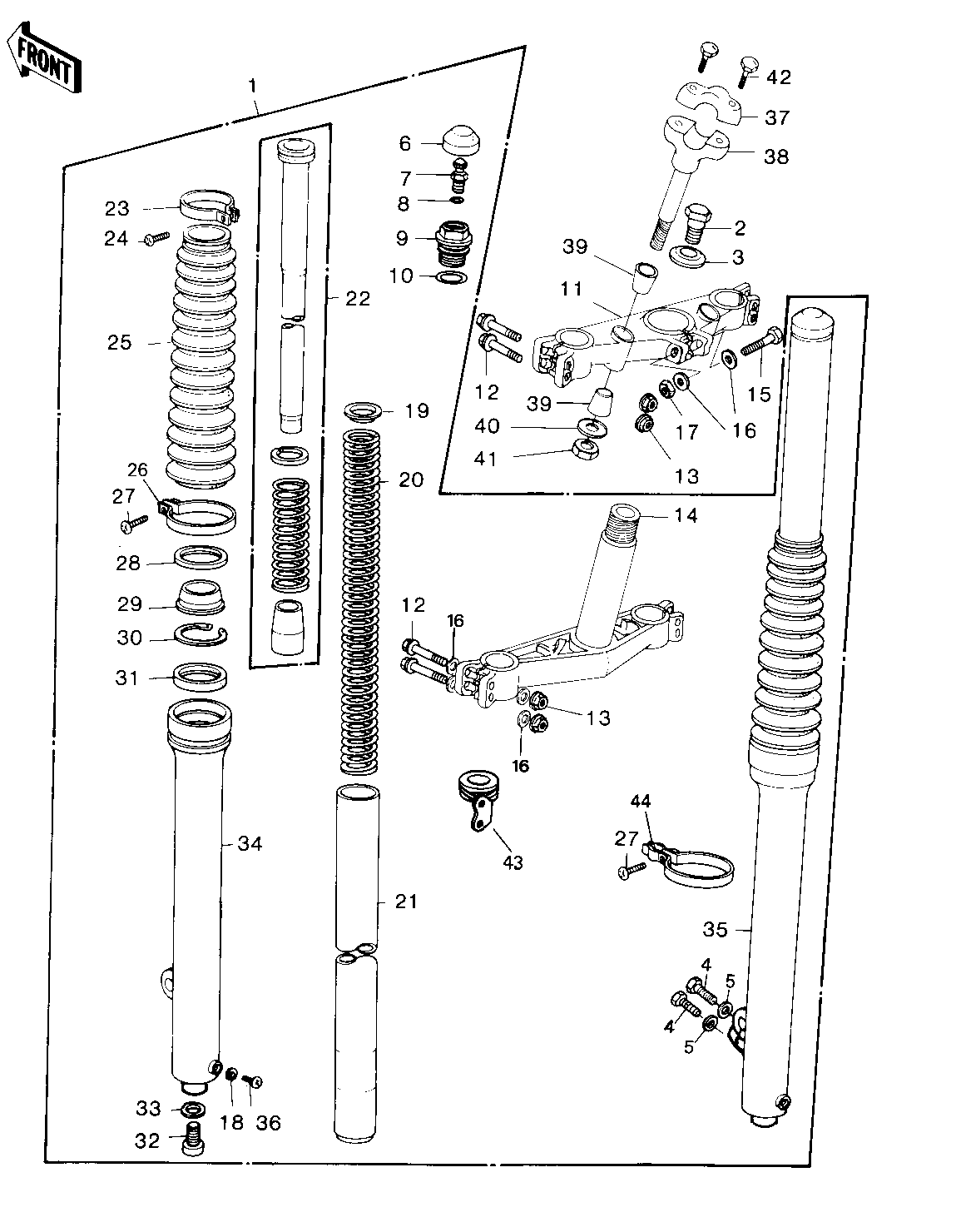

1980 KX420 - FRONT FORK (KX420-A1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-FRONT 1 44001-1118 1
BOLT,FORK TOP 2 44041-065 1 14 X 20
WASHER 3 44043-052 1
BOLT-SMALL-UPSET 8X25 4 115G0825 2
WASHER SPRING 8MM 5 461F0800 2
CAP,RUBBER,FORK TOP 6 44029-1009 2
VALVE ASSY,AIR 7 16126-1003 2
"0" RING,AIR VALVE 8 92055-1018 2
CAP,FORK TOP 9 44029-1008 2
"0" RING,FORK TOP CAP 10 92055-1050 2
HEAD,STEERING STEM 11 44039-4004 1
BOLT FLANGED 8X55 12 92001-1398 8
NUT 8MM 13 311G0800 8
STEM,STEERING 14 44037-1048 1
NUT,LOCK,8MM 15 92015-1124 1
WASHER PLAIN 8MM 16 410B0800 9
NUT,LOCK,8MM 17 92015-1124 1
GASKET FORK DRAIN PLG 18 44045-002 2
GUIDE,FORK SPRING 19 44028-1003 2
SPRING,FORK INNER 20 44026-1042 2
TUBE,FORK INNER 21 44013-1028 2
CYLINDER-FORK 22 44022-1032 2
BAND,BOOTS 23 92072-1008 2
SCREW-PAN-CROS 24 220B0420 2
BOOT,FORK,L.GREEN 25 49006-1027 2 LIME GREEN
CLAMP,BOOT,L.H 26 92072-1026 1
SCREW PAN HEAD 6X20 27 220B0620 2
CASE,DUST SHIELD 28 32099-1013 2
DUST SHIELD,FORK OUTR 29 92093-1035 2
SNAP RING,FORK OUTER 30 92033-1047 2
OIL SEAL,FORK OUT TUB 31 92049-1042 2
BOLT,FORK CYLINDER 32 92001-1309 2
GASKET,FORK CYLINDER 33 11009-1127 2
TUBE,LH,FORK OUTER 34 44005-1037 1
TUBE,RH,FORK OUTER 35 44006-1037 1
SCREW PAN HEAD 4X8 36 220B0408 2
HOLDER-HANDLEBAR 37 46012-008 2 UPPER
HOLDER-HANDLEBAR LOW 38 46012-010 2 LOWER
DAMPER RUBBER,HANDLE 39 92075-275 4
WASHER-HANDLEBAR FIT 40 92022-196 2
NUT,LOCK,10MM 41 92019-021 2
BOLT 8X38 42 92001-1405 4
CLAMP,CABLE 43 92072-1027 1
CLAMP,BOOT,R.H 44 92072-1025 1
