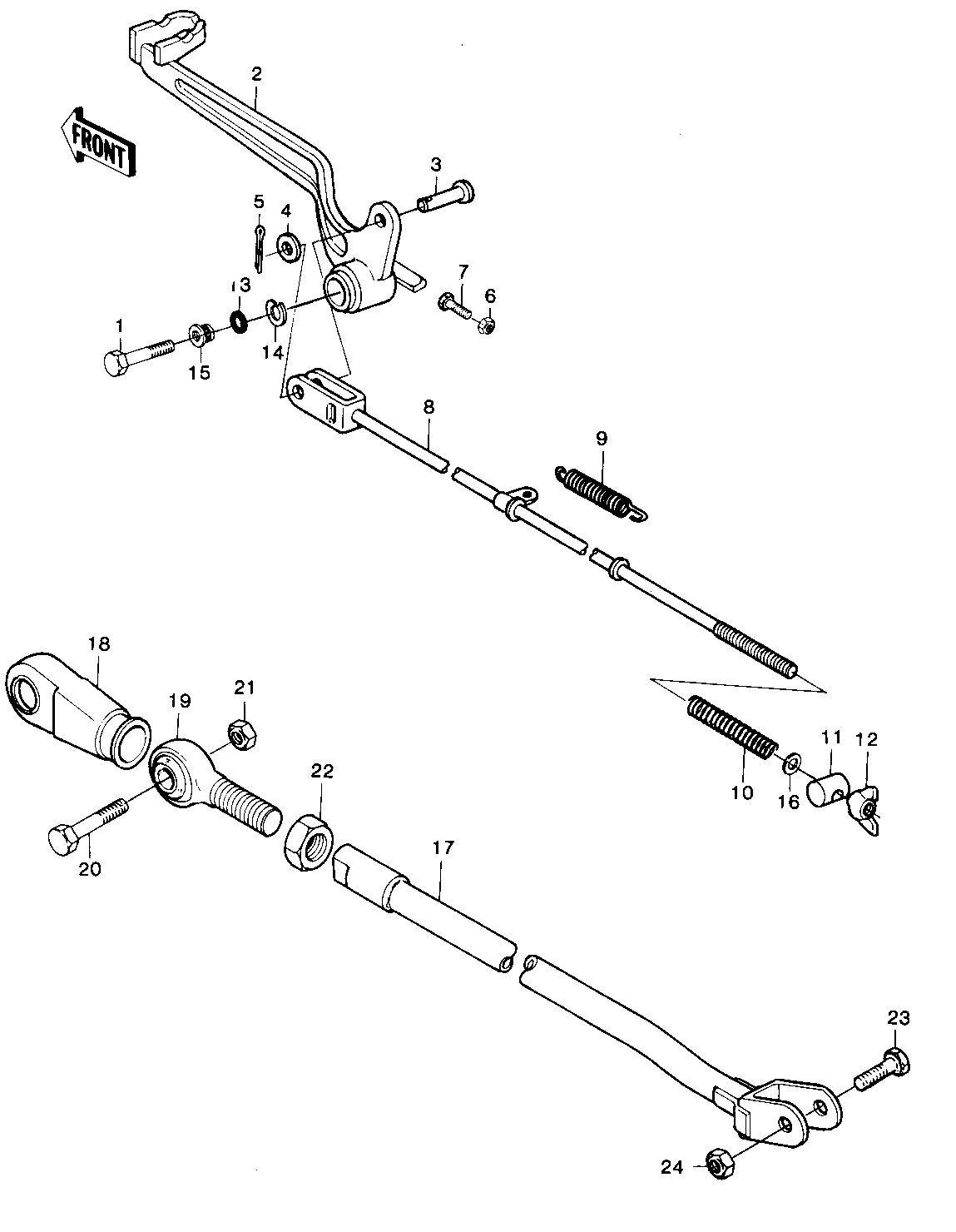

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT SMALL | 1 | 114G0812 | 1 | KX420-A1 | |
| BOLT SMALL | 1 | 114G0812 | 1 | KX420-A2 | |
| LEVER,BRAKE | 2 | 43001-1042 | 1 | ||
| PIN-BRAKE ROD FITTING | 3 | 92043-064 | 1 | ||
| WASHER PLAIN 6MM | 4 | 410B0600 | 1 | ||
| PIN COTTER 2.0X15 | 5 | 550D2015 | 1 | ||
| NUT 6MM | 6 | 311B0600 | 1 | ||
| BOLT 6X22 | 7 | 112B0622 | 1 | ||
| ROD,BRAKE | 8 | 43011-1019 | 1 | ||
| SPRING RETURN | 9 | 92081-1059 | 1 | KX420-A1 | |
| SPRING,RETURN | 9 | 92081-4012 | 1 | KX420-A2 | |
| SPRING,BRAKE ROD | 10 | 43012-001 | 1 | ||
| PIN,BRAKE | 11 | 92043-1024 | 1 | ||
| NUT,WING,6M/M | 12 | 92015-4004 | 1 | ||
| "0" RING,18MM | 13 | 670B2018 | 1 | ||
| WASHER SPRING 8MM | 14 | 461F0800 | 1 | ||
| CAP | 15 | 11012-1101 | 1 | ||
| WASHER, BRAKE ROD | 16 | 92022-4003 | 1 | KX420-A2 | |
| TORQUE LINK,RR BRAKE | 17 | 43007-1014 | 1 | ||
| BOOT,BALL JOINT | 18 | 49006-1035 | 1 | ||
| JOINT,BALL,TORQUE RNK | 19 | 59266-1003 | 1 | ||
| BOLT,HEX HEAD,12X35 | 20 | 113P1235A | 1 | ||
| NUT-LOCK,12MM | 21 | 92019-009 | 1 | ||
| NUT-HEX-FINE,12MM | 22 | 315B1200 | 1 | ||
| BOLT,FLANGED,8X35 | 23 | 92001-1577 | 1 | ||
| NUT,LOCK,8MM | 24 | 92017-013 | 1 | KX420-A1 | |
| NUT,8MM | 24 | 92015-1134 | 1 | KX420-A2 |
