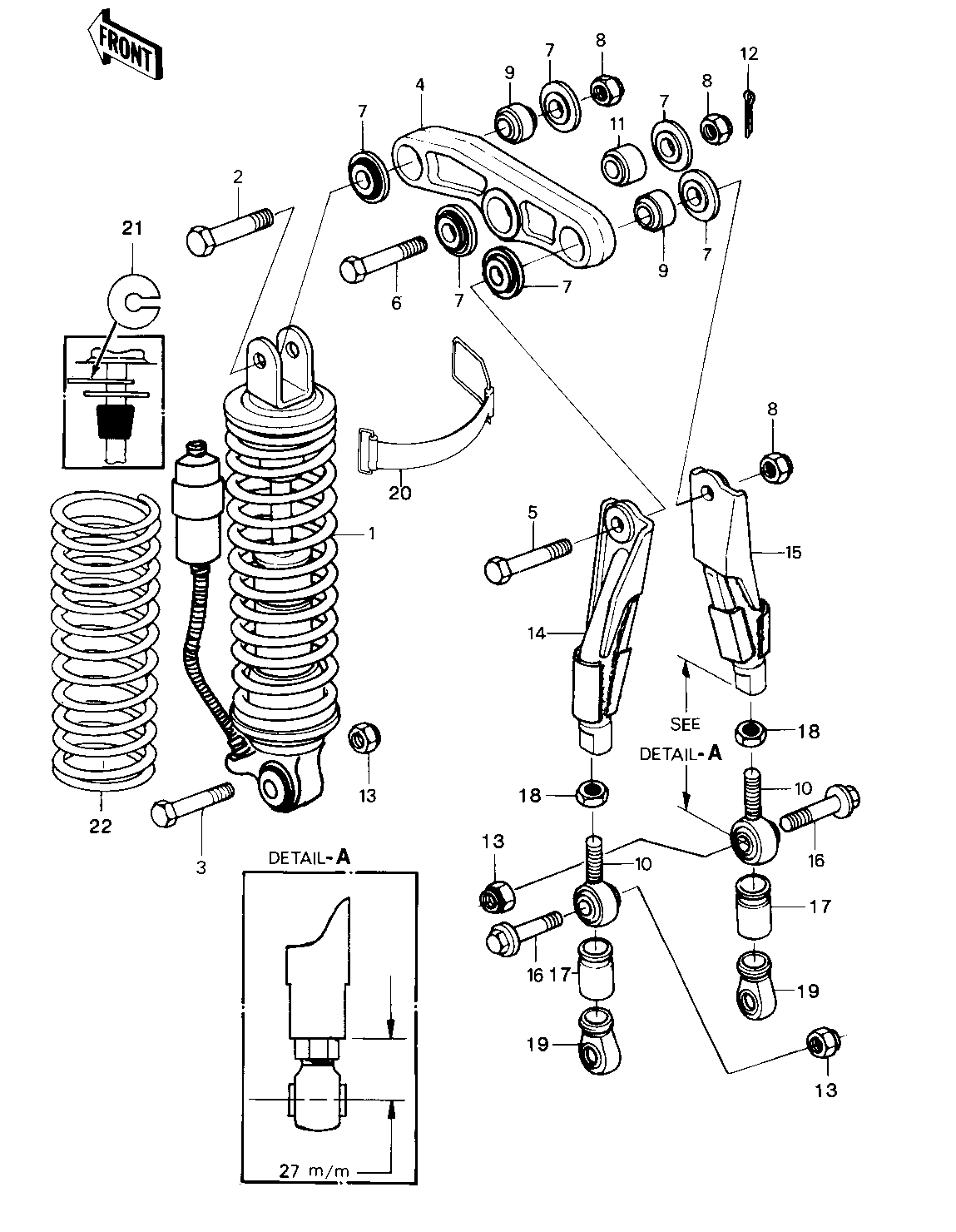

1980 KX420 - REAR SUSPENSION/SHOCK ABSORBER (KX420-A1
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHOCK ABSBR RR | 1 | 45014-1050 | 1 | ||
| BOLT,HEX HEAD,14X50 | 2 | 92001-1317 | 1 | ||
| BOLT,HEX HEAD,12X55 | 3 | 113P1255A | 1 | ||
| ARM-SUSP | 4 | 39007-1006 | 1 | ||
| BOLT,HEX HEAD,14X54 | 5 | 92001-1295 | 1 | ||
| BOLT,HEX HEAD,14X60 | 6 | 92001-1335 | 1 | ||
| CAP,SUSPENSION ARM | 7 | 11012-1117 | 6 | ||
| NUT-LOCK,14MM | 8 | 92019-011 | 3 | ||
| NUT-LOCK,14MM | 8 | 92019-011 | 3 | ||
| JOINT,BALL,SUSPENSION | 9 | 59266-1001 | 2 | ||
| JOINT,BALL,SUSPENSION | 10 | 59266-1002 | 2 | ||
| BUSHING,SUSPENSION AM | 11 | 92028-1087 | 1 | ||
| PIN COTTER 2.5X25 | 12 | 550D2525 | 1 | ||
| NUT-LOCK,12MM | 13 | 92019-009 | 3 | ||
| ROD,UNI-TRACK,LH | 14 | 46102-1024 | 1 | ||
| ROD,UNI-TRACK,RH | 15 | 46102-1025 | 1 | ||
| BOLT,HEX HEAD,12X48 | 16 | 92001-1297 | 2 | ||
| BOOT,BALL JOINT | 17 | 49006-1045 | 2 | ||
| NUT-HEX-FINE,12MM | 18 | 315B1200 | 2 | ||
| BOOT,BALL JOINT | 19 | 49006-1046 | 2 | ||
| BAND,FUEL TANK | 20 | 92072-076 | 1 | ||
| SPACER | 21 | 92026-4006 | AR | I.D.=20.5 MM | |
| SPRING, RR SHOCK STD | 22 | 92081-1242 | 1 | 10.0 KG/MM | |
| SPRING,RR SHOCK,SOFTR | 22 | 92081-1293 | (1 | 9.5 KG/MM | |
| SPRING,RR SHOCK,HARDR | 22 | 92081-1294 | (1 | 10.5 KG/MM |
| SHOCK ABSBR RR | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,14X50 | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,12X55 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ARM-SUSP | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,14X54 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,14X60 | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,SUSPENSION ARM | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| NUT-LOCK,14MM | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| NUT-LOCK,14MM | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| JOINT,BALL,SUSPENSION | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| JOINT,BALL,SUSPENSION | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BUSHING,SUSPENSION AM | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN COTTER 2.5X25 | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT-LOCK,12MM | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| ROD,UNI-TRACK,LH | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD,UNI-TRACK,RH | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,12X48 | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOOT,BALL JOINT | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT-HEX-FINE,12MM | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOOT,BALL JOINT | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BAND,FUEL TANK | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | I.D.=20.5 MM |
| SPRING, RR SHOCK STD | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | 10.0 KG/MM |
| SPRING,RR SHOCK,SOFTR | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | (1 |
| DESTINATION | |
| REMARKS | 9.5 KG/MM |
| SPRING,RR SHOCK,HARDR | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | (1 |
| DESTINATION | |
| REMARKS | 10.5 KG/MM |
