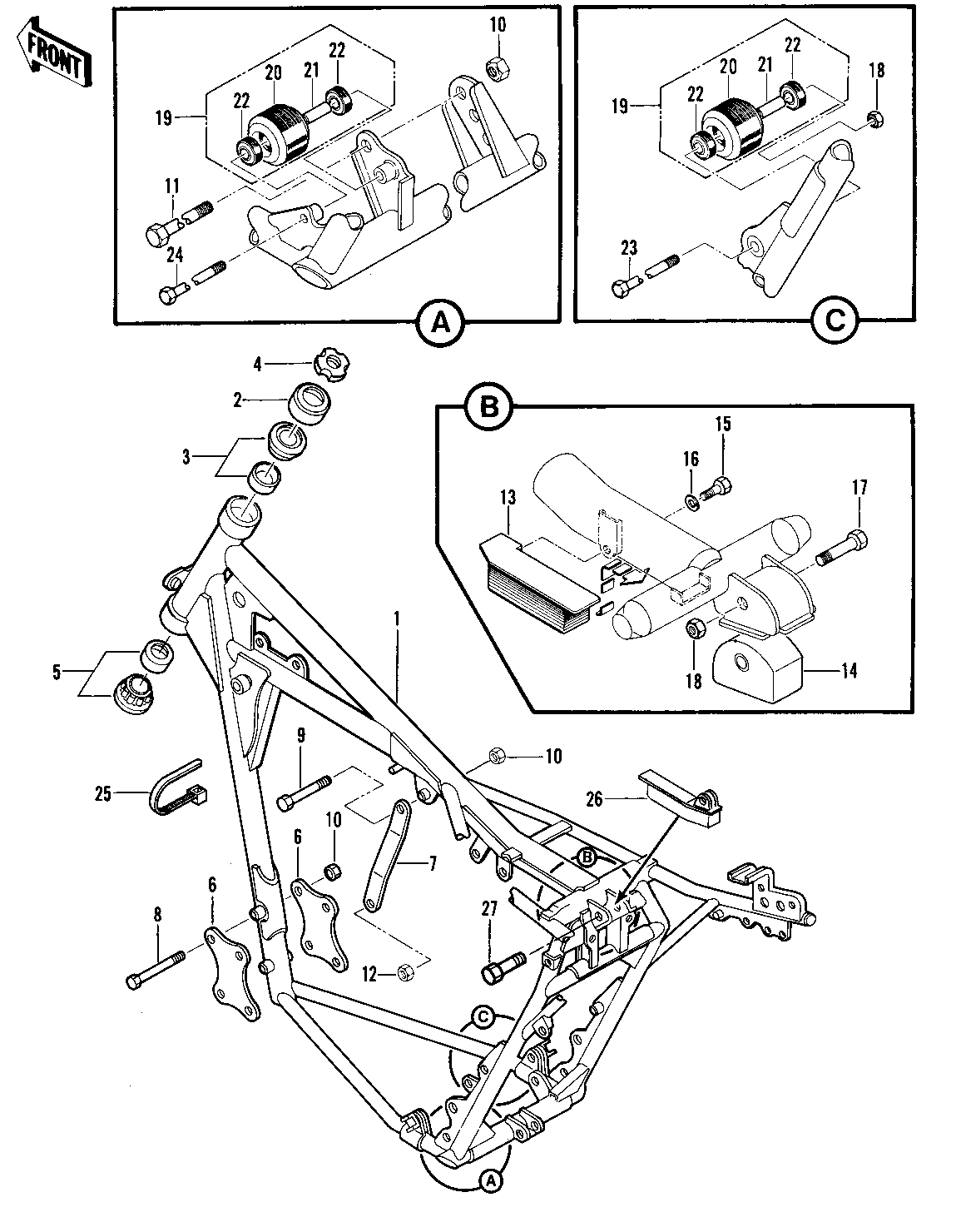

1980 KX420 - FRAME/FRAME FITTINGS (KX420-A1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FRAME | 1 | 32002-1231 | 1 | ||
| FRAME | 1 | 32002-1231 | 1 | ||
| CAP,STEERING STEM | 2 | 46098-015 | 1 | ||
| BEARING,STEERING STEM | 3 | 92047-017 | 1 | UPPER | |
| NUT | 4 | 92015-1546 | 1 | ||
| BEARING,ROLLER,32006 | 5 | 92116-1008 | 1 | LOWER | |
| BRACKET,ENGINE | 6 | 32029-1116 | 2 | ||
| BRACKET,ENGINE | 7 | 32029-4010 | 1 | ||
| BOLT HEX HEAD,10X66.5 | 8 | 92001-1033 | 4 | ||
| BOLT | 9 | 92001-1412 | 1 | ||
| NUT,LOCK,10MM | 10 | 92019-021 | 6 | ||
| BOLT,HEX HEAD,10X127 | 11 | 92001-4001 | 1 | ||
| NUT,10MM | 12 | 92015-1415 | 1 | ||
| DAMPER,REAR SHOCK | 13 | 92075-1249 | 1 | USE FOR 32002-1231 | |
| DAMPER UNITRAK | 14 | 92075-4025 | 1 | USE FOR 32002-1231 | |
| BOLT SMALL | 15 | 114G0812 | 1 | USE FOR 32002-1231 | |
| WASHER SPRING 8MM | 16 | 461F0800 | 1 | USE FOR 32002-1231 | |
| BOLT,8X40 | 17 | 115G0840 | 1 | USE FOR 32002-1231 | |
| NUT,LOCK,8MM | 18 | 92015-1124 | 2 | USE FOR 32002-1231 | |
| ROLLER,ASSY | 19 | 92122-1013 | 2 | ||
| ROLLER | 20 | 92122-1014 | 2 | ||
| ROLLER | 20 | 92122-1014 | 2 | ||
| COLLAR | 21 | 92027-1081 | 2 | ||
| BEARING,BALL | 22 | 92045-1009 | 4 | ||
| BEARING,BALL | 22 | 92045-1009 | 4 | ||
| BOLT-SMALL-UPSET,8X55 | 23 | 115G0855 | 1 | ||
| BOLT HEX HEAD 8X70 | 24 | 114B0870 | 1 | ||
| BAND | 25 | 92072-3509 | 3 | ||
| DAMPER,RUBBER | 26 | 92075-1280 | 1 | USE FOR 32002-1109 | |
| BOLT 6X35 | 27 | 110R0635 | 1 | USE FOR 32002-1109 |
| FRAME | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FRAME | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,STEERING STEM | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING,STEERING STEM | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | UPPER |
| NUT | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING,ROLLER,32006 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | LOWER |
| BRACKET,ENGINE | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET,ENGINE | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT HEX HEAD,10X66.5 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,10MM | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,10X127 | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,10MM | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,REAR SHOCK | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR 32002-1231 |
| DAMPER UNITRAK | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR 32002-1231 |
| BOLT SMALL | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR 32002-1231 |
| WASHER SPRING 8MM | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR 32002-1231 |
| BOLT,8X40 | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR 32002-1231 |
| NUT,LOCK,8MM | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | USE FOR 32002-1231 |
| ROLLER,ASSY | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| ROLLER | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| ROLLER | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BEARING,BALL | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BEARING,BALL | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-SMALL-UPSET,8X55 | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT HEX HEAD 8X70 | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND | |
| REF # | 25 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER,RUBBER | |
| REF # | 26 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR 32002-1109 |
| BOLT 6X35 | |
| REF # | 27 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR 32002-1109 |
