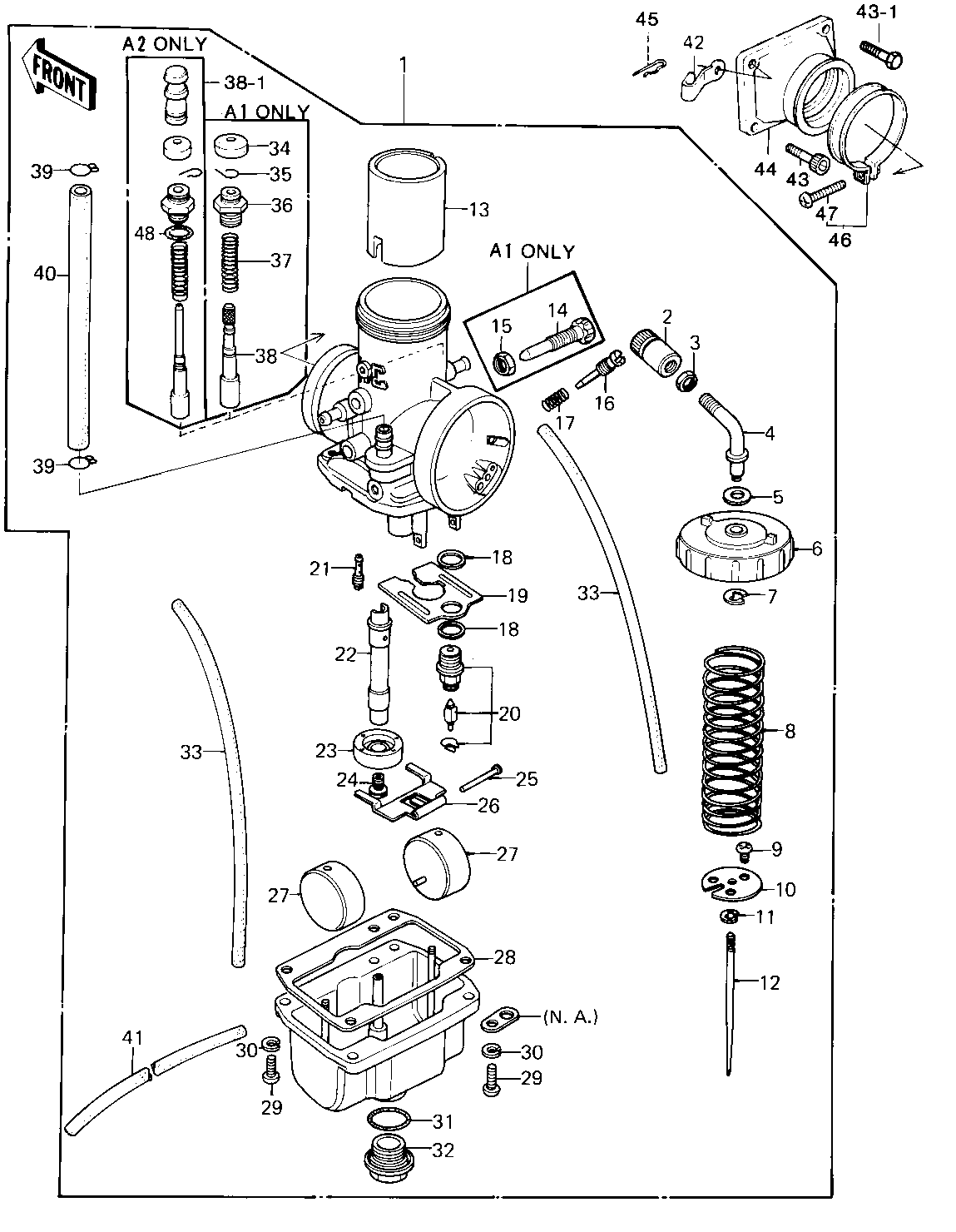

1980 KX420 - CARBURETOR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CARBURETOR ASSY 1 16001-1245 1 VM38SS
ADJUSTER,CABLE 2 16002-1006 1
NUT CABLE ADJUST LOCK 3 16003-004 1
GUIDE,CABLE 4 13070-1014 1
GASKET,CABLE GUIDE 5 11009-1191 1
TOP,MIXING CHAMBER 6 16004-1010 1
CIRCLIP,CABLE GUIDE 7 16008-011 1
SPRING-THROTTLE VALVE 8 16006-016 1
SCREW,4X5 9 92009-1037 1
SEAT,THROTTLE VALVE 10 16007-1007 1
CIRCLIP 11 16008-010 1
JET NEEDLE,6F31 12 16009-1059 1
VALVE,THROTTLE,CA3.0 13 16025-1011 1
SCREW,THROT VLV ADJST 14 16021-1030 1
NUT-CABLE ADJUST LOCK 15 16003-006 1
SCREW 16 16014-006 1
SPRING-THR STOP SCREW 17 16022-007 1
GASKET,FLOAT VALVE 18 11009-1076 2
BAFFLE-CARB 19 16038-019 2
FLOAT VALVE ASSY 20 16030-020 1
JET-PILOT NO 35 21 92064-023 1
NEEDLE JET,R-6 22 16017-1056 1
HOLDER,NEEDLE JET 23 16065-1015 1
MAIN JET,#165R 24 92063-1020 1 STD KX420-A1
MAIN JET,#160R 24 92063-1018 (1
MAIN JET,#162.5R 24 92063-1019 (1
MAIN JET,#167.5R 24 92063-1021 (1
MAIN JET,#170R 24 92063-1022 (1
PIN,FLOAT 25 16032-008 1
ARM,FLOAT 26 16055-009 1
FLOAT 27 16031-029 2
GASKET,FLOAT CHAMBER 28 16019-028 1
UNAVAILABLE IN PRICE BOOK 29 214B0516A 4
WASHER SPRING 5MM 30 461F0500 4
GASKET-COVER 31 16038-009 1
COVER,MAIN JET 32 16049-006 1
TUBE,3.5X6.5X410 33 92059-1142 2
CAP,STARTER PLUNGER 34 16036-013 1
CIRCLIP 35 92037-1077 1
CAP,STARTER PLUNGER 36 16012-021 1
SPRING,STARTER PLUNGR 37 16013-011 1
PLUNGER ASSY,STARTER 38 16016-013 1
CLAMP,CARB CONECT HOS 39 92037-056 2
HOSE,FUEL,6.5OX11.5O 40 92059-1026 1
TUBE,3.5X6.5X290,BRTH 41 92059-1017 1
CLAMP CABLE 42 92037-016 1
BOLT,SOCKET,6X25,BLAC 43 120S0625 4
HOLDER,CARBURETOR 44 16065-1005 1
CIRCLIP 45 92036-018 1
CLAMP,CARBURETOR HLDR 46 92037-116 1
SCREW-PAN-CROS 47 220B0535 1
