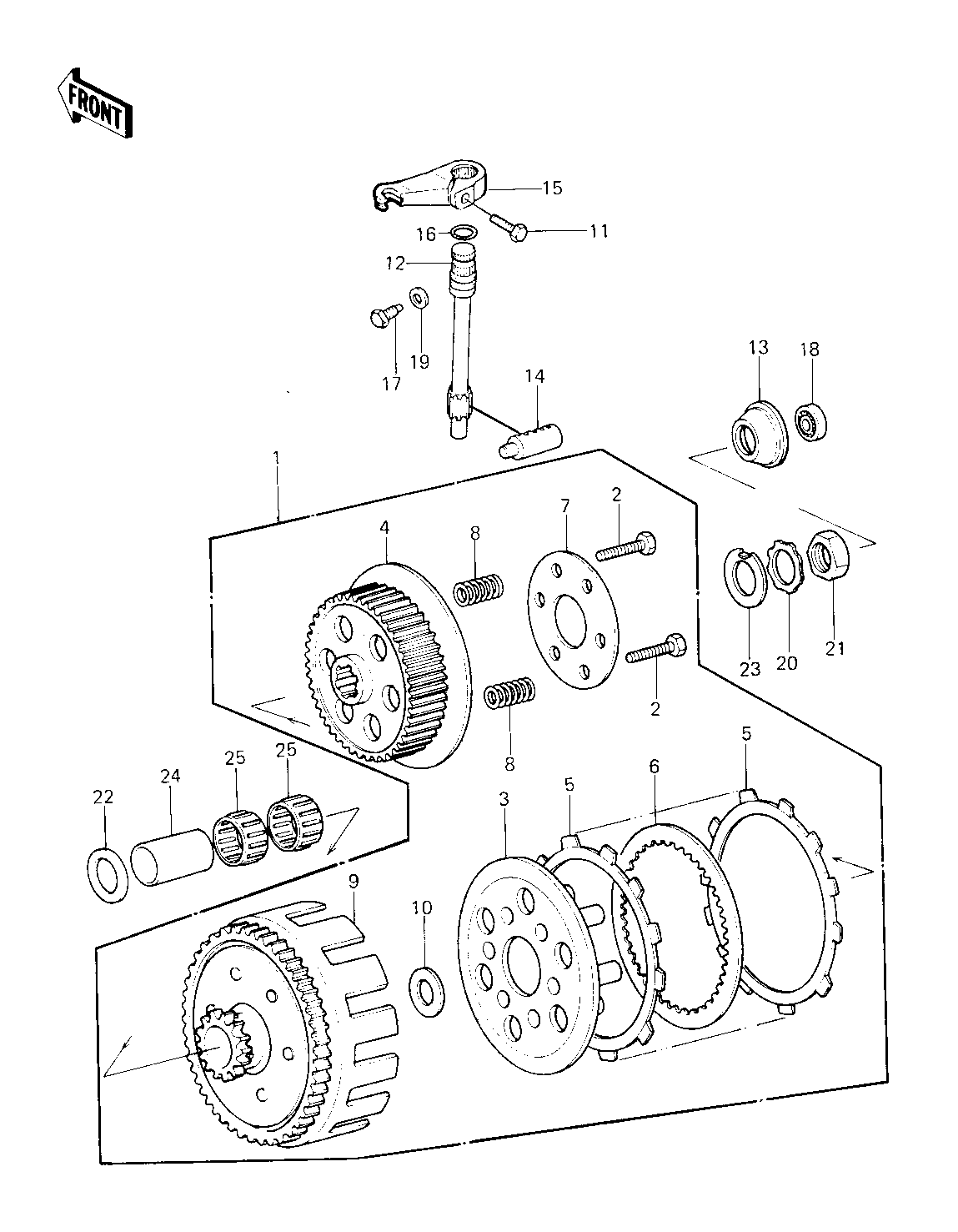

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CLUTCH-ASSY | 1 | 13081-1027 | 1 | KX420-A1 | |
| CLUTCH-ASSY | 1 | 13081-1056 | 1 | KX420-A2 | |
| BOLT-UPSET | 2 | 112G0618 | 6 | KX420-A1 | |
| BOLT-UPSET,6X20 | 2 | 112G0620 | 6 | KX420-A2 | |
| WHEEL,CLUTCH | 3 | 13086-016 | 1 | ||
| HUB,CLUTCH | 4 | 13087-1012 | 1 | ||
| PLATE,CLUTCH FRICTION | 5 | 13088-041 | 6 | ||
| PLATE,CLUTCH STEEL | 6 | 13089-025 | 5 | ||
| PLATE,CLUTCH SPRING | 7 | 13091-016 | 1 | ||
| SPRING,CLUTCH | 8 | 92081-1151 | 6 | ||
| HOUSING,CLUTCH | 9 | 13095-1017 | 1 | KX420-A1 | |
| HOUSING CLUTCH | 9 | 13095-1036 | 1 | KX420-A2 | |
| WASHER,CLUTCH THRUST | 10 | 92022-282 | 1 | ||
| BOLT-UPSET | 11 | 112G0618 | 1 | ||
| SHAFT,CLUTCH RELEASE | 12 | 13106-008 | 1 | ||
| HOLDER,CLUTCH PUSHER | 13 | 13091-1071 | 1 | KX420-A1 | |
| HOLDER,CLUTCH PUSHER | 13 | 13091-1071 | 1 | KX420-A2 | |
| ROD,CLUTCH PUSH | 14 | 13116-025 | 1 | ||
| LEVER,CLUTCH RELEASE | 15 | 13168-1023 | 1 | KX420-A1 | |
| LEVER,CLUTCH RELEASE | 15 | 13168-1010 | 1 | KX420-A2 | |
| "0" RING, 10MM | 16 | 670B2010 | 1 | ||
| BOLT,CLUTCH RELEASE | 17 | 92003-130 | 1 | ||
| BEARING,BALL | 18 | 92045-1005 | 1 | ||
| GASKET,R.H ENG COVER | 19 | 92065-092 | 1 | ||
| WASHER,LOCK,16MM | 20 | 464H1600 | 1 | ||
| NUT,16M/M | 21 | 92015-1016 | 1 | ||
| WASHER,PLAIN | 22 | 92022-314 | 1 | KX420-A1 | |
| WASHER,CLUTCH THRUST | 22 | 92022-282 | 1 | KX420-A2 | |
| WASHER,16.8X32X1.6 | 23 | 92022-1277 | 1 | ||
| BUSHING,CLUT,20X25X40 | 24 | 92028-1067 | 1 | ||
| BEARING,NEEDLE | 25 | 92046-1003 | 2 |
| CLUTCH-ASSY | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KX420-A1 |
| CLUTCH-ASSY | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KX420-A2 |
| BOLT-UPSET | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | KX420-A1 |
| BOLT-UPSET,6X20 | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | KX420-A2 |
| WHEEL,CLUTCH | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HUB,CLUTCH | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,CLUTCH FRICTION | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| PLATE,CLUTCH STEEL | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| PLATE,CLUTCH SPRING | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,CLUTCH | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| HOUSING,CLUTCH | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KX420-A1 |
| HOUSING CLUTCH | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KX420-A2 |
| WASHER,CLUTCH THRUST | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT,CLUTCH RELEASE | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,CLUTCH PUSHER | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KX420-A1 |
| HOLDER,CLUTCH PUSHER | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KX420-A2 |
| ROD,CLUTCH PUSH | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER,CLUTCH RELEASE | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KX420-A1 |
| LEVER,CLUTCH RELEASE | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KX420-A2 |
| "0" RING, 10MM | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,CLUTCH RELEASE | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING,BALL | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,R.H ENG COVER | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,LOCK,16MM | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,16M/M | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KX420-A1 |
| WASHER,CLUTCH THRUST | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KX420-A2 |
| WASHER,16.8X32X1.6 | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING,CLUT,20X25X40 | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING,NEEDLE | |
| REF # | 25 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
