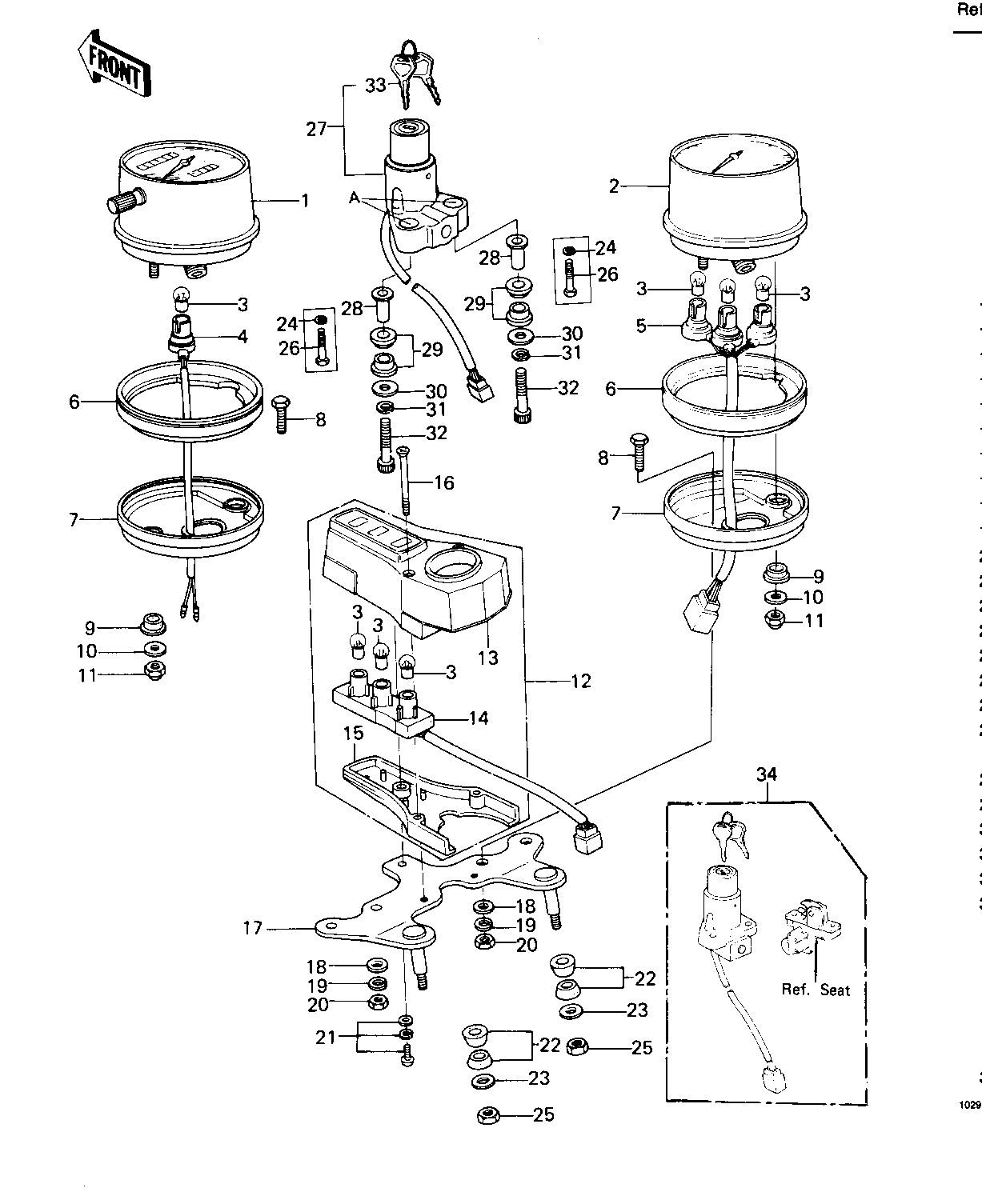

1979 KZ400-B2 - METERS/IGNITION SWITCH (KZ400-B1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPEEDOMETER ASSY,MPH 1 25006-061
SPEEDOMETER,ASSY,KPH (Canada) 1 25005-1020 CANADA
TACHOMETER ASSY 2 25015-1007
BULB 12V 3W 3 92069-018
SOCKET,SPEEDOMETER 4 23008-1006
SOCKET,TACHOMETER 5 23008-1004
SHOCK DAMPER 6 25019-031
COVER,METER 7 25012-025
BOLT,HEX HEAD,6X14 8 92003-204
DAMPER RUBBER-METER 9 25019-013
WASHER PLAIN 5MM 10 411B0500
NUT,5MM 11 92015-059
LAMP ASSY,PILOT 12 23016-1012
COVER,PILOT LAMP 13 25023-1005
SOCKET,PILOT LAMP 14 23008-1023
COVER,METER BRACKET 15 25024-008
SCREW,PAN HEAD 16 92012-005
BRACKET,METER 17 25008-051
WASHER PLAIN 6MM 18 411B0600
WASHER SPRING 6MM 19 461F0600
NUT 6MM 20 311B0600
SCREW,PAN WSP 4X12 21 92009-1015
DAMPER RUBBER,METER 22 92075-248
WASHER 6.5X22X1.6T 23 92022-237
WASHER SPRING 6MM 24 461F0600 USE FOR 27005-1002
NUT 6MM 25 311B0600
BOLT-UPSET,6X16 26 112G0616 USE FOR 27005-1002
SWITCH ASSY,IGNITION 27 27005-1031 F/NO. 077801-091635
SWITCH ASSY,IGNITION 27 27005-1033 F/NO. 091636-
COLLAR,IG SWITCH 28 92027-1135 USE FOR 27005-1007
DAMPER,IG SWITCH 29 92075-1119 USE FOR 27005-1007
WASHER,8.5X20X1.6 30 92022-1561 USE FOR 27005-1007
WASHER SPRING 8MM 31 461F0800 USE FOR 27005-1007
BOLT,ALLEN,8X45 32 120P0845 USE FOR 27005-1007
UNAVAILABLE IN PRICE BOOK 33 27008-1008-01
UNAVAILABLE IN PRICE BOOK 33 27008-1008-35
KEY,BLANK 33 27008-1028
KEY,BLANK 33 27008-1029
KEY,BLANK 33 27008-1034
KEY,BLANK 33 27008-1035
LOCK SET,KZ400B2 34 27004-5048 F/NO. 091636-
