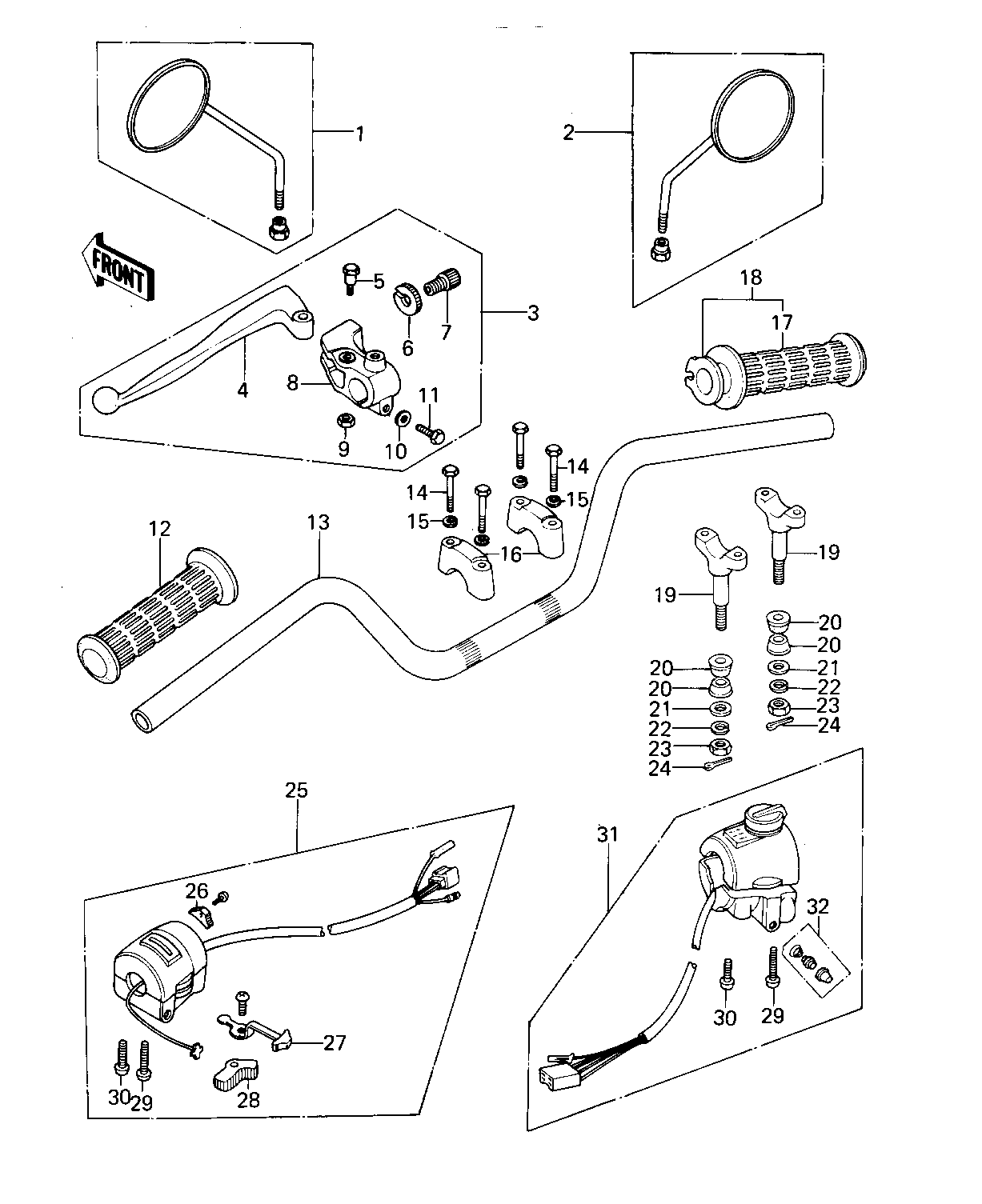

1979 KZ400-B2 - HANDLEBAR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
REAR VIEW MIRROR,L.H. 1 56001-1015
REAR VIEW MIRROR,R.H. 2 56001-1016 OPTION
LEVER ASSY,CLUTCH 3 46076-052
LEVER,CLUTCH 4 46092-023
BOLT,HEX HEAD 5 92007-047
NUT,CABLE ADUST NUT 6 46056-007
SCREW CABLE ADJUST 7 46055-003
HOLDER,CLUTCH LEVER 8 46094-017
NUT 9 92019-008
WASHER PLAIN 6MM 10 410B0600
BOLT HEX HEAD 6X25 11 110N0625
RUBBER,L.H GRIP 12 46075-028
HANDLEBAR 13 46003-1019
BOLT 8X38 14 92001-1405
WASHER SPRING 8MM 15 461F0800
HOLDER-HANDLEBAR 16 46012-008
RUBBER,R.H GRIP 17 46061-018
GRIP ASSY,THROTTLE 18 46019-038
HOLDER-HANDLEBAR LOW 19 46012-010
DAMPER RUBBER HANDLE 20 92075-039
CAP HANDLEBAR HOLDER 21 46016-003
WASHER SPRING 10MM 22 461F1000
NUT,10MM 23 314B1000
PIN,SNAP 24 554A0800
HOUSING ASSY,CONT,L.H 25 46091-1079
KNOB,LIGHTING SW L.H 26 46044-013
KNOB,LIGHTING SW L.H 27 46043-005
BUTTON, HORN PUSH 28 46028-006
SCREW-PAN-CROS 29 220B0535
SCREW PAN HEAD 5X30 30 220B0530
HOUSING ASSY,R.H 31 46091-1039
SWITCH ASSY,HORN BUTN 32 27010-1009
