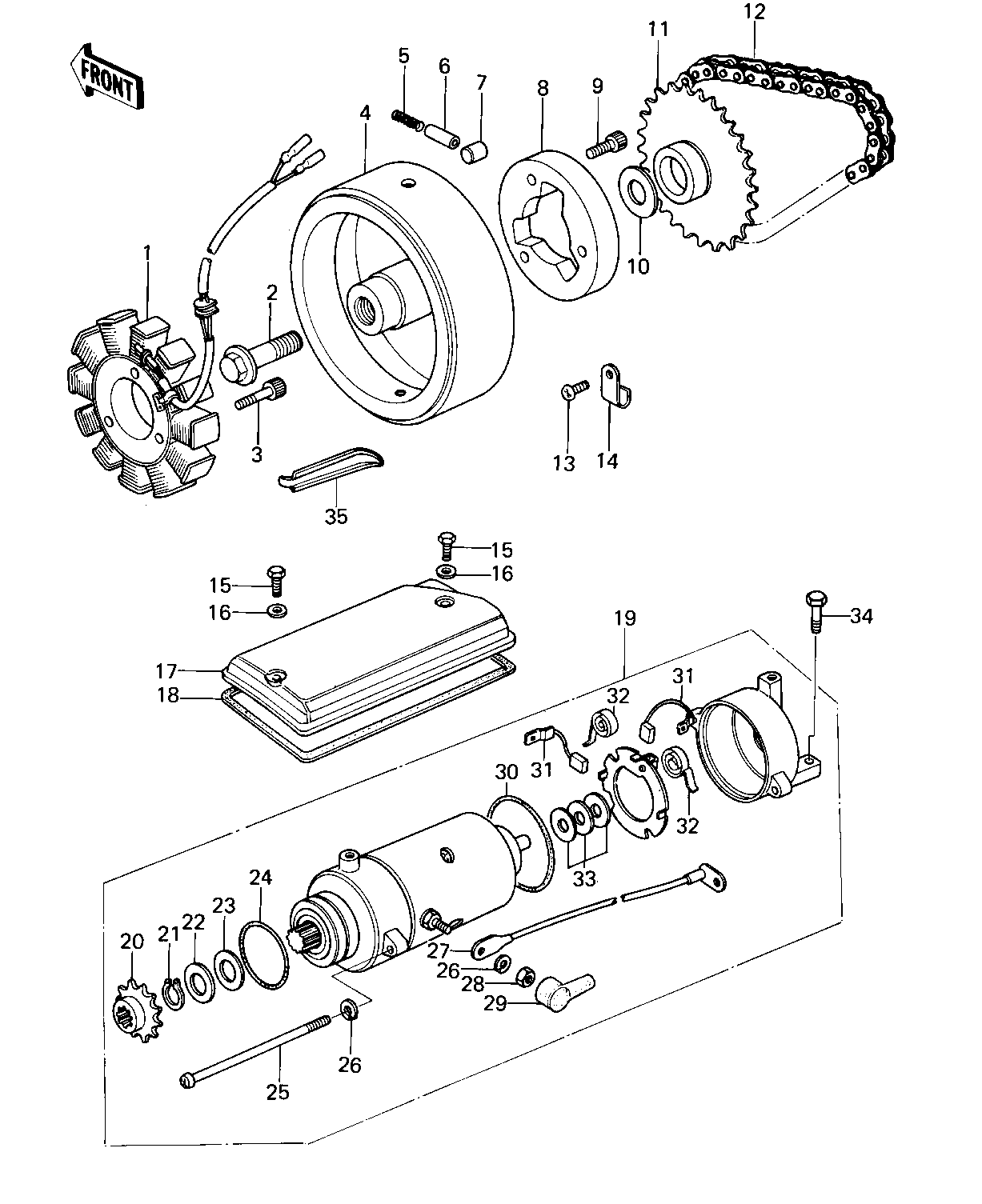

1979 KZ400-B2 - GENERATOR/STARTER MOTOR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STATOR.ASSY,GENERATER 1 21003-1009
BOLT,10X40 2 92002-1303
BOLT,ALLEN,6X28 3 120P0628
FLYWHEEL 4 21050-1004
SPRING 5 92081-110
PIN 6 92043-087
ROLLER 7 92122-004
BOLT 8 120P0816
BOLT 9 120P0816
SPACER,25X40X1 10 92026-1004
SPROCKET,ONWAY CLUTCH 11 12046-1030
CHAIN,DYNAMO 12 92057-1009
SCREW PAN HEAD 6X10 13 220B0610
CLAMP,WIRING HARNESS 14 21126-008
BOLT (6X10) 15 110R0610
WASHER,PLAIN,6MM 16 410D0600
COVER,STARTER 17 14025-1284
GASKET,STARTER COVER 18 11009-1006
MOTOR ASSY,STARTER 19 21163-1011
SPROCKET STARTNG MOT 20 21053-002
CIRCLIP 14MM 21 480J1400
WASHER,PLAIN,14MM 22 21025-008
WASHER PLAIN 14MM 23 21025-009
"0" RING,42.8MM 24 21027-005
SCREW PAN HEAD 6X110 25 220B06110
WASHER SPRING 6MM 26 461F0600
WIRE STRTER MOT LEAD 27 26010-035
NUT 6MM 28 312B0600
CAP,STARTING MOTOR 29 21017-020
"0" RING,62MM 30 21027-006
BRUSH CARBON 31 21039-004
SPRING CARBON BRUSH 32 21040-004
WASHER,PLAIN,9MM 33 21025-007
BOLT-UPSET 34 112G0625
PLATE,LEAD CLAMP 35 13169-1008
