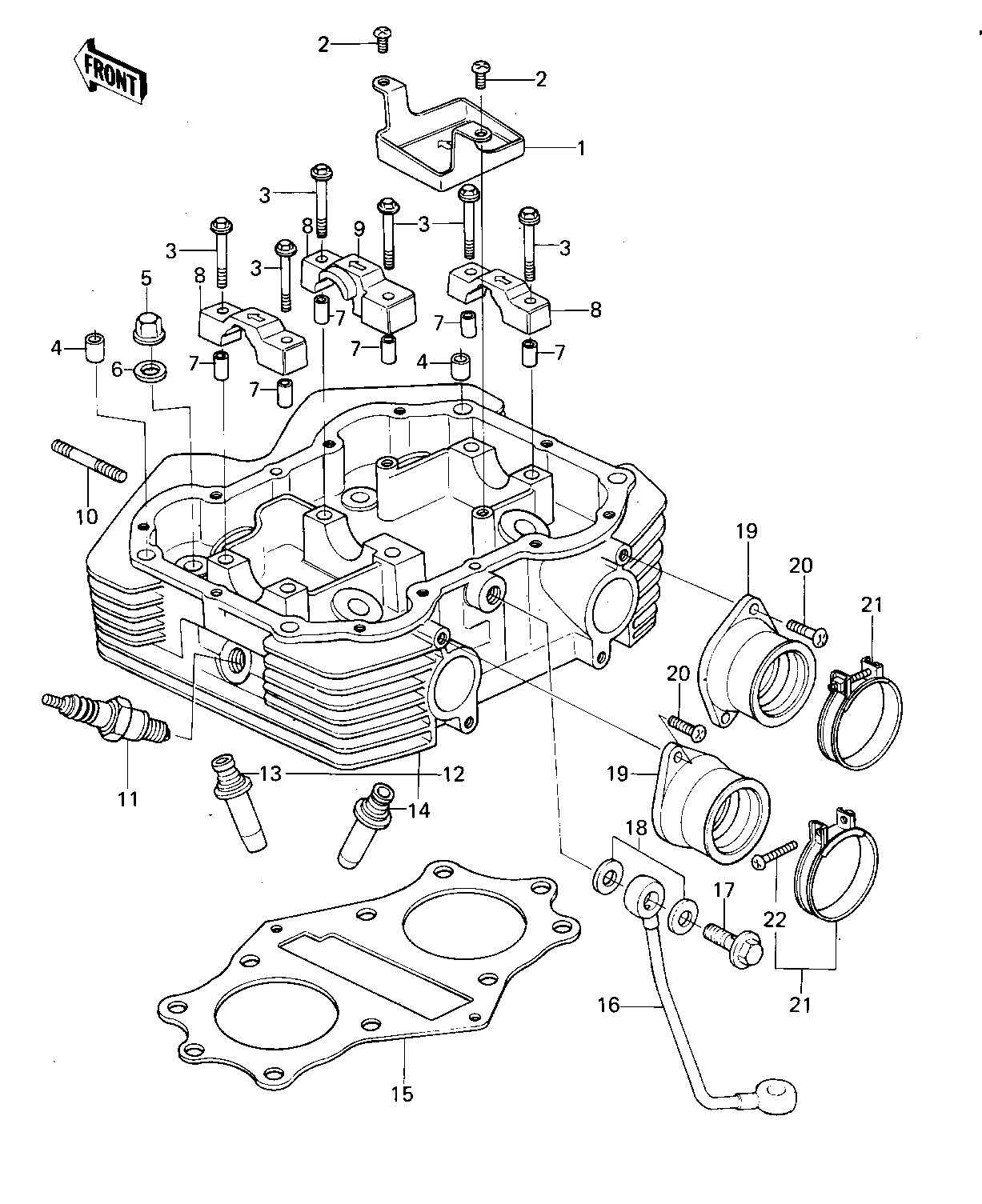

1979 KZ400-B2 - CYLINDER HEAD

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,CYLINDER HEAD OIL 1 11012-1027
SCREW PAN HEAD 6X10 2 220B0610
BOLT,HEX HEAD,6X38 3 92003-206
PIN,DOWEL,10X8.2X14 4 92043-1037
NUT,CYLINDER HEAD 5 92015-076
WASHER,10.5X22X1.6 6 92022-1005
PIN-DOWEL 7 92042-007
CAP,BRG,HEAD,L.H&R.H 8 14022-1002
CAP,BRG.HEAD,CENTER 9 14022-1003
STUD,6X46 10 92004-049
SPARK PLUG B7ES 11 B7ES
CYLINDER HEAD 12 11002-1003
GUIDE,EXHAUST VALVE 13 49002-1010
GUIDE,INLET VALVE 14 12013-003
GASKET,CYLINDER HEAD 15 11004-1008
PIPE,OIL 16 32032-1084
BOLT,BANJO,10X25 17 92001-1017
GASKET,10X14.5X1.5 18 11009-1105
HOLDER,CARBURETOR 19 16065-1002
SCREW PAN HEAD 6X18 20 220B0618
CLAMP,CARBURETOR 21 92037-1021
SCREW PAN HEAD 5X30 22 220B0530
SHAFT,ROCKER 1 12020-1001
GASKET,16X19.7X1.5 2 11009-1106
NUT,ROCKER ARM FITTNG 3 92016-061
SCREW,ADJUSTING 4 92009-1032
ARM,ROCKER 5 12016-1001
SPLIT KEEPER 6 12011-004
RETAINER,VALVE SPRING 7 12009-006
SPRING,OUTER VALVE 8 12007-013
SPRING,INNER VALVE 9 12007-014
OIL SEAL,RV37129.5 10 92049-016
SEAT,VLV INNER SPRING 11 12010-006
SEAT,VLV OUTER SPRING 12 12010-005
VALVE,EXHAUST 13 12005-1001
VALVE,INTAKE 14 12004-1001
