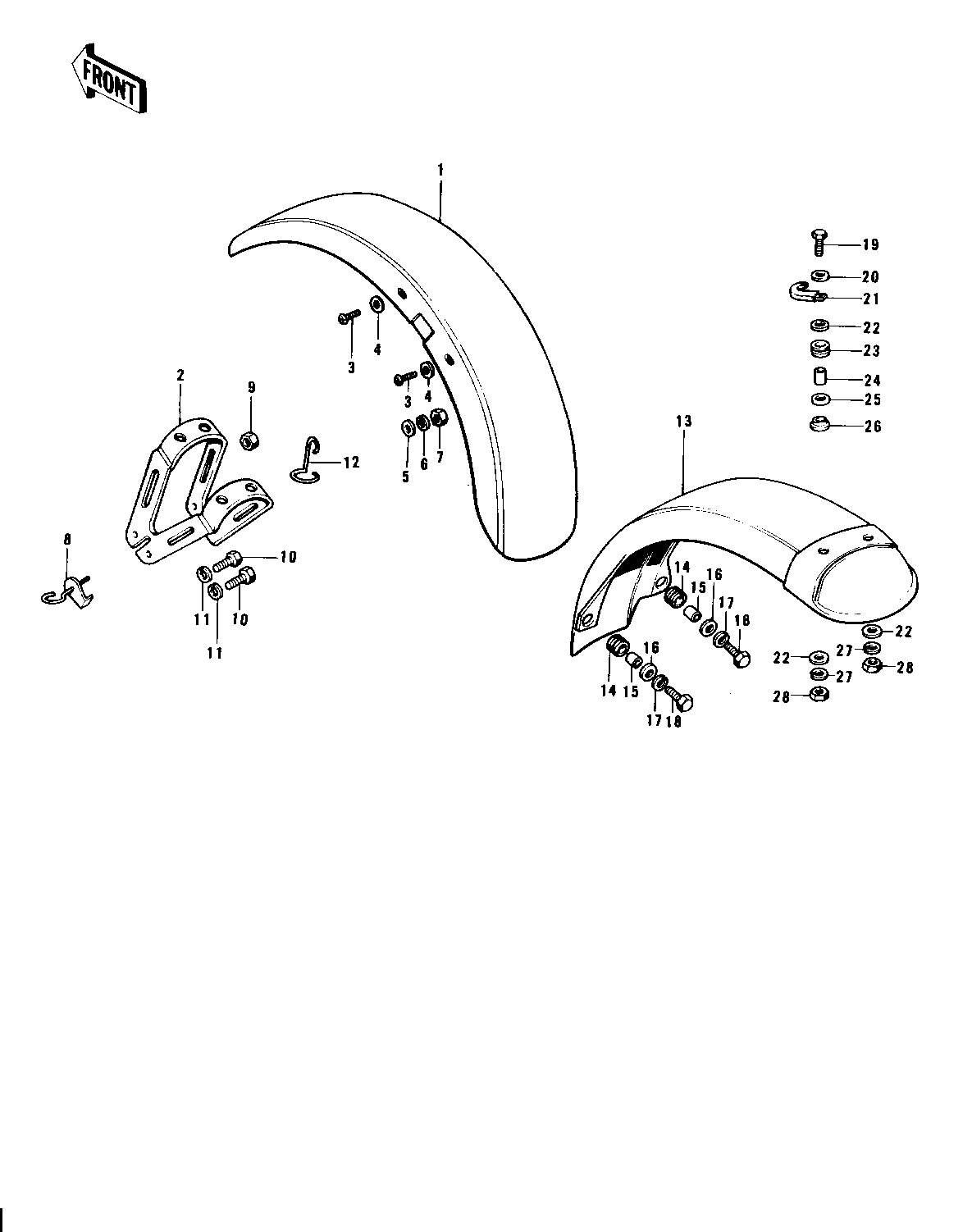

1974 Mach II - FENDERS ('73-'74 S3/S3-A)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FENDER-FR | 1 | 35004-084 | 1 | ||
| BRACE,FRONT FENDER | 2 | 35009-028 | 1 | ||
| SCREW PAN HEAD 6X14 | 3 | 220E0614 | 4 | ||
| WASHER-PLAIN,6MM | 4 | 411D0600 | 4 | ||
| WASHER PLAIN 6MM | 5 | 411B0600 | 4 | ||
| WASHER SPRING 6MM | 6 | 461F0600 | 4 | ||
| NUT 6MM | 7 | 311B0600 | 4 | ||
| CLAMP | 8 | 92037-097 | 1 | ||
| NUT-LOCK,5MM | 9 | 92019-014 | 1 | ||
| BOLT-SMALL-UPSET,8X16 | 10 | 115G0816 | 4 | ||
| WASHER SPRING 8MM | 11 | 461F0800 | 4 | ||
| CLAMP,CABLE | 12 | 92037-138 | 1 | ||
| FENDER-RR | 13 | 35022-099 | 1 | ||
| DAMPER RUBBER | 14 | 92075-105 | 2 | ||
| COLLAR | 15 | 92027-103 | 2 | ||
| WASHER 6.5X20X1.6T | 16 | 92022-125 | 2 | ||
| WASHER SPRING 6MM | 17 | 461F0600 | 2 | ||
| BOLT-UPSET,6X16 | 18 | 112G0616 | 2 | ||
| BOLT HEX HEAD 6X36 | 19 | 110N0636 | 2 | ||
| WASHER PLAIN 6MM | 20 | 411B0600 | 1 | ||
| CLAMP,HARNESS | 21 | 92037-113 | 1 | ||
| WASHER,PLAIN,7MM | 22 | 92022-228 | 4 | ||
| DAMPER RUBBER,RR FEND | 23 | 92075-121 | 2 | ||
| COLLAR,REAR FENDER | 24 | 92027-162 | 2 | ||
| WASHER,PLAIN,7MM | 25 | 92022-227 | 2 | ||
| DAMPER RUBBER,RR FEND | 26 | 92075-133 | 2 | ||
| WASHER SPRING 6MM | 27 | 461F0600 | 2 | ||
| NUT 6MM | 28 | 311B0600 | 2 |
