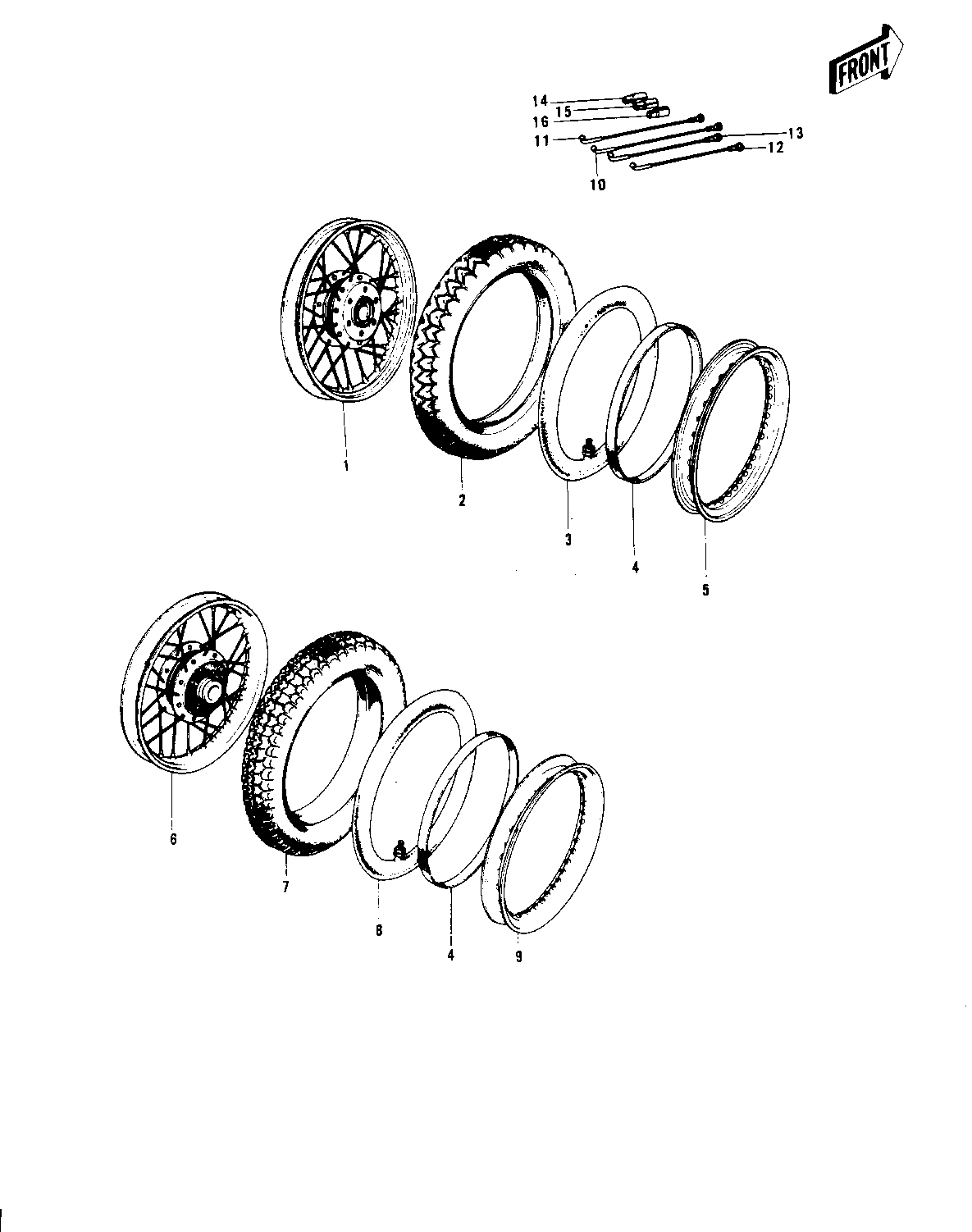

1974 Mach II - WHEELS/TIRES ('74-'75 S3/S3-A)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WHEEL ASSY,FRONT | 1 | 41074-036 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 2 | 41021-026 | 1 | ||
| TUBE 300/325/360-18 | 3 | 41022-028 | 1 | ||
| BAND,RIM,4.00/5.10-18 | 4 | 41023-1006 | 2 | ||
| BAND,RIM,4.00/5.10-18 | 4 | 41023-1006 | 2 | ||
| RIM.1.85BX18 | 5 | 41025-075 | 1 | ||
| WHEEL ASSY-REAR | 6 | 42048-017 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 7 | 41021-027 | 1 | S3 | |
| UNAVAILABLE IN PRICE BOOK | 7 | 41021-031 | 1 | S3-A | |
| TUBE 350/375/410-18 | 8 | 41022-031 | 1 | ||
| RIM,1.85BX18W | 9 | 41025-053 | 1 | ||
| SPOKE-ASY,FR INNER | 10 | 41027-054 | 20 | 102 X 174.5 MM | |
| SPOKE-ASY,FR OUTER | 11 | 41028-054 | 20 | 83 X 174 MM | |
| SPOKE-ASY,RR INNER | 12 | 41027-046 | 20 | 104 X 147 MM | |
| SPOKE-ASY,RR OUTER | 13 | 41028-045 | 20 | 85 X 146 MM | |
| WEIGHT,BALANCE,10G | 14 | 41075-1007 | AR | ||
| WEIGHT,BALANCE,10G | 14 | 41075-1007 | AR | ||
| WEIGHT,BALANCE,20G | 15 | 41075-1008 | AR | ||
| WEIGHT,BALANCE,20G | 15 | 41075-1008 | AR | ||
| WEIGHT,BALANCE,30G | 16 | 41075-1009 | AR |
