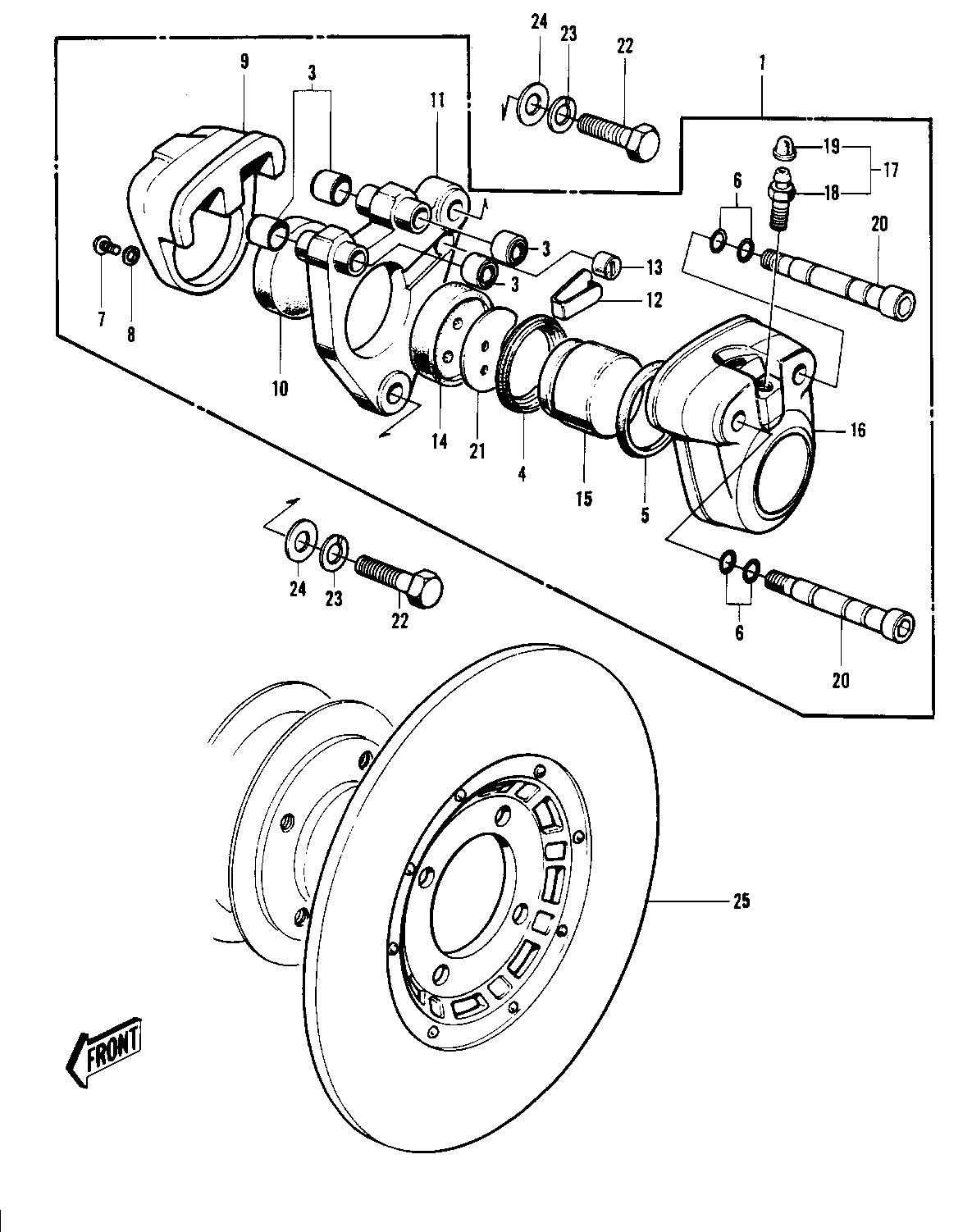

1974 Mach II - FRONT BRAKE ('74-'75 S3/S3-A)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CALIPER ASSY 1 43041-003 1 S3
CALIPER ASSY. 1 43041-007 1 S3-A
REPAIR SET,CALLIPER 2 43073-003 1 INCL. REF. 3-6
DUST SEAL-SHAFT 3 43052-002 4
DUST SEAL-PISTON 4 43054-002 1
RING-PISTON 5 43049-001 1
"0" RING,SHAFT 6 43053-001 4
SCREW PAN HEAD 6X12 7 220B0612 1
WASHER SPRING 6MM 8 461F0600 1
CALIPER B 9 43043-002 1
PAD B 10 43051-001 1
HOLDER-CALIPER 11 43044-003 1
STOPPER-PAD A 12 43046-001 1
BUSHING-RUBBER 13 43047-001 1
PAD A 14 43082-001 1
PISTON-CALIPER 15 43048-001 1
CALIPER A 16 43042-003 1
BLEEDER SET 17 43085-001 1
BREEDER 18 43056-003 1
CAP,BREEDER 19 43057-003 1
SHAFT 20 43045-002 2
SHIM 21 43076-001 1
BOLT 22 92007-032 2
WASHER,SPRING,10MM 23 461F1000 2
WASHER,PLAIN SMALL,10MM 24 410B1000 2
DISC PLATE,FRONT BRAK 25 41080-006 1
DISC PLATE,FRONT BRAK 25 41080-006 1
