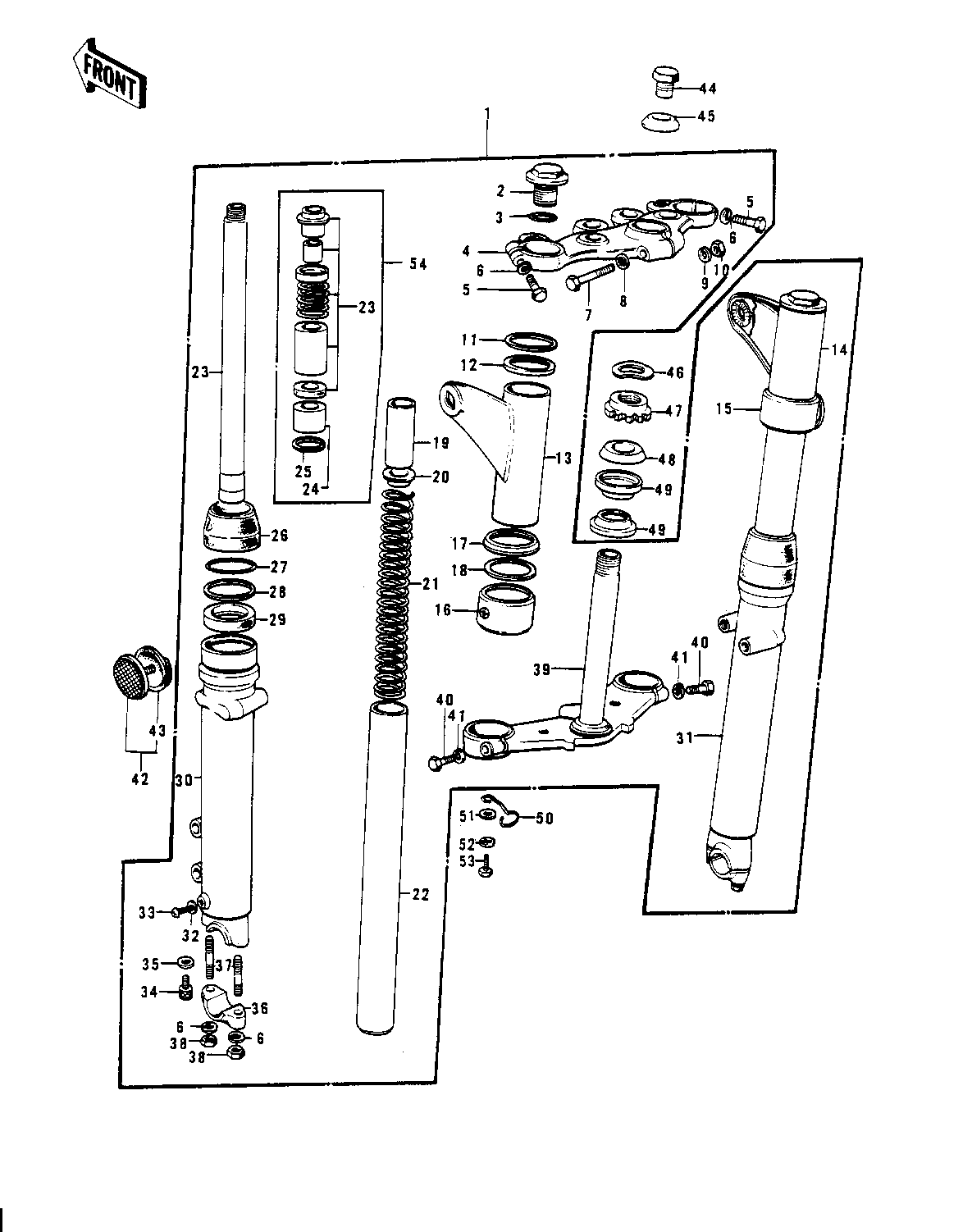

1974 Mach II - FRONT FORK ('74-'75 S3/S3-A)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-FRONT 1 44001-144 1 S3
FORK-FRONT 1 44001-144 1 S3 & S3-A
BOLT-FORK FITTING 2 44041-037 2
"O" RING,FORK TOP 3 92055-1012 2
HEAD-STEERING STEM 4 44039-051 1
BOLT-STEERING STEM HD 5 44041-044 2
WASHER SPRING 8MM 6 461F0800 6
BOLT-STEERING STEM HD 7 44041-042 1
WASHER LOCK 8MM 8 463H0800 1
WASHER PLAIN 8MM 9 410B0800 1
NUT,LOCK,8MM 10 92015-1124 1
NUT,LOCK,8MM 10 92015-1124 1
GASKET,FORK COVER 11 44045-039 2
WASHER,FORK COVER 12 44043-047 2
COVER-L.H FORK,BLACK 13 44033-053-21 1
COTER,L.H FORK 13 44033-067 1
COVER-R.H FORK,BLACK 14 44034-053-21 1
COVER,R.H FORK 14 44034-067 1
GUIDE-FORK COVER,R.H 15 44064-009 1
GUIDE-FORK COVER,L.H 16 44064-010 1
CAP,FORK COVER 17 44032-005 2
GASKET FORK COVER 18 44045-029 2
SPACER-FORK SP GUIDE 19 44028-026 2
GUIDE-FORK SPRING 20 44029-019 2
SPRING-FORK 21 44026-043 2
TUBE-FORK INNER 22 44013-038 2
CYLINDER-FORK 23 44023-005 2 NO LONGER AVAILABLE
CYLINDER-FORK 23 44022-026 2
CYLINDER-FORK 23 44023-005 2
PISTON FORK 24 44018-001 2
PISTON,FORK 24 44018-009 2 USE FOR 44023-005
CIRCLIP FORK PISTON 25 44044-008 2
CIRCLIP,FORK PISTON 25 44044-019 2 USE FOR 44023-005
DUST SHIELD-FORK 26 44010-019 2
CIRCLIP OIL SEAL FIT 27 44044-005 2
WASHER OIL SEAL FIT 28 44043-023 2
OIL SEAL,FORK 29 44009-020 2
TUBE,LH,FORK OUTER 30 44005-046 1
TUBE,RH,FORK OUTER 31 44006-044 1
GASKET FORK DRAIN PLG 32 44045-002 2
SCREW PAN HEAD 4X8 33 220B0408 2
BOLT-FORK CYLINDER 34 44041-040 2
GASKET,FORK CYLINDER 35 44045-057 2
HOLDER-FRONT AXLE 36 44063-006 2
STUD 8X30 37 172G0830 4
NUT,8MM 38 311B0800 4
STEM-STEERING 39 44037-058 1
BOLT HEX HEAD 10X32 40 113B1032 2
WASHER SPRING 10MM 41 461F1000 2
REFLECTOR,REFLEX,FRNT 42 28001-029 2 S3
REFLECTOR,REFLEX,FRNT 42 28001-029 2 S3-A
DAMPER RUBBER-REFLEX 43 28016-002 2
BOLT,STEERG STEM HEAD 44 92007-031 1
WASHER,STEERG STM HD 45 92022-230 1
WASHER,WAVE 46 46100-003 1
NUT STEERING STEM LCK 47 92090-007 1
CAP, STEERING STEM 48 46098-016 1
CONE STRNG STEM BERNG 49 92047-006 2
CLAMP-CABLE 50 92037-099 1
WASHER PLAIN 6MM 51 410B0600 1
WASHER SPRING 6MM 52 461F0600 1
BOLT,6X10 53 112G0610 1
CYLINDER-FORK 54 44023-005 2
