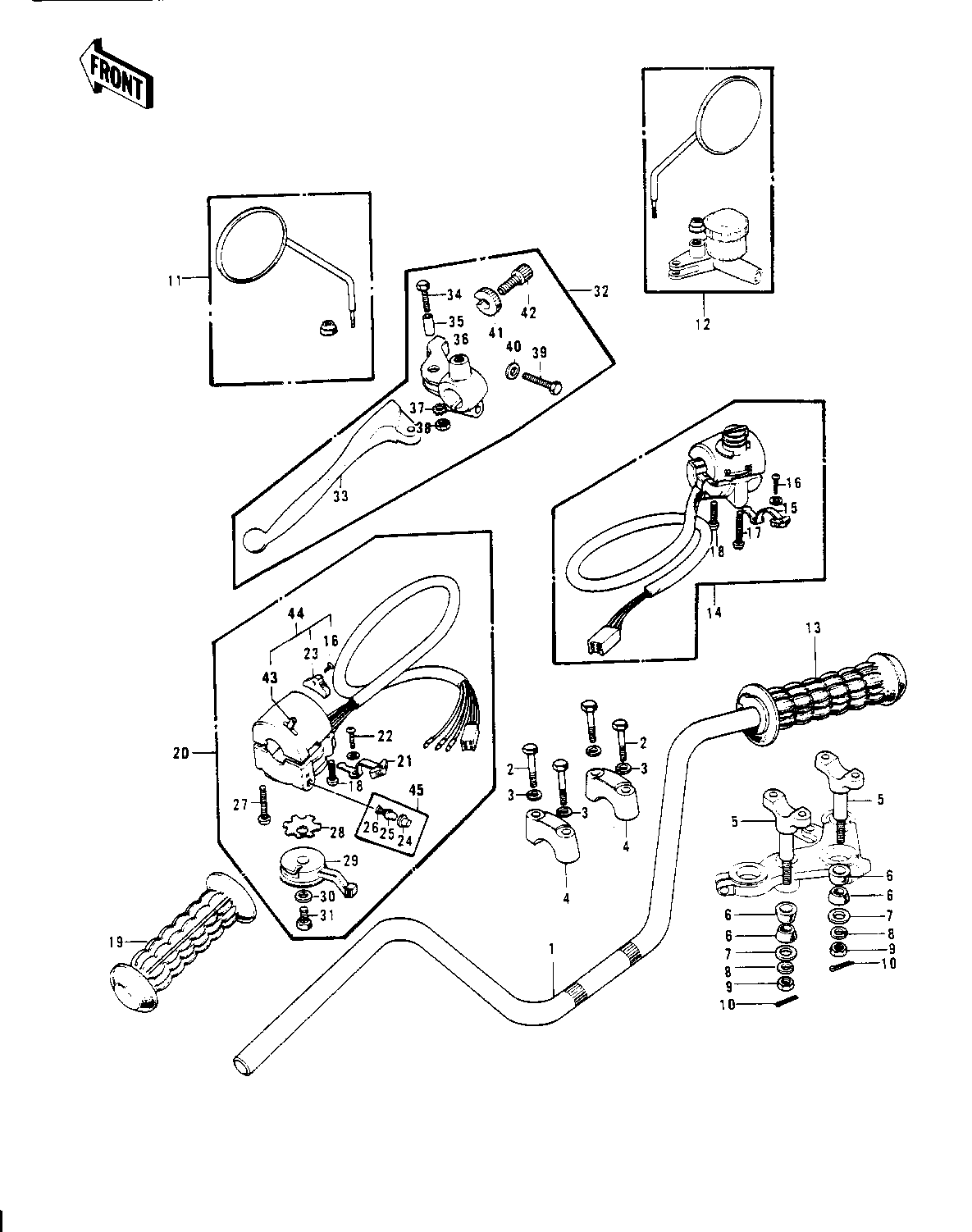

1974 Mach II - HANDLEBAR ('74-'75 S3/S3-A)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HANDLEBAR 1 46003-030 1
BOLT 8X38 2 92001-1405 4
BOLT 8X38 2 92001-1405 4
WASHER SPRING 8MM 3 461F0800 4
HOLDER-HANDLEBAR 4 46012-008 2
HOLDER-HANDLEBAR LOW 5 46012-010 2
DAMPER RUBBER HANDLE 6 92075-039 4
CAP HANDLEBAR HOLDER 7 46016-003 2
WASHER SPRING 10MM 8 461F1000 2
NUT,10MM 9 314B1000 2
PIN,SNAP 10 554A0800 2
REAR VIEW MIRROR,L.H 11 56003-009 1
REAR VIEW MIRROR,R.H 12 56002-020 (1 OPTION
GRIP ASSY-THROTTLE 13 46019-023 1
CASE ASSY,R.H 14 46132-007 1 S3
CASE ASSY,R.H 14 46132-017 1 S3-A
KNOB,LIGHING SWITCH 15 46043-006 1
SCREW PAN HEAD 3X5 16 220B0305A 2
SCREW-PAN-CROS 17 220B0535 1
SCREW PAN HEAD 5X22 18 220B0522 2
RUBBER-L.H GRIP 19 46075-017 1
CASE ASSY,L.H 20 46091-014 1 S3
CASE ASSY,L.H 20 46091-047 1 S3-A
KNOB,LIGHTING SW L.H 21 46043-005 1
SCREW CNTSNK HD 3X8 22 221B0308A 1
KNOB,LIGHTING SW L.H 23 46044-013 1
SWITCH ASSY,HORN BUTN 24 27010-1009 1 NO LONGER AVAILABLE USE 27010-
SWITCH ASSY,HORN BUTN 25 27010-1009 1 NO LONGER AVAILABLE USE 27010-
SWITCH ASSY,HORN BUTN 26 27010-1009 1 NO LONGER AVAILABLE USE 27010-
SCREW PAN HEAD 5X30 27 220B0530 1
WASHER LOCK 28 92095-012 1
LEVER,STARTER 29 46096-009 1
WASHER PLAIN 6MM 30 410B0600 1
BOLT-UPSET,6X8 31 112B0608 1
LEVER ASSY,CLUTCH 32 46076-044 1 S3
LEVER ASSY,CLUTCH 32 46076-044 1 S3
LEVER ASSY,CLUTCH 32 46076-025 1 S3-A
LEVER-CLUTCH 33 46092-015 1 S3
LEVER-CLUTCH 33 46092-015 1 S3-A
BOLT HEX HEAD 5X20 34 92007-020 1
COLLAR LEVER 35 46059-011 1
HOLDER-CLUTCH LEV,BLK 36 46094-011-21 1
WASHER LOCK 5MM 37 464H0500 1
NUT 5MM 38 312B0500 1
BOLT HEX HEAD 6X25 39 110N0625 1
WASHER PLAIN 6MM 40 410B0600 1
NUT-LOCK 41 46056-005 1
SCREW CABLE ADJUST 42 46055-003 1 S3
SCREW ADJUST 42 46055-006 1 S3-A
SWITCH ASSY,L.H 43 46089-016 1 S3
SWITCH,L.H 43 46089-014 1 S3-A
L.H GRIP SWITCH KIT 44 99990-530 1 INCLUDES REF. #'S 16,23,43
SWITCH ASSY,HORN BUTN 45 27010-1009 1 INCLUDES REF. #'S 24-26
