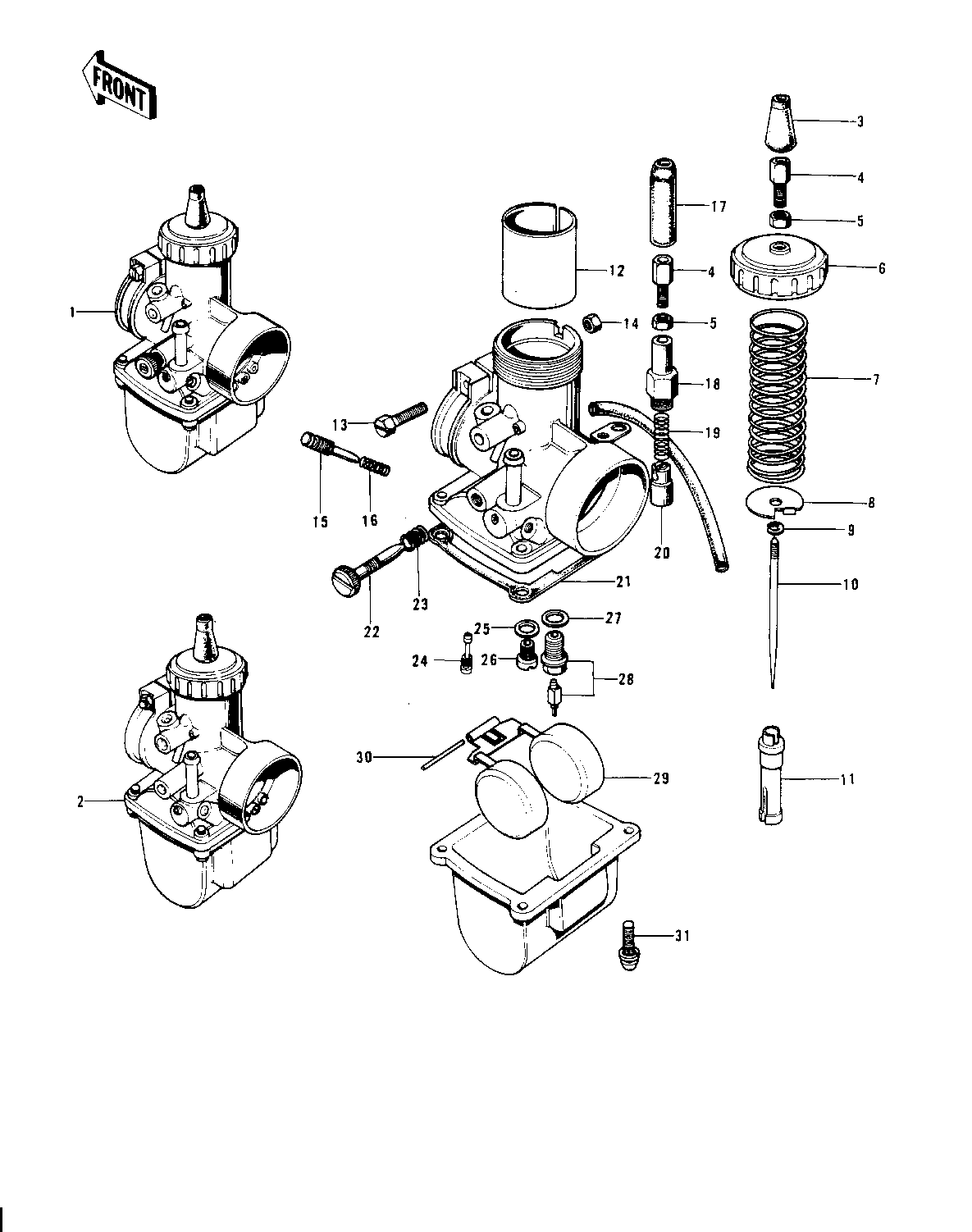

1974 Mach II - CARBURETORS ('74-'75 S3/S3-A)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CARBURETOR ASSY,L.H 1 16001-186 1 VM26SC
CARBURETOR ASY,R.H&CN 2 16001-187 2 VM26SC
CAP,CARBURETOR 3 16036-007 3
CABLE ADJUSTER 4 16002-004 6
NUT CABLE ADJUST LOCK 5 16003-004 6
CAP,MIXING CHAMBER 6 16004-025 3
SPRING,THROTTLE VALV 7 16006-024 3
SPRING SEAT,THRTL VL 8 16007-023 3
CIRCLIP 9 16008-010 3
JET NEEDLE 4EJ4 10 16009-047 3
NEEDLE JET,O-2 11 16017-079 3
VALVE,THROTTLE CA2.0 12 16025-071 1
VALVE,THROTTLE CA2.0 12 16025-072 2
SCREW CLAMP 13 16010-004 3
NUT 6MM 14 311B0600 3
SCREW 15 16014-006 3
SPRING-THR STOP SCREW 16 16022-007 3
SPRING-THR STOP SCREW 16 16022-007 3
CAP CABLE ADJUST RUBB 17 16036-005 3
CAP STARTER PLUNGER 18 16012-008 3
SPRING-PLUNGER 19 16013-003 3
PLUNGER-ENRICHNER 20 16016-002 3
GASKET FLOAT CHAMBER 21 16019-013 3
SCREW-THROTTLE STOP 22 16021-013 3
SPRING THR STOP SCREW 23 16022-005 3
JET-PILOT NO 20 24 92064-021 3
JET-PILOT NO.22 24 92064-040 (3 OPTION
WASHER MAIN JET 25 16034-001 3
MAIN JET NO 85R 26 92063-093 3
MAIN JET, #A80 26 92063-1030 (3 OPTION
MAIN JET NO 82.5R 26 92063-124 (3 OPTION
MAIN JET NO 87.5R 26 92063-094 (3 OPTION
MAIN JET,#A90R 26 92063-1029 (3 OPTION
WASHER FLOAT VLV SEAT 27 16029-004 3
FLOAT VALVE ASSY 28 16030-005 3
FLOAT 29 16031-016 3
FLOAT PIN 30 16032-003 3
SCREW FLOAT CHAMBER 31 16033-009 12
