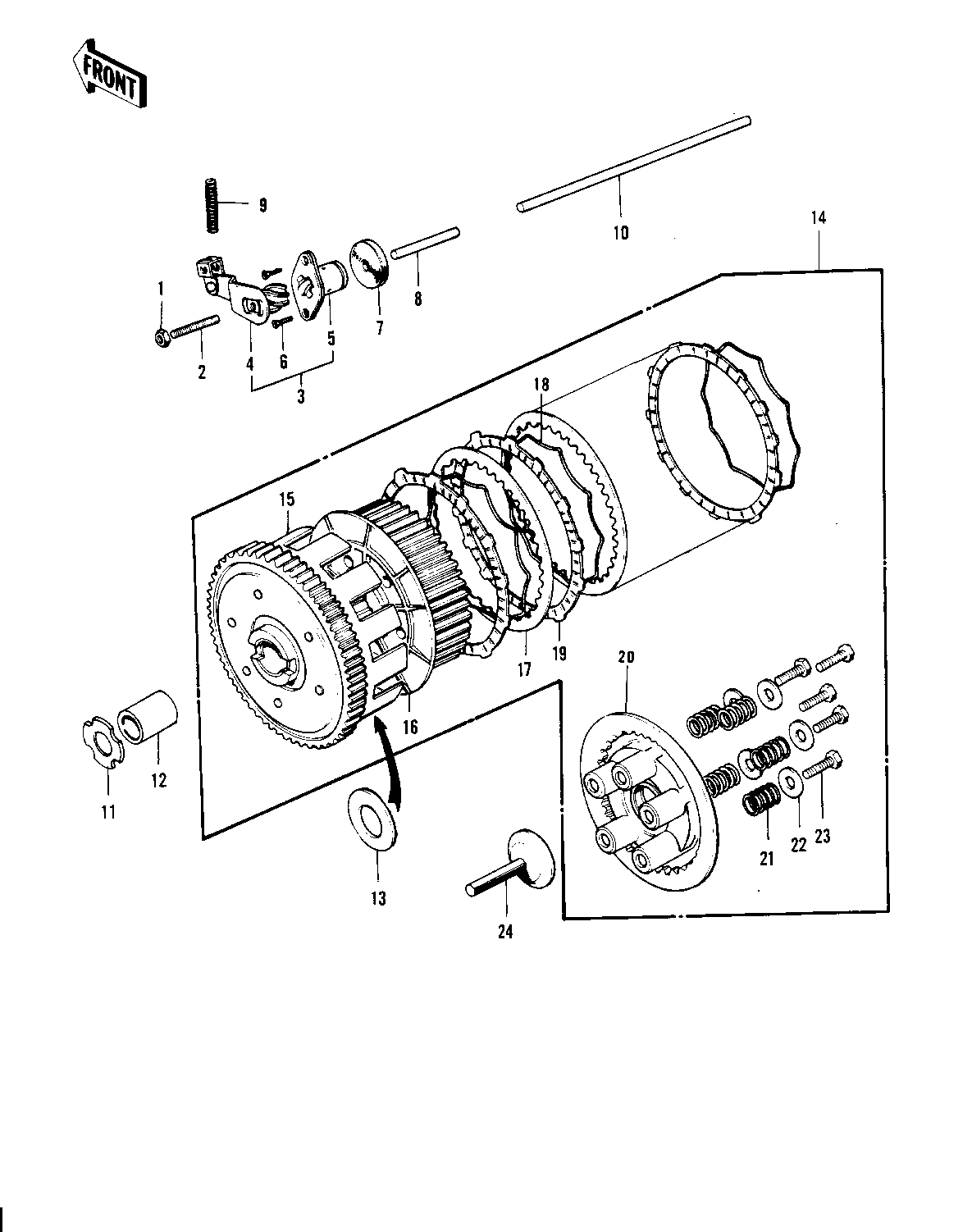

1974 Mach II - CLUTCH ('74-'75 S3/S3-A)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| NUT 6MM | 1 | 311B0600 | 1 | ||
| SCREW SLOTTED | 2 | 291Z0625 | 1 | ||
| RELEASE ASSY,CLUTCH | 3 | 13231-010 | 1 | ||
| INNER,CLUTCH RELEASE | 4 | 13102-017 | 1 | ||
| OUTER,CLUTCH RELEASE | 5 | 13118-008 | 1 | ||
| SCREW CNTSNK HD 6X16 | 6 | 221B0616 | 2 | ||
| OIL SEAL TC7297 | 7 | 92050-040 | 1 | ||
| ROD CLUTCH PUSH SHORT | 8 | 13116-010 | 1 | ||
| SPRING-CLUTCH RELEASE | 9 | 92081-096 | 1 | ||
| ROD-CLUTCH PUSH,LONG | 10 | 13116-019 | 1 | ||
| WASHER THRUST | 11 | 92022-119 | 1 | ||
| BUSH CLUTCH | 12 | 92028-045 | 1 | ||
| WASHER-PLAIN,20MM | 13 | 92022-189 | 1 | ||
| CLUTCH-ASSY | 14 | 13081-1070 | 1 | WHN EXH USE 13081-1023 | |
| CLUTCH-ASSY | 14 | 13081-1070 | 1 | WHN EXH USE 13081-1070 | |
| CLUTCH-ASSY | 14 | 13081-1070 | 1 | ||
| HOUSING-COMP-CLUTCH | 15 | 13095-1040 | 1 | WHN EXH USE 13095-1040 | |
| HOUSING-COMP-CLUTCH | 15 | 13095-1040 | 1 | ||
| HUB,CLUTCH | 16 | 13087-036 | 1 | ||
| PLATE CLUTCH STEEL | 17 | 13089-003 | 6 | ||
| RING-CLUTCH STEEL | 18 | 13229-002 | 7 | ||
| PLATE-FRICTION | 19 | 13088-1015 | 7 | ||
| PLATE-CLUTCH SPRING | 20 | 13187-004 | 1 | ||
| SPRING-CLUTCH | 21 | 92081-095 | 5 | ||
| WASHER-PLAIN,5MM | 22 | 92022-167 | 5 | ||
| BOLT,5X18 | 23 | 92003-078 | 5 | ||
| PUSHER-CLTCH SPRG PLT | 24 | 13116-016 | 1 |
