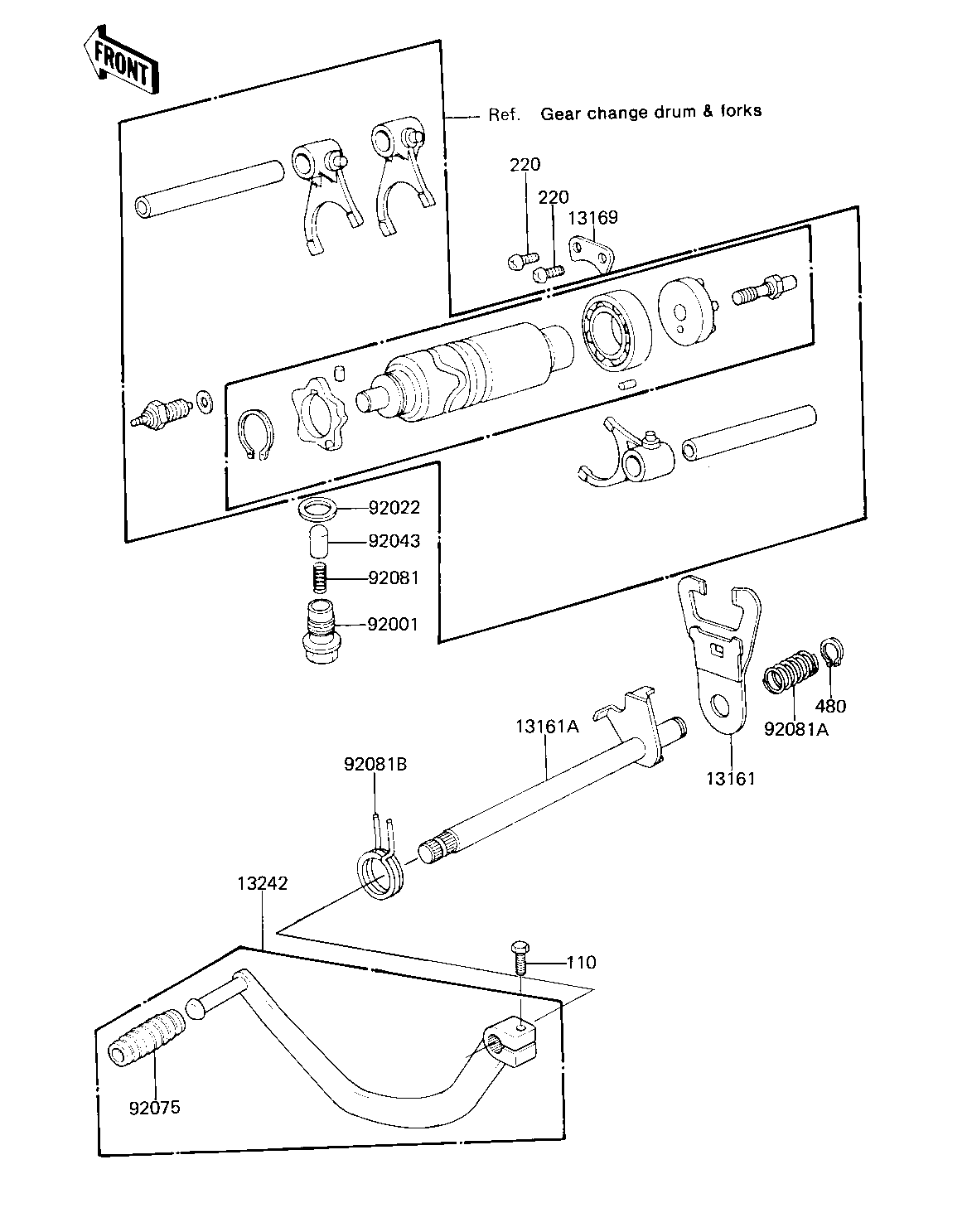

1981 CSR - GEAR CHANGE MECHANISM ('81 D2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LEVER ASSY,GEAR SHIFT | 13161 | 13161-044 | 1 | ||
| LEVER ASSY,GEAR SHIFT | 13161A | 13161-1013 | 1 | ||
| PLATE,GEAR CHANGE | 13169 | 13169-014 | 1 | ||
| LEVER ASSY,GEAR SHIFT | 13242 | 13242-1020 | 1 | ||
| BOLT,NEUTRAL POSITION | 92001 | 92001-182 | 1 | ||
| WASHER,PLAIN | 92022 | 92022-324 | 1 | ||
| PIN,NEUTRAL POSITIONG | 92043 | 92043-131 | 1 | ||
| DAMPER,CHANGE PEDAL | 92075 | 92160-1036 | 1 | ||
| SPRING | 92081 | 92081-112 | 1 | ||
| SPRING,COIL | 92081A | 92081-149 | 1 | ||
| SPRING,CHG PEDL RTRN | 92081B | 92083-028 | 1 | ||
| BOLT-UPSET,6X20 | 110 | 112G0620 | 1 | ||
| SCREW PAN HEAD 6X14 | 220 | 220B0614 | 2 | ||
| CIRCLIP,13MM | 480 | 480J1300 | 1 |
| LEVER ASSY,GEAR SHIFT | |
| REF # | 13161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER ASSY,GEAR SHIFT | |
| REF # | 13161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,GEAR CHANGE | |
| REF # | 13169 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER ASSY,GEAR SHIFT | |
| REF # | 13242 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,NEUTRAL POSITION | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,NEUTRAL POSITIONG | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,CHANGE PEDAL | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,COIL | |
| REF # | 92081A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,CHG PEDL RTRN | |
| REF # | 92081B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X20 | |
| REF # | 110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X14 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,13MM | |
| REF # | 480 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
