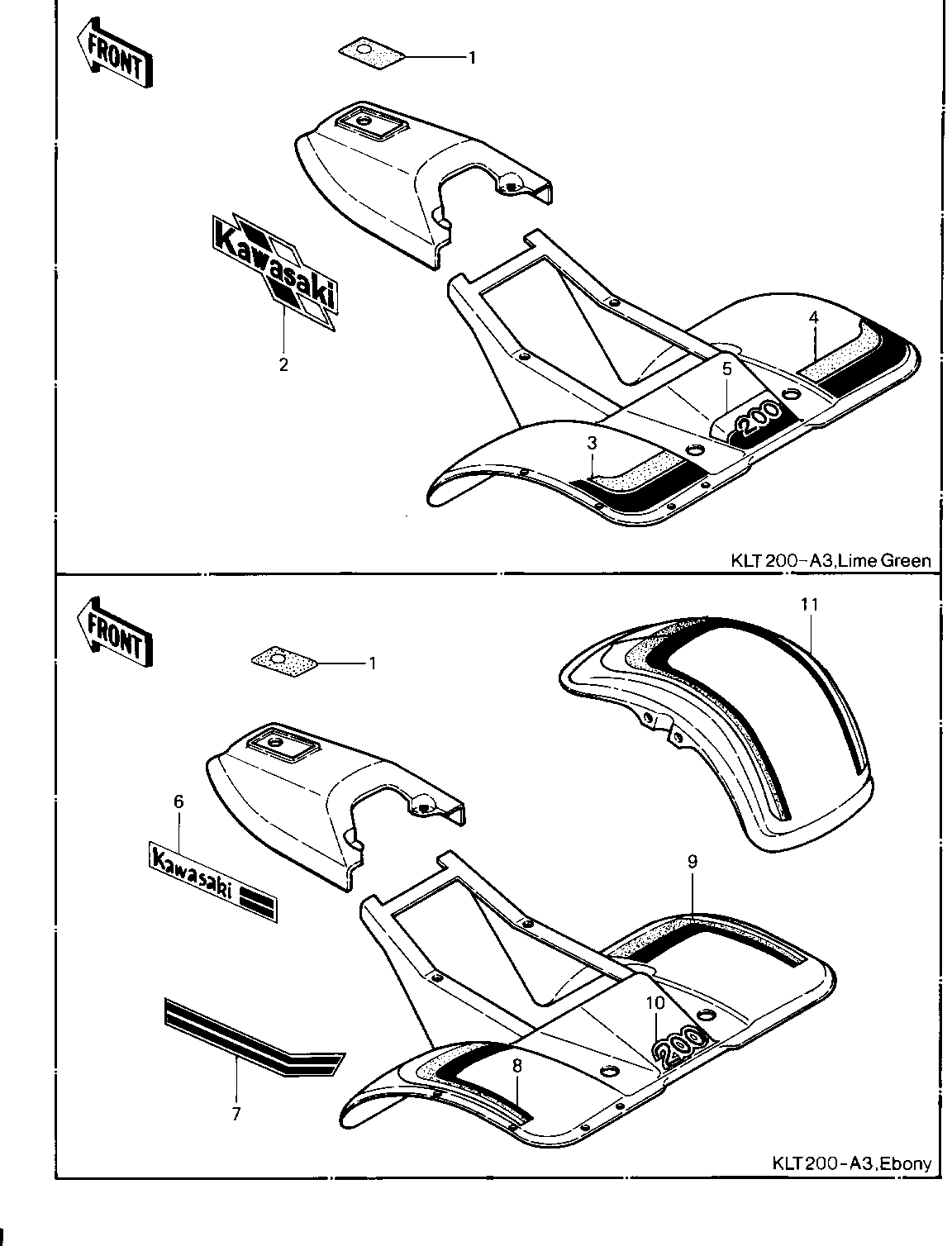

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL-IGNITION PLATE | 1 | 56030-4001 | 1 | ||
| EMBLEM-"KAWASAKI"-LH | 2 | 56014-4015 | 1 | LIME GREEN | |
| EMBLEM-"KAWASAKI"-RH | 2 | 56014-4016 | 1 | LIME GREEN | |
| PATTERN-FNDR-REAR,LH | 3 | 56027-4061 | 1 | LIME GREEN | |
| PATTERN-FNDR-REAR,RH | 4 | 56027-4062 | 1 | LIME GREEN | |
| PATTERN-FNDR-REAR,200 | 5 | 56027-4063 | 1 | LIME GREEN | |
| EMBLEM-"KAWASAKI" LH | 6 | 56014-4019 | 1 | EBONY | |
| EMBLEM-"KAWASAKI" RH | 6 | 56014-4018 | 1 | EBONY | |
| PATTERN-SIDE PANEL,LH | 7 | 56027-4065 | 1 | EBONY | |
| UNAVAILABLE IN PRICE BOOK | 7 | 58027-4064 | 1 | EBONY | |
| PATTERN-REAR FNDR,LH | 8 | 56027-4067 | 1 | EBONY | |
| UNAVAILABLE IN PRICE BOOK | 9 | 58027-4066 | 1 | EBONY | |
| UNAVAILABLE IN PRICE BOOK | 10 | 58018-4008 | 1 | EBONY | |
| UNAVAILABLE IN PRICE BOOK | 11 | 58027-4068 | 1 | EBONY |
