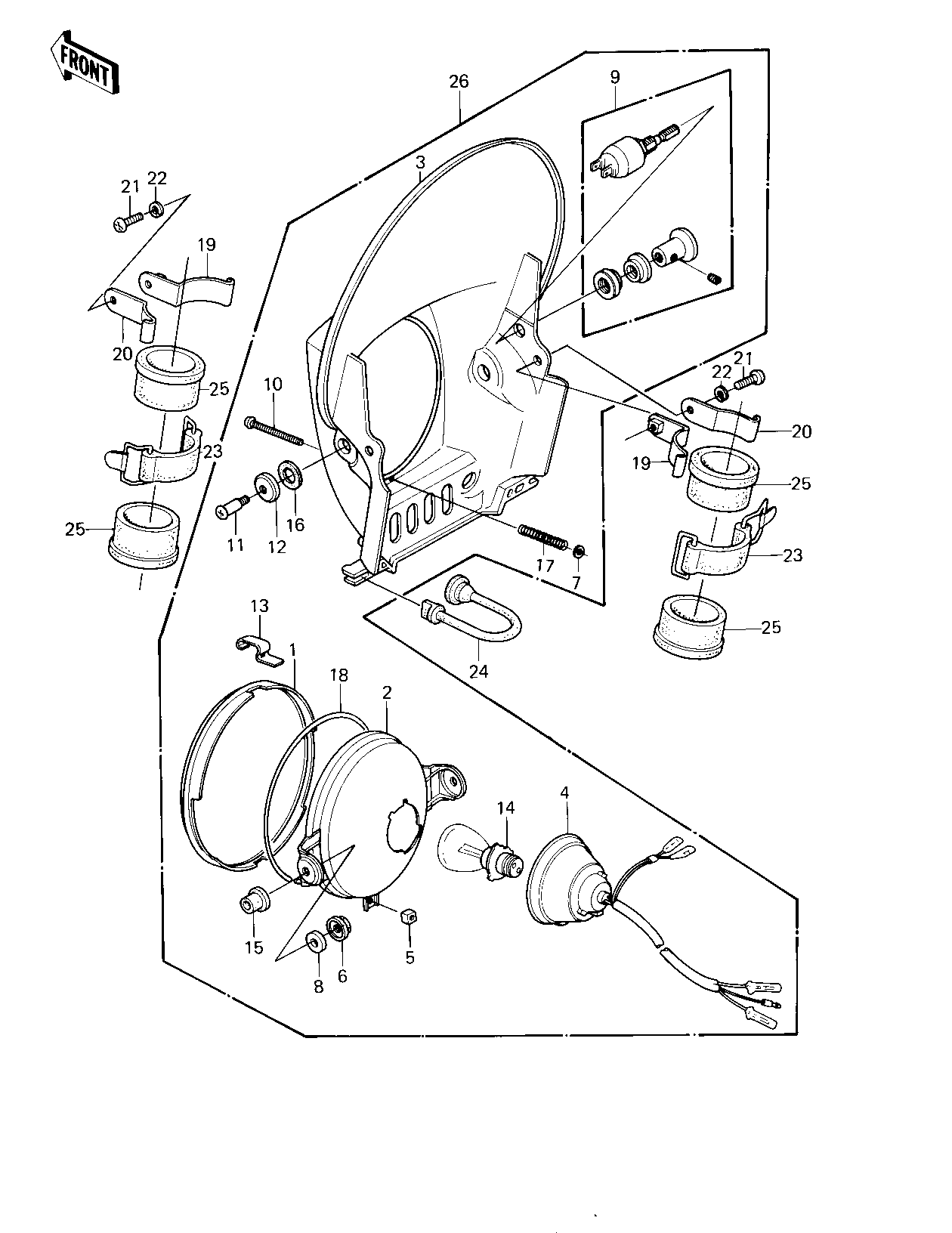

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,HEAD LAMP | 1 | 14025-4002 | 1 | ||
| LAMP,HEAD | 2 | 23004-4001 | 1 | ||
| BODY-COMP-HEAD LAMP, | 3 | 23005-5002-7F | 1 | ||
| SOCKET,HEAD LAMP | 4 | 23008-4001 | 1 | ||
| NUT,4MM | 5 | 23020-018 | 1 | ||
| NUT,HEAD LAMP RIM FI | 6 | 23020-023 | 2 | ||
| WASHER | 7 | 23021-004 | 1 | ||
| WASHER-PLAIN,5MM | 8 | 23021-012 | 2 | ||
| SWITCH,HEAD LAMP | 9 | 27004-4001 | 1 | ||
| SCREW,ADJUSTING,4X43 | 10 | 92009-4002 | 1 | ||
| SCREW,HEAD LAMP | 11 | 92009-4003 | 2 | ||
| WASHER,HEAD LAMP | 12 | 92022-4005 | 2 | ||
| CLAMP,HEAD LAMP | 13 | 92037-4001 | 3 | ||
| BULB,6V 35/25W | 14 | 92069-4001 | 1 | ||
| DAMPER,HEAD LAMP | 15 | 92075-4009 | 2 | ||
| DAMPER,HEAD LAMP | 16 | 92075-4010 | 2 | ||
| SPRING,FOCUS ADJUSTN | 17 | 92081-4003 | 1 | ||
| SEAL,HEAD LAMP | 18 | 92093-4001 | 1 | ||
| BRACKET,HEAD LMP PFI | 19 | 11034-1688 | 2 | ||
| BRACKET,HEAD LMP FIT | 20 | 11034-1693 | 2 | ||
| SCREW PAN HEAD 6X16 | 21 | 220B0616 | 2 | ||
| WASHER SPRING 6MM | 22 | 461F0600 | 2 | ||
| BAND,FUEL TANK | 23 | 92072-076 | 2 | ||
| BAND,HEAD LAMP | 24 | 92072-077 | 2 | ||
| DAMPER,HEAD LMP FITT | 25 | 92075-1236 | 4 | ||
| HEAD LAMP ASSY | 26 | 23001-4001 | 1 |
