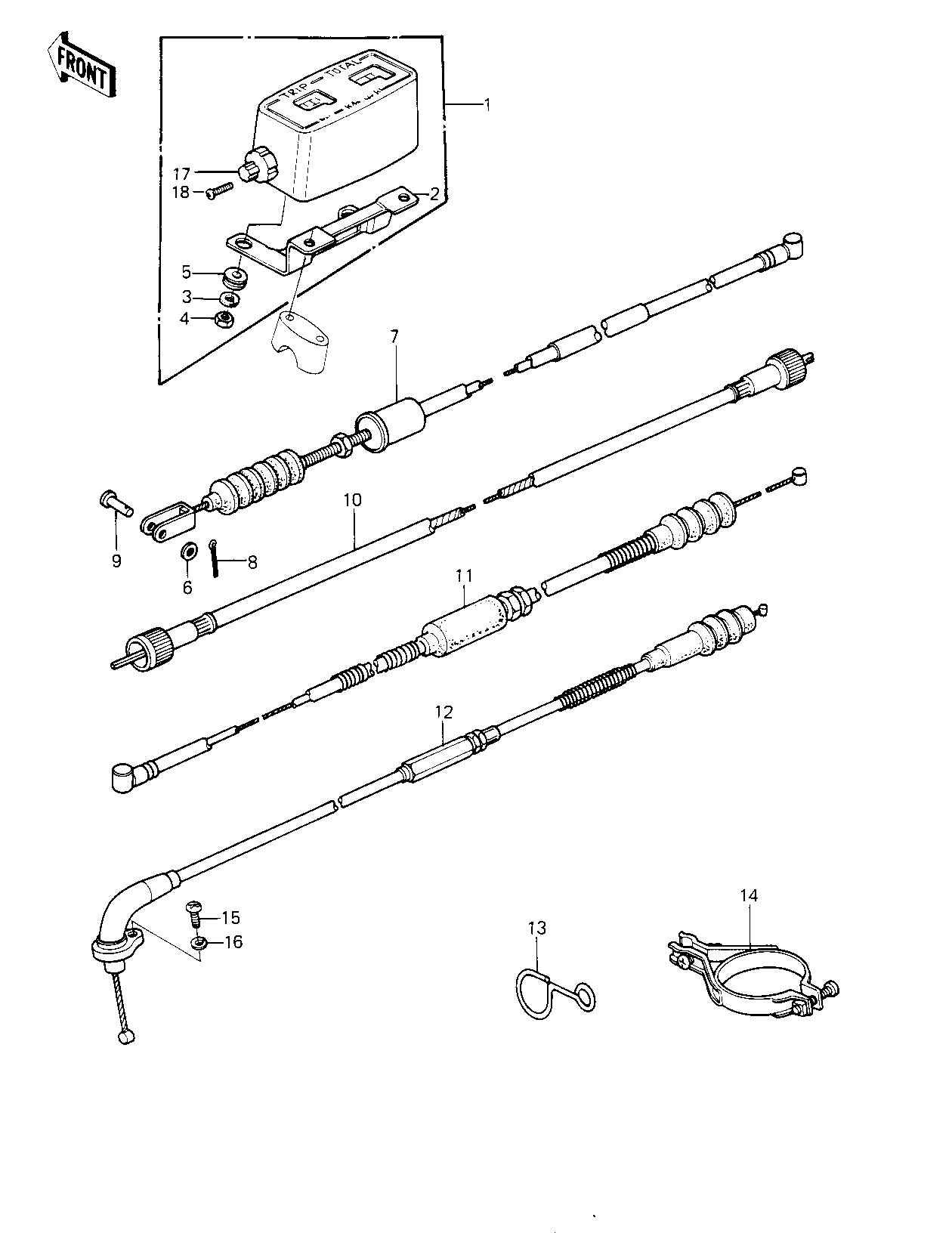

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| METER ASSY | 1 | 25001-1099 | 1 | ||
| METER ASSY,KPH (Canada) | 1 | 25001-1103 | 1 | ||
| BRACKET,METER | 2 | 11034-1574 | 1 | ||
| WASHER,5.2X16X16X1.2 | 3 | 25009-004 | 2 | ||
| NUT-CAP,5MM | 4 | 322N0500 | 2 | ||
| DAMPER RUBBER,METER | 5 | 92075-1209 | 2 | ||
| WASHER PLAIN 6MM | 6 | 410B0600 | 1 | ||
| CABLE,FRONT BRAKE | 7 | 54005-1020 | 1 | ||
| PIN, COTTER, 2.0X15 | 8 | 550D2015 | 1 | ||
| PIN-BRAKE ROD FITTING | 9 | 92043-064 | 1 | ||
| CABLE,SPEEDOMETER | 10 | 54001-1020 | 1 | ||
| CABLE,CLUTCH | 11 | 54011-1068 | 1 | ||
| CABLE,THROTTLE | 12 | 54012-1059 | 1 | ||
| CLAM,CABLE | 13 | 92037-1064 | 1 | ||
| CLAMP,CABLE | 14 | 92037-1072 | 1 | ||
| SCREW PAN HEAD 5X10 | 15 | 220B0510 | 1 | ||
| WASHER SPRING 5MM | 16 | 461F0500 | 1 | ||
| KNOB-METER TRIP RESE | 17 | 92077-1013 | 1 | ||
| SCREW-2X6 | 18 | 92009-1159 | 1 |
