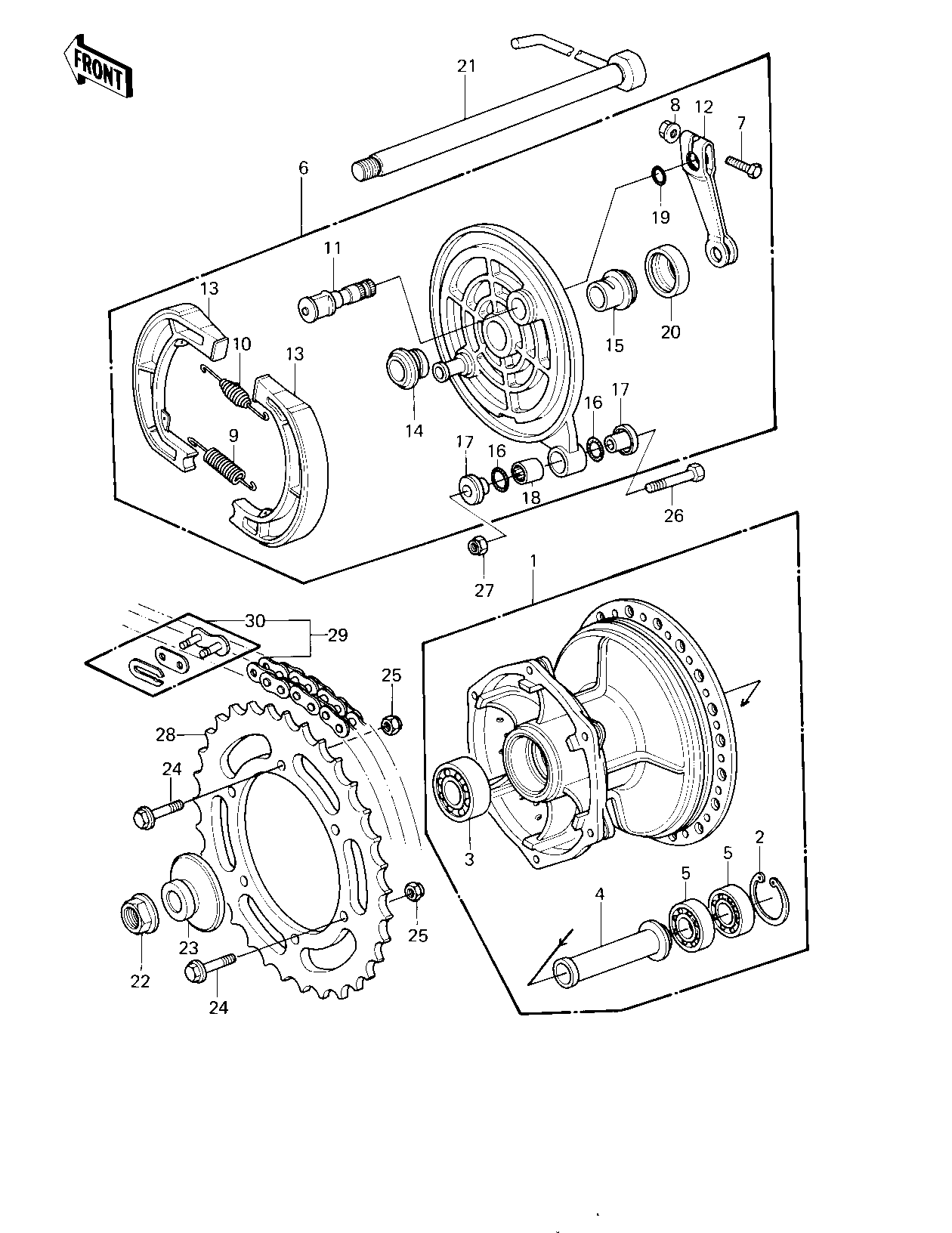

1980 KDX175 - REAR HUB/BRAKE/CHAIN ('80 A1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DRUM-ASSY,RR BRK 1 41034-1017 1
CIRCLIP,35MM 2 481J3500 1
BEARING,BALL,*6004UU 3 601B6004UU 1
COLLAR,REAR BRAKE 4 92027-1207 1
BEARING-BALL,#6003UC 5 601B6003U 2
PANEL-ASY,RR BRK 6 41035-1031 1
BOLT-UPSET 7 112G0630 1
NUT-6MM 8 92015-1078 1
SPRING,BRAKE SHOE 9 92081-1766 1
SPRING,BRAKE SHOE 10 92081-1550 1
CAM SHAFT,RR BRAKE 11 41050-1017 1
LEVER,FR BRAKE CAM 12 41053-1019 1
SHOE,BRAKE 13 42019-010 2
SLEEVE,REAR BRAKE 14 42036-1009 1
SLEEVE,REAR PANEL,R. 15 42036-1035 1
"O" RING 16 670B2011 2
COLLAR 17 92027-1040 2
BEARING,NEEDLE 18 92046-1009 1
"O" RING,12MM 19 670B2012 1
OIL SEAL 20 92093-1004 1
AXLE,REAR 21 41068-1043 1
NUT,16M/M 22 92015-1015 1
COLLAR,REAR AXLE 23 92027-1206 1
BOLT,HEX HEAD,8X32 24 92001-1040 6
NUT,LOCK,8MM 25 92015-1124 6
BOLT,FLANGED,8X35 26 92001-1577 1
NUT,LOCK,8MM 27 92015-1124 1
REAR SPROCKET,52T 28 42041-1044 1
REAR SPROCKET,50T 28 42041-1043 1 OPTION
REAR SPROCKET,47T 28 42041-1038 1 OPTION
CHAIN,520X118TR 29 92057-1051 1
CHAIN JOINT 520 30 92058-1002 1 DID520TR
