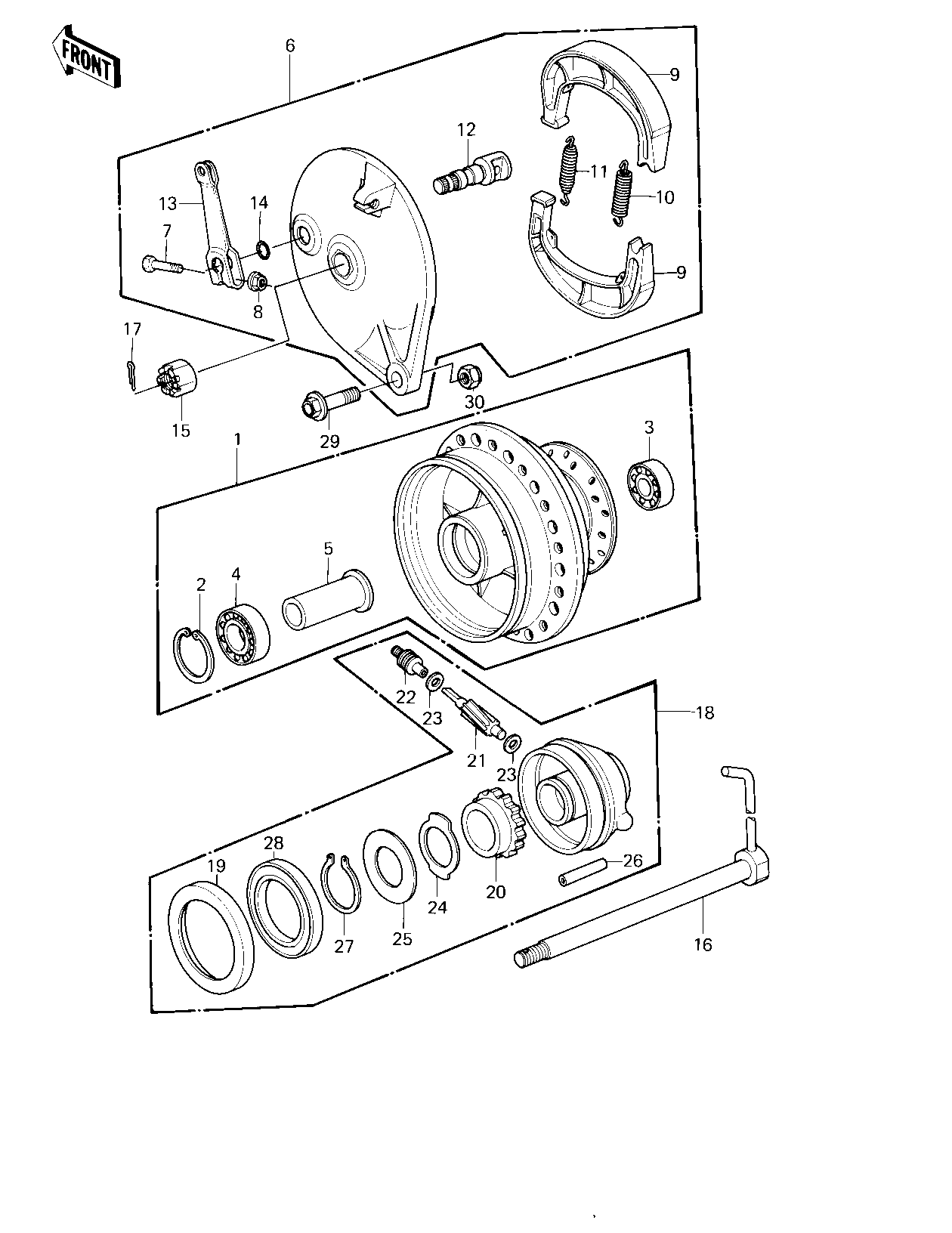

1980 KDX175 - FRONT HUB/BRAKE ('80 A1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DRUM-ASSY,FR BRK | 1 | 41034-1016 | 1 | ||
| CIRCLIP.37MM | 2 | 481J3700 | 1 | ||
| BEARING,BALL | 3 | 601B6201U | 1 | ||
| BEARING,BALL | 4 | 601B6301U | 1 | ||
| COLLAR,FRONT BEARING | 5 | 92027-1073 | 1 | ||
| PANEL-ASY,FR BRK | 6 | 41035-1030 | 1 | ||
| BOLT-UPSET | 7 | 112G0630 | 1 | ||
| NUT-6MM | 8 | 92015-1078 | 1 | ||
| SHOE,BRAKE | 9 | 41048-015 | 2 | ||
| SPRING,BRAKE SHOE | 10 | 92081-1766 | 1 | ||
| SPRING,BRAKE SHOE | 11 | 92081-1550 | 1 | ||
| CAM SHAFT,FR BRAKE | 12 | 41050-1016 | 1 | ||
| LEVER,FR BRAKE CAM | 13 | 41053-1018 | 1 | ||
| "O" RING,12MM | 14 | 670B2012 | 1 | ||
| NUT-CASTLE | 15 | 320G1200 | 1 | ||
| AXLE,FRONT | 16 | 41068-1042 | 1 | ||
| PIN,COTTER,3.2X28 | 17 | 550D3228 | 1 | ||
| CASE ASSY,SPEED GEAR | 18 | 41078-009 | 1 | ||
| DUST COVER | 19 | 41042-013 | 1 | ||
| GEAR,SPEEDOMETER | 20 | 41059-024 | 1 | ||
| PINION,SPEEDOMETER | 21 | 41060-015 | 1 | ||
| BUSH,SPEEDMETER CABL | 22 | 41062-005 | 1 | ||
| WASHER THRST SPD PIN | 23 | 41063-001 | 2 | ||
| RECEIVER,SPEED GEAR | 24 | 41064-011 | 1 | ||
| WASHER,THRUST | 25 | 41065-004 | 1 | ||
| PIN,SPRING | 26 | 41082-001 | 1 | ||
| CIRCLIP,19MM | 27 | 480J1900 | 1 | ||
| OIL SEAL | 28 | 654A405208 | 1 | ||
| BOLT,10X45 | 29 | 92001-1182 | 1 | ||
| NUT,LOCK,10MM | 30 | 92019-021 | 1 |
| DRUM-ASSY,FR BRK | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP.37MM | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING,BALL | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING,BALL | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,FRONT BEARING | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PANEL-ASY,FR BRK | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT-6MM | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHOE,BRAKE | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING,BRAKE SHOE | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,BRAKE SHOE | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAM SHAFT,FR BRAKE | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER,FR BRAKE CAM | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING,12MM | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT-CASTLE | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| AXLE,FRONT | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,COTTER,3.2X28 | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE ASSY,SPEED GEAR | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUST COVER | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,SPEEDOMETER | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PINION,SPEEDOMETER | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSH,SPEEDMETER CABL | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER THRST SPD PIN | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RECEIVER,SPEED GEAR | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,THRUST | |
| REF # | 25 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,SPRING | |
| REF # | 26 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,19MM | |
| REF # | 27 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL | |
| REF # | 28 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,10X45 | |
| REF # | 29 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,10MM | |
| REF # | 30 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
