Parts Diagrams |

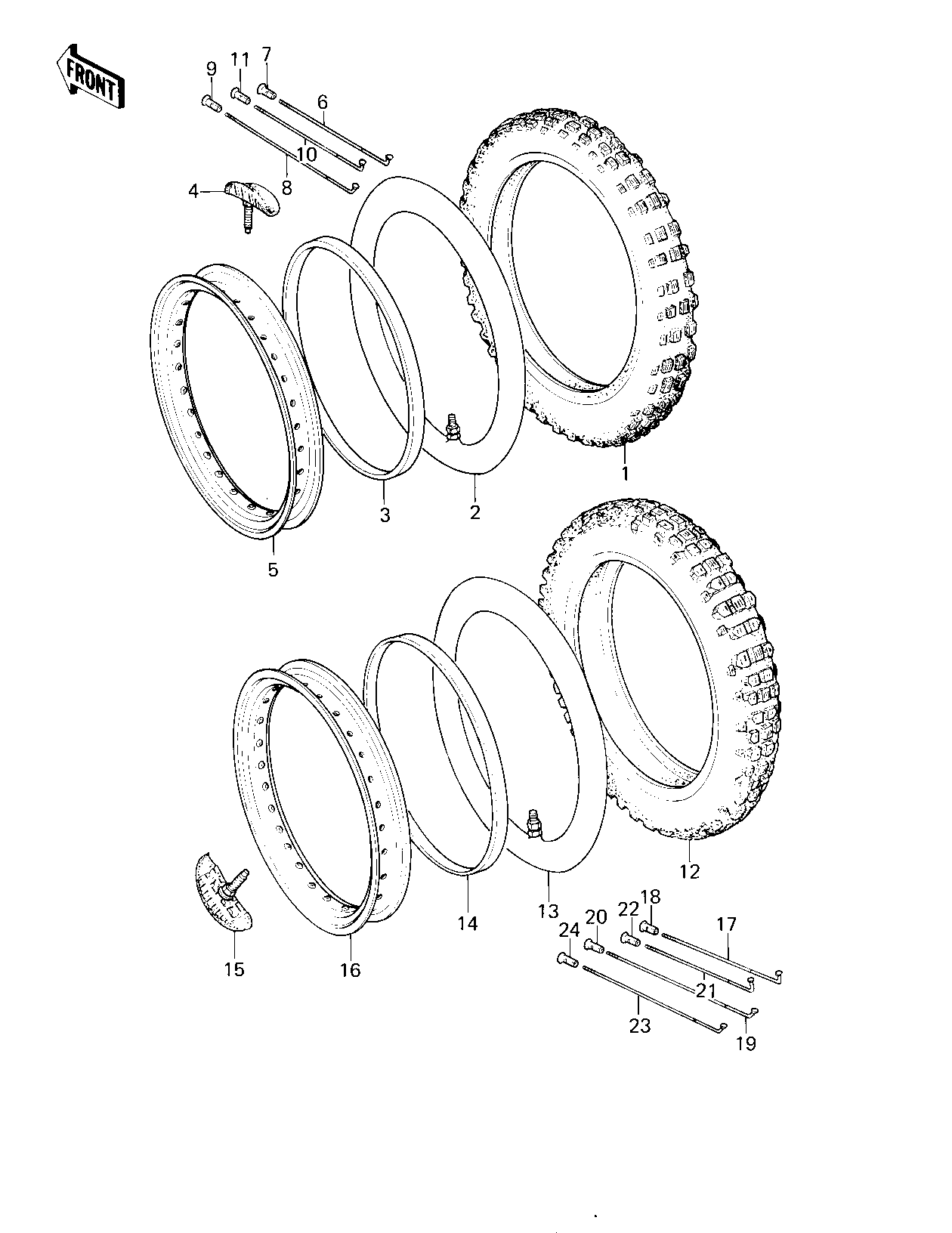

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TIRE 300-21 M17 | 1 | 41002-1087 | 1 | M17 | |
| UNAVAILABLE IN PRICE BOOK | 2 | 41022-1023 | 1 | ||
| BAND,RIM | 3 | 41023-1009 | 1 | ||
| PROTECTOR,BEAD 1.60A | 4 | 41024-010 | 1 | ||
| RIM,FRONT,1.60-21 | 5 | 41025-1017 | 1 | ||
| SPOKE,FRONT,INNER,L. | 6 | 41029-1019 | 9 | 203 M/M X 101 | |
| NIPPLE,SPOKE | 7 | 41032-1001 | 9 | ||
| SPOKE,FRONT,INNER,R. | 8 | 41029-1020 | 18 | 229 M/M X 130 | |
| NIPPLE,SPOKE | 9 | 41032-1001 | 18 | ||
| SPOKE,FRONT,OUTER,L. | 10 | 41030-1016 | 9 | 201 M/M X 84.5 | |
| NIPPLE,SPOKE | 11 | 41032-1001 | 9 | ||
| TIRE 400-18 M20 | 12 | 41002-1088 | 1 | M20 | |
| UNAVAILABLE IN PRICE BOOK | 13 | 41022-1024 | 1 | ||
| BAND,RIM | 14 | 41023-1010 | 1 | ||
| PROTECTOR,BEAD,1.85B | 15 | 41024-011 | 2 | ||
| RIM,REAR,1.85-18 | 16 | 41025-1018 | 1 | ||
| SPOKE,REAR,INNER,R.H | 17 | 41029-1021 | 9 | 166 M/M X 105 | |
| NIPPLE,SPOKE | 18 | 41032-1001 | 9 | ||
| SPOKE,REAR,INNER,L.H | 19 | 41029-1022 | 9 | 189 M/M X 123 | |
| NIPPLE,SPOKE | 20 | 41032-1001 | 9 | ||
| SPOKE,REAR,OUTER,R.H | 21 | 41030-1017 | 9 | 163.5 M/M X 73 | |
| NIPPLE,SPOKE | 22 | 41032-1001 | 9 | ||
| SPOKE,REAR,OUTER,L.H | 23 | 41030-1018 | 9 | 186.5 M/M X 127 | |
| NIPPLE,SPOKE | 24 | 41032-1001 | 9 |
