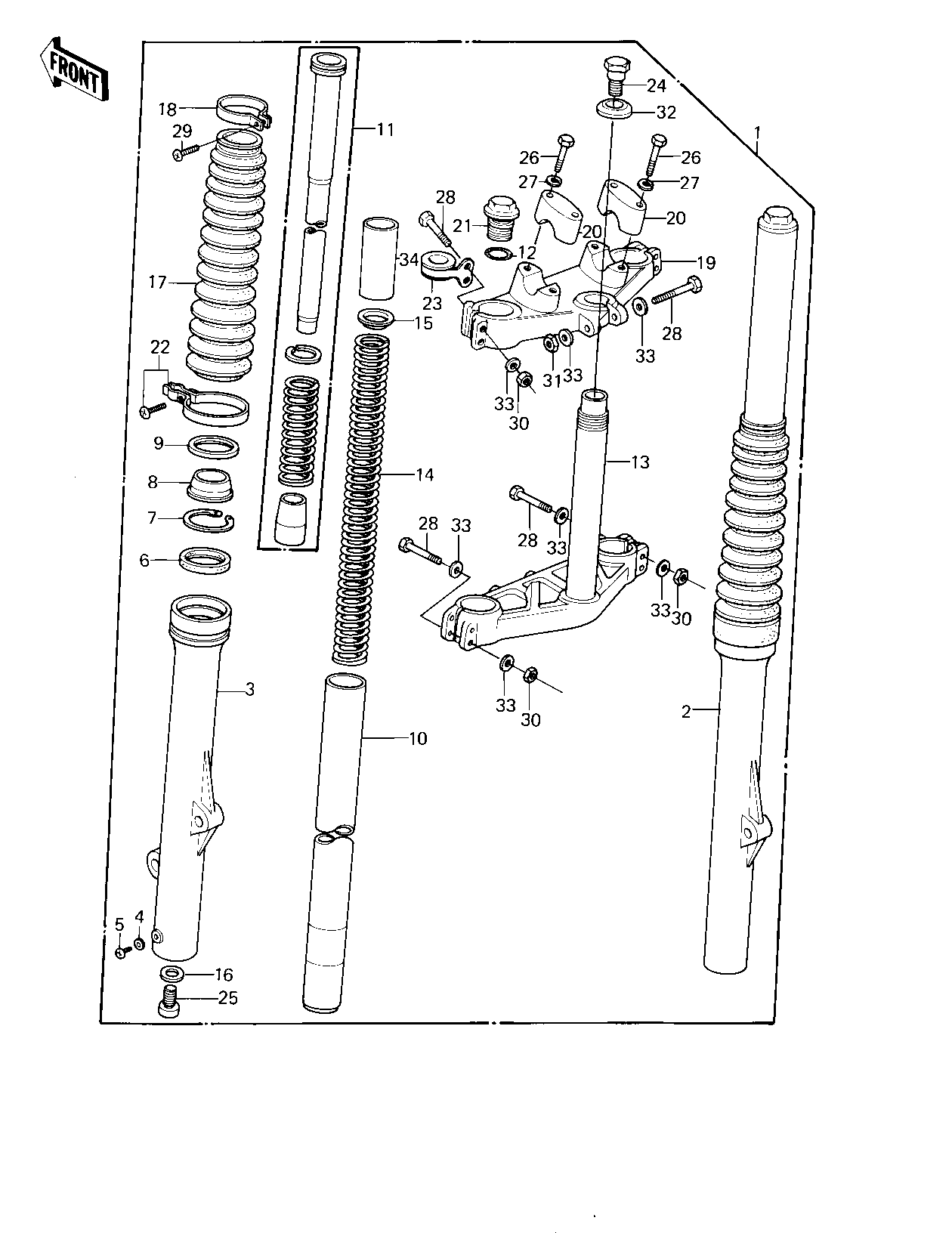

1980 KDX175 - FRONT FORK ('80 A1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-FRONT 1 44001-1120 1
TUBE,RH,FORK OUTER 2 44006-1030 1
TUBE,LH,FORK OUTER 3 44005-1030 1
GASKET FORK DRAIN PL 4 44045-002 2
SCREW PAN HEAD 4X8 5 220B0408 2
OIL,SEAL,FORK OUTER 6 92049-1009 2
RING,SNAP,FORK OUTER 7 92033-1005 2
DUST SHIELD,FORK OUT 8 92093-1036 2
CASE,DUST SHIELD 9 32099-1012 2
TUBE,FORK INNER 10 44013-1041 2
CYLINDER-FORK 11 44022-1030 2
"0" RING,FORK TOP 12 92055-1051 2
STEM,STEERING 13 44037-1021 1
SPRING,FORK INNER 14 44026-1043 2
GUIDE,FORK SPRING 15 44028-1004 2
GASKET,FORK CYLINDER 16 44045-057 2
BOOTS,FORK 17 49006-1009 2
BAND,BOOTS 18 92072-1008 2
HEAD,STEERING STEM 19 44039-1018 1
HOLDER,HANDLE BAR 20 46012-1003 2
CAP,FORK TOP 21 44029-1015 2
BAND,BOOTS L.H. 22 92072-1011 2
CLAMP,CABLE 23 92072-1040 1
BOLT,FORK TOP 24 44041-065 1
BOLT-FORK CYLINDER 25 44041-040 2
BOLT,FLANGED,8X40 26 92001-1578 4
WASHER SPRING 8MM 27 461F0800 4
BOLT FLANGED 8X55 28 92001-1398 9
SCREW-PAN-CROS 29 220B0420 2
NUT 8MM 30 311G0800 8
NUT,LOCK,8MM 31 92015-1124 1
WASHER 32 44043-052 1
WASHER PLAIN 8MM 33 410B0800 16
SPACER,FORK SPRING 34 92026-1072 1
