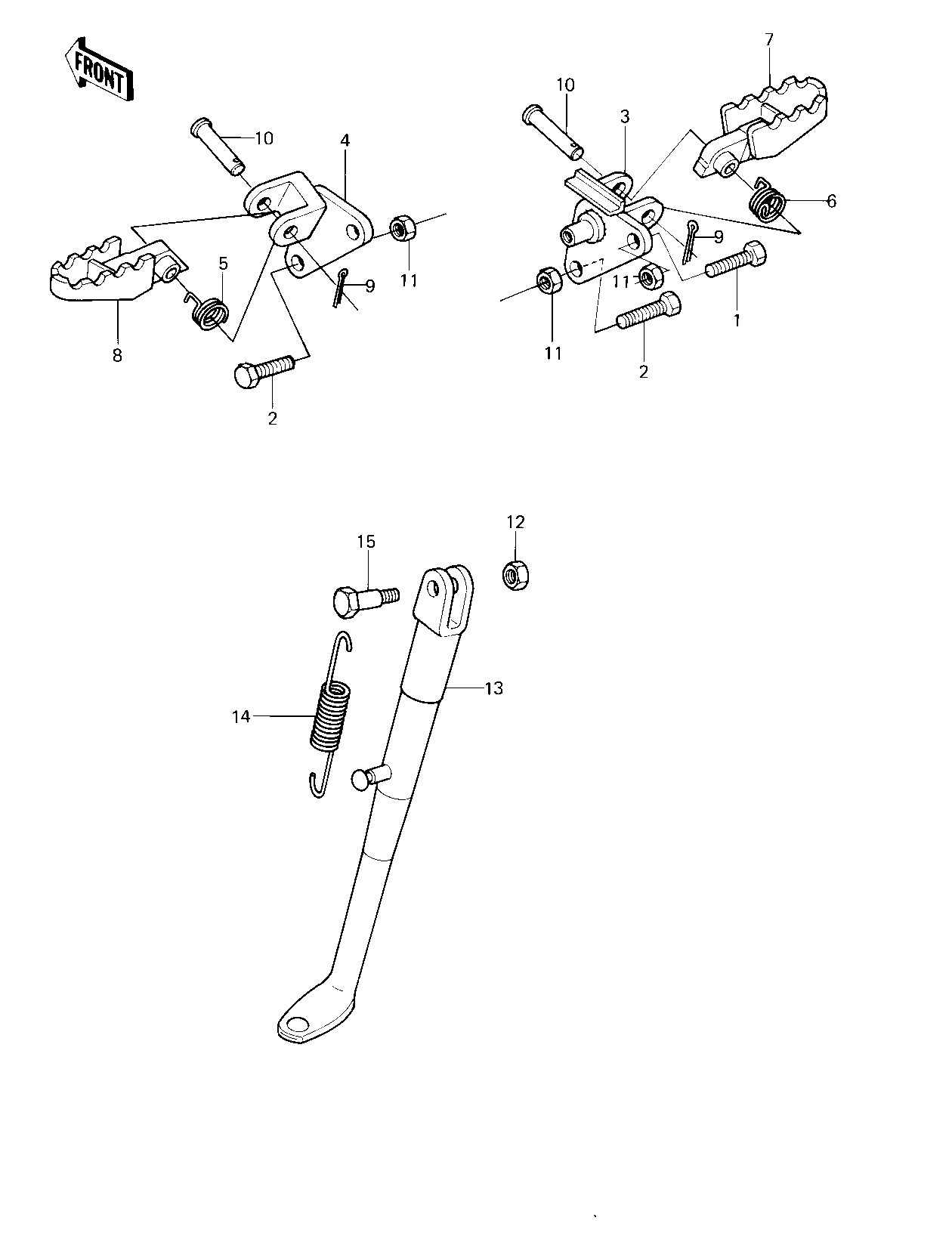

1980 KDX175 - FOOTRESTS/STAND ('80 A1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT,8X50 | 1 | 92001-1439 | 1 | ||
| BOLT,HEX HEAD,8X50 | 2 | 110P0850 | 2 | ||
| HOLDER-STEP,RH | 3 | 34003-1088 | 1 | ||
| HOLDER,FOOTRST STEP, | 4 | 34003-1054 | 1 | ||
| SPRING,L.H,FOOTREST | 5 | 92081-1254 | 1 | ||
| SPRING,R.H,FOOTREST | 6 | 92081-1255 | 1 | ||
| STEP | 7 | 34028-1033 | 1 | ||
| STEP | 8 | 34028-1034 | 1 | ||
| PIN,COTTER,2.5X18 | 9 | 550D2518 | 2 | ||
| PIN,FOOTRST STEP FIT | 10 | 92043-1069 | 2 | ||
| NUT,LOCK,8MM | 11 | 92015-1124 | 3 | ||
| NUT 10MM | 12 | 315B1000 | 1 | ||
| STAND-SIDE | 13 | 34024-1041 | 1 | ||
| SPRING,SIDE STAND | 14 | 34025-008 | 1 | ||
| BOLT, SIDE STAND FIT | 15 | 92003-157 | 1 |
