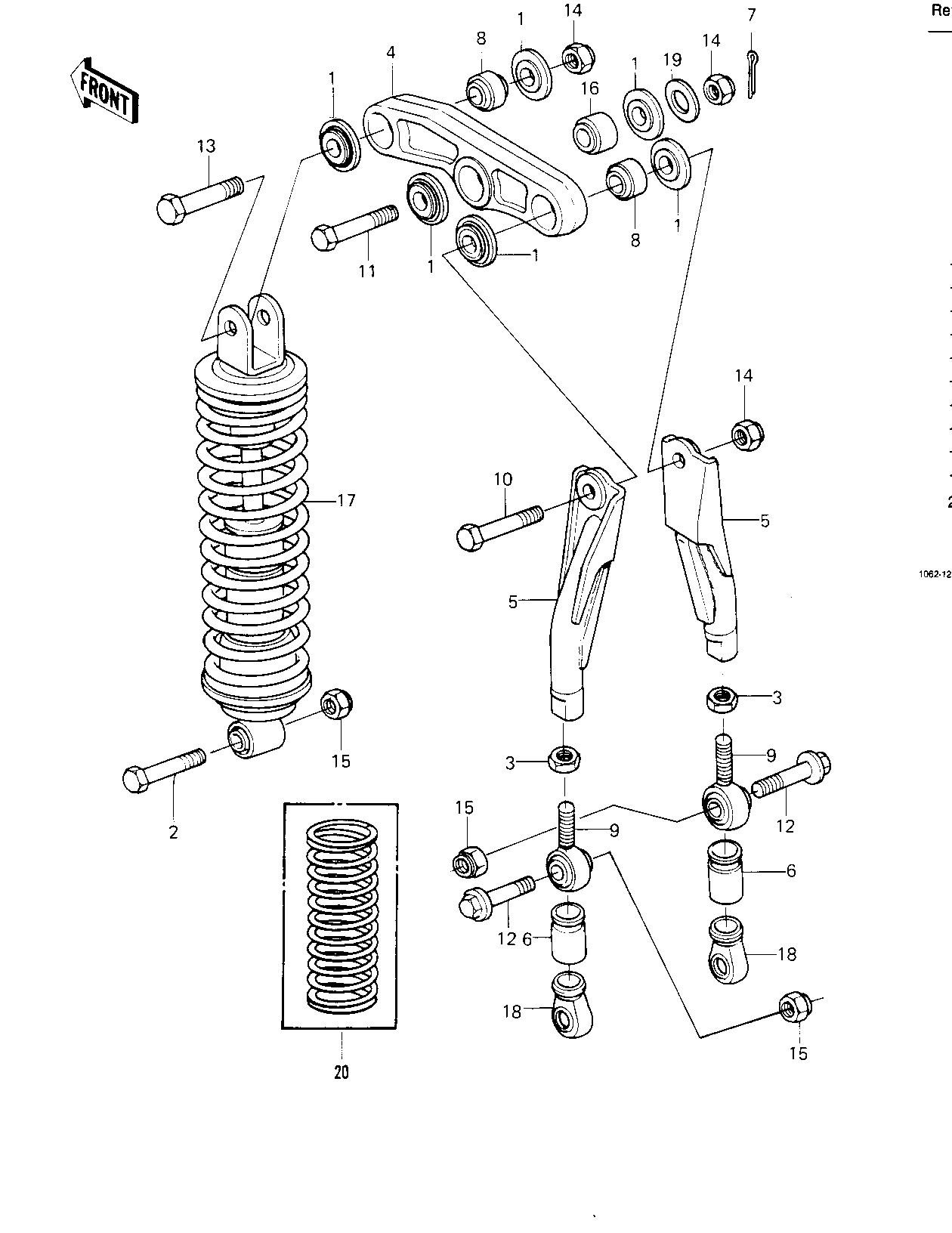

1980 KDX175 - REAR SUSPENSION ('80 A1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,SUSPENSION ARM | 1 | 11012-1117 | 6 | ||
| BOLT,HEX HEAD,12X55 | 2 | 113P1255A | 1 | ||
| NUT-HEX-FINE,12MM | 3 | 315B1200 | 2 | ||
| ARM,SUSPENSION | 4 | 39007-1003 | 1 | ||
| ROD-ASSY,UNITRK | 5 | 46102-5001 | 2 | ||
| BOOT,BALL JOINT | 6 | 49006-1045 | 2 | ||
| PIN COTTER 2.5X25 | 7 | 550D2525 | 1 | ||
| JOINT,BALL,SUSPENSIO | 8 | 59266-1001 | 2 | SPHERICAL BEARING | |
| JOINT,BALL,SUSPENSIO | 9 | 59266-1002 | 2 | ||
| BOLT,HEX HEAD,14X54 | 10 | 92001-1295 | 1 | ||
| BOLT,HEX HEAD,14X60 | 11 | 92001-1335 | 1 | ||
| BOLT,HEX HEAD,12X40 | 12 | 92001-1306 | 2 | ||
| BOLT,HEX HEAD,14X50 | 13 | 92001-1317 | 1 | ||
| NUT-LOCK,14MM | 14 | 92019-011 | 3 | ||
| NUT-LOCK,12MM | 15 | 92019-009 | 3 | ||
| BUSHING,SUSPENSION A | 16 | 92028-1087 | 1 | SLEEVE BEARING | |
| SHOCK ABSBR RR | 17 | 45014-1052 | 1 | ||
| BOOT,BALL JOINT | 18 | 49006-1046 | 2 | ||
| WASHER PLAIN 14MM | 19 | 410B1400 | 1 | ||
| SPRING, RR SHOCK STD | 20 | 92081-1348 | 1 | 6.5 KG/MM | |
| SPRING,REAR SHOCK | 20 | 92081-1235 | (1 | 6.0 KG/MM | |
| SPRING,REAR SHOCK | 20 | 92081-1236 | (1 | 7.0 KG/MM |
