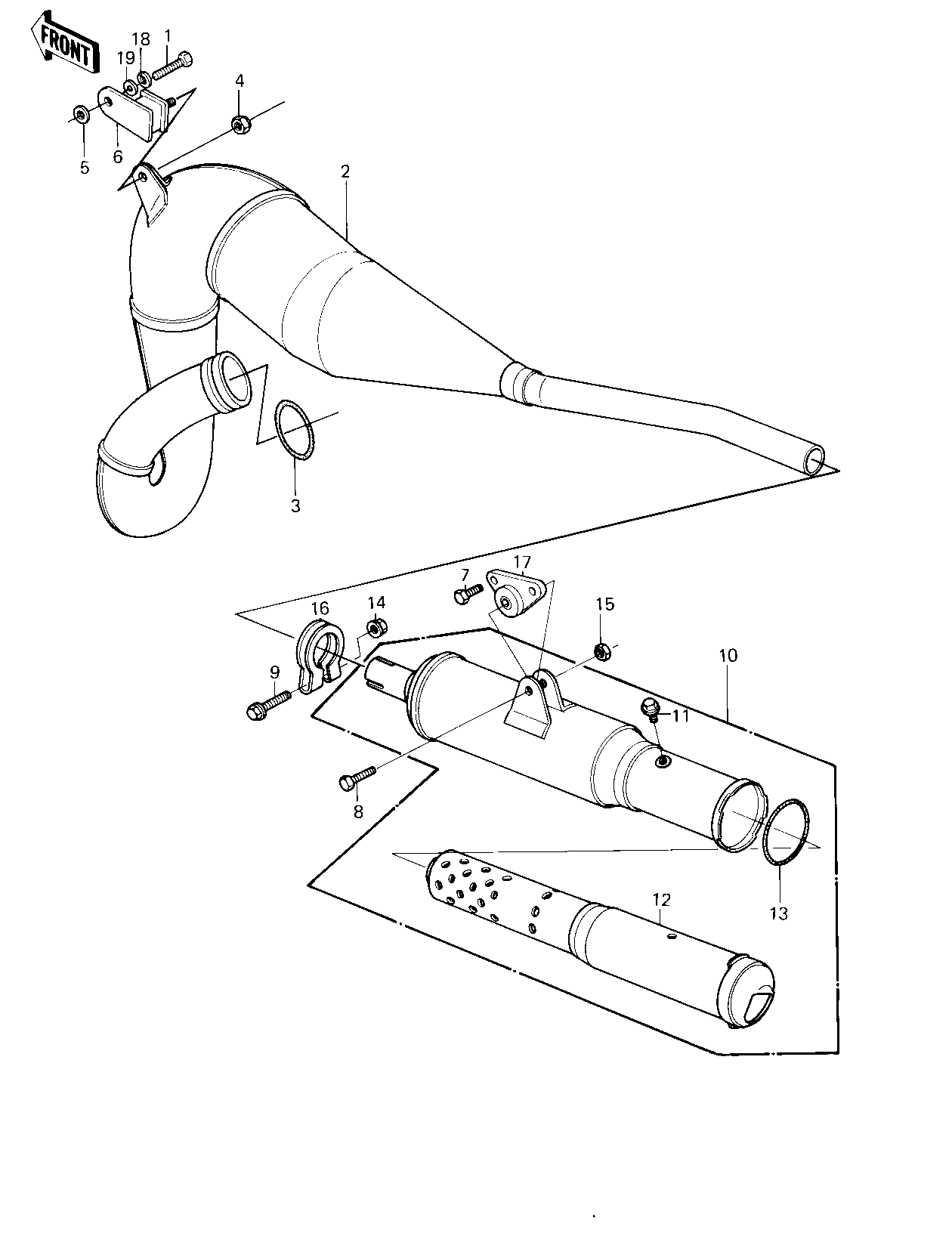

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SMALL-UPSET 8X2 | 1 | 115G0825 | 1 | ||
| BODY,MUFFLER | 2 | 18002-1081 | 1 | ||
| "0" RING,46M/M | 3 | 670E3046 | 1 | ||
| NUT,LOCK,8MM | 4 | 92015-1124 | 1 | ||
| WASHER 8.5X23.5X4.5 | 5 | 92022-218 | 1 | ||
| DAMPER,MUFFLER FITIN | 6 | 92075-1060 | 1 | ||
| BOLT-UPSET | 7 | 112G0618 | 2 | ||
| BOLT-UPSET | 8 | 112G0625 | 1 | ||
| BOLT,FLANGED,6X35 | 9 | 130H0635 | 1 | ||
| MUFFLER ASSY | 10 | 18001-1106 | 1 | ||
| BOLT,FLANGED,6X8 | 11 | 130B0608 | 1 | ||
| BUFFLE PIPE,MUFFLER | 12 | 49099-1025 | 1 | ||
| "0" RING,50.8MM,MUFL | 13 | 92055-1077 | 1 | ||
| NUT-6MM | 14 | 92015-1078 | 1 | ||
| NUT | 15 | 92019-008 | 1 | ||
| CLAMP,MUFFLER | 16 | 92037-1169 | 1 | ||
| DAMPER RUBBER | 17 | 92075-1046 | 1 | ||
| WASHER SPRING 8MM | 18 | 461F0800 | 1 | ||
| WASHER PLAIN 8MM | 19 | 411B0800 | 1 |
