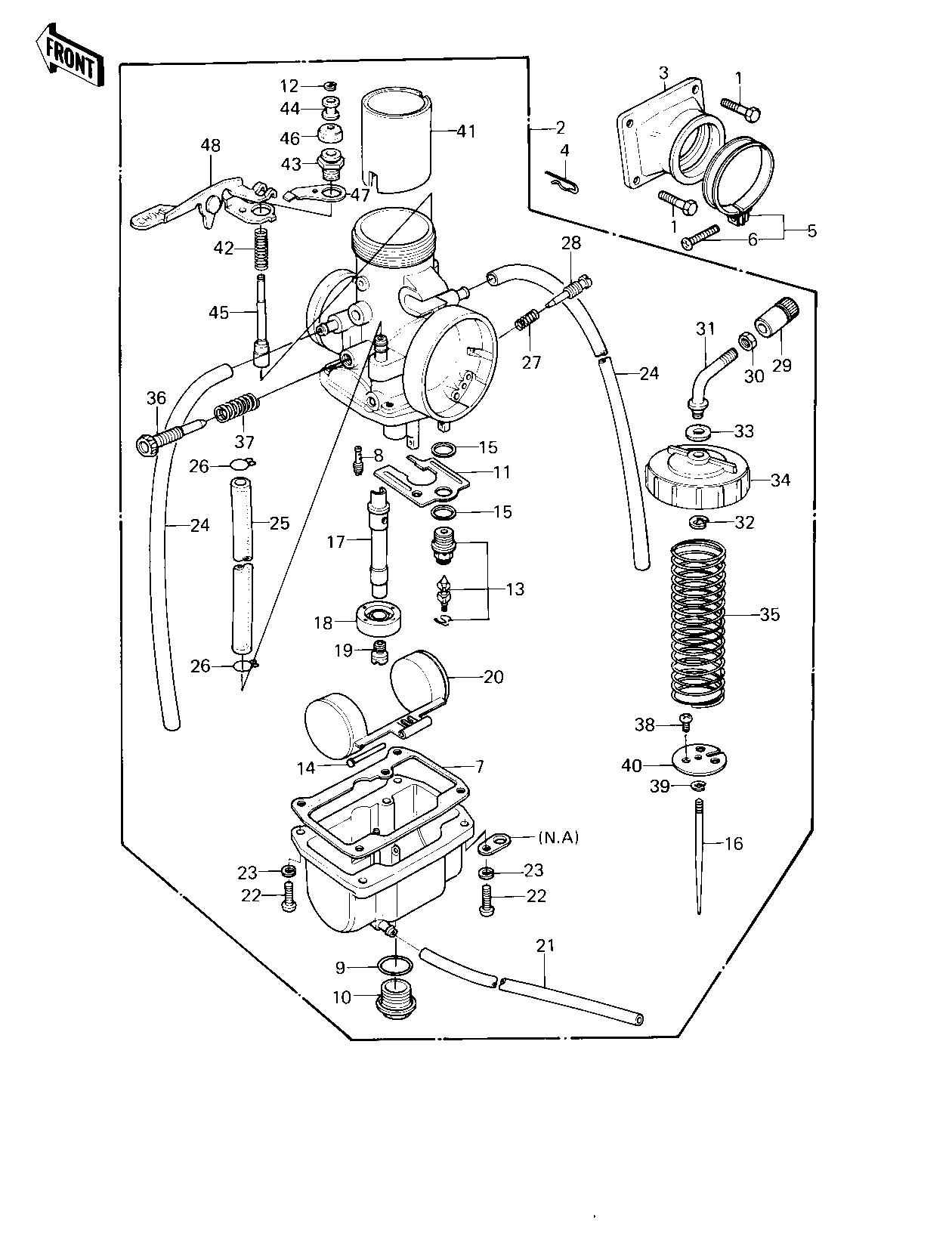

1980 KDX175 - CARBURETOR ('80 A1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET 1 112G0625 4
CARBURETOR ASSY 2 16001-1250 1
HOLDER,CARBURETOR 3 16065-1007 1
CIRCLIP 4 92036-018 1
CLAMP-INLET PIPE 5 92037-061 1
SCREW,PAN HEAD 6 92011-037 1
GASKET,FLOAT CHAMBER 7 11009-1079 1
JET-PILOT NO 40 8 92064-024 1
GASKET-COVER 9 16038-009 1
COVER,MAIN JET 10 16049-006 1
PLATE,FLOAT CHAMBER 11 11009-1080 1
CIRCLIP 12 16076-003 1
FLOAT VALVE ASSY 13 16030-022 1
PIN,FLOAT 14 16032-008 1
GASKET,FLOAT VALVE 15 11009-1076 2
JET NEEDLE,6DH7 16 16009-1063 1
NEEDLE JET,Q-4 17 16017-1060 1
HOLDER,NEEDLE JET 18 16065-1017 1
MAIN JET,#A137.5 19 92063-1087 1
JET-MAIN NO 132.5R 19 92063-103 (1 OPTION
MAIN JET NO 135R 19 92063-104 (1 OPTION
MAIN JET,#140A 19 92063-116 (1 OPTION
JET-MAIN NO 142.5R 19 92063-117 (1 OPTION
FLOAT ASSY 20 16031-025 1
HOSE,OVERFLOW 21 92059-1025 1 ACTUAL L = 250 M/M
SCREW, PAN HEAD 5X16 22 220B0516A 4
WASHER SPRING 5MM 23 461F0500 4
TUBE,3.5X6.5X290,BRT 24 92059-1017 2
HOSE,6.5X11.5X240 25 92059-1084 1
CLAMP,CARB CONECT HO 26 92037-056 2
SPRING-THR STOP SCRE 27 16022-007 1
SCREW 28 16014-006 1
ADJUSTER,CABLE 29 16002-1006 1
NUT CABLE ADJUST LOC 30 16003-004 1
GUIDE,CABLE 31 13070-1010 1
CIRCLIP,CABLE GUIDE 32 16008-011 1
GASKET,CABLE GUIDE 33 11009-1191 1
TOP,MIXING CHAMBER 34 16004-1003 1
SPRING-THROTTLE VALV 35 16006-016 1
SCREW,THROTTLE ADJUS 36 16021-1028 1
SPRING,THRTL STP SCR 37 92081-1200 1
SCREW,4X5 38 92009-1037 1
CIRCLIP 39 16008-010 1
SEAT,THROTTLE VALVE 40 16007-1007 1
VALVE,THROTTLE,CA2.0 41 16025-1047 1
SPRING,STARTER PLUG 42 16013-008 1
CAP,PLUNGER 43 16012-016 1
COLLAR 44 16073-014 1
PLUNGER ASSY,STARTER 45 16016-1014 1
CAP,STARTER PLUNGER 46 16039-015 1
SPRING,STATER LEVER 47 16013-009 1
LEVER,STARTER 48 13168-1066 1
