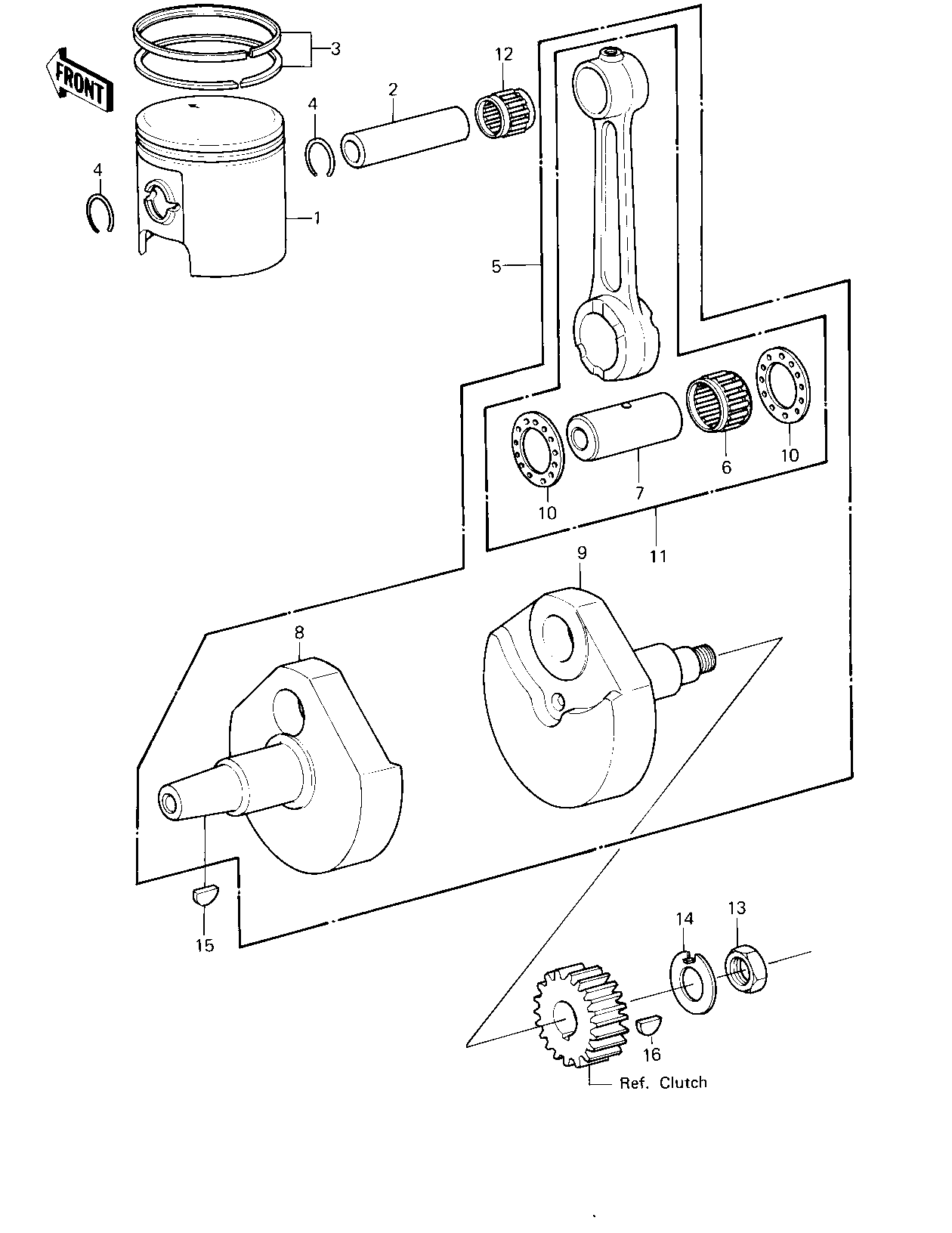

1980 KDX175 - CRANKSHAFT/PISTON ('80 A1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PISTON-ENGINE | 1 | 13001-1048 | 1 | ||
| PIN-PISTON | 2 | 13002-1004 | 1 | ||
| RING-SET-PISTON | 3 | 13008-5034 | 1 | ||
| CIRCLIP PISTON PIN | 4 | 92036-004 | 2 | ||
| CRANKSHAFT ASSY | 5 | 13031-1032 | 1 | ||
| NEEDLE BEARING,BIG E | 6 | 13034-1002 | 1 | ||
| PIN,CRANK | 7 | 13035-1001 | 1 | ||
| CRANKSHAFT,L.H | 8 | 13037-1062 | 1 | ||
| CRANKSHAFT,R.H | 9 | 13037-1063 | 1 | ||
| WASHER SIDE | 10 | 92026-011 | 2 | ||
| CONNECTING ROD ASSY | 11 | 13044-5017 | 1 | ||
| BRG,NEEDLE,KBK162019 | 12 | 13033-1004 | 1 | ||
| NUT 12MM | 13 | 92015-006 | 1 | ||
| WASHER,LOCK | 14 | 92022-1063 | 1 | ||
| WOODRUFF KEY | 15 | 92038-001 | 1 | ||
| WOODRUFF KEY PRY PIN | 16 | 92038-003 | 1 |
