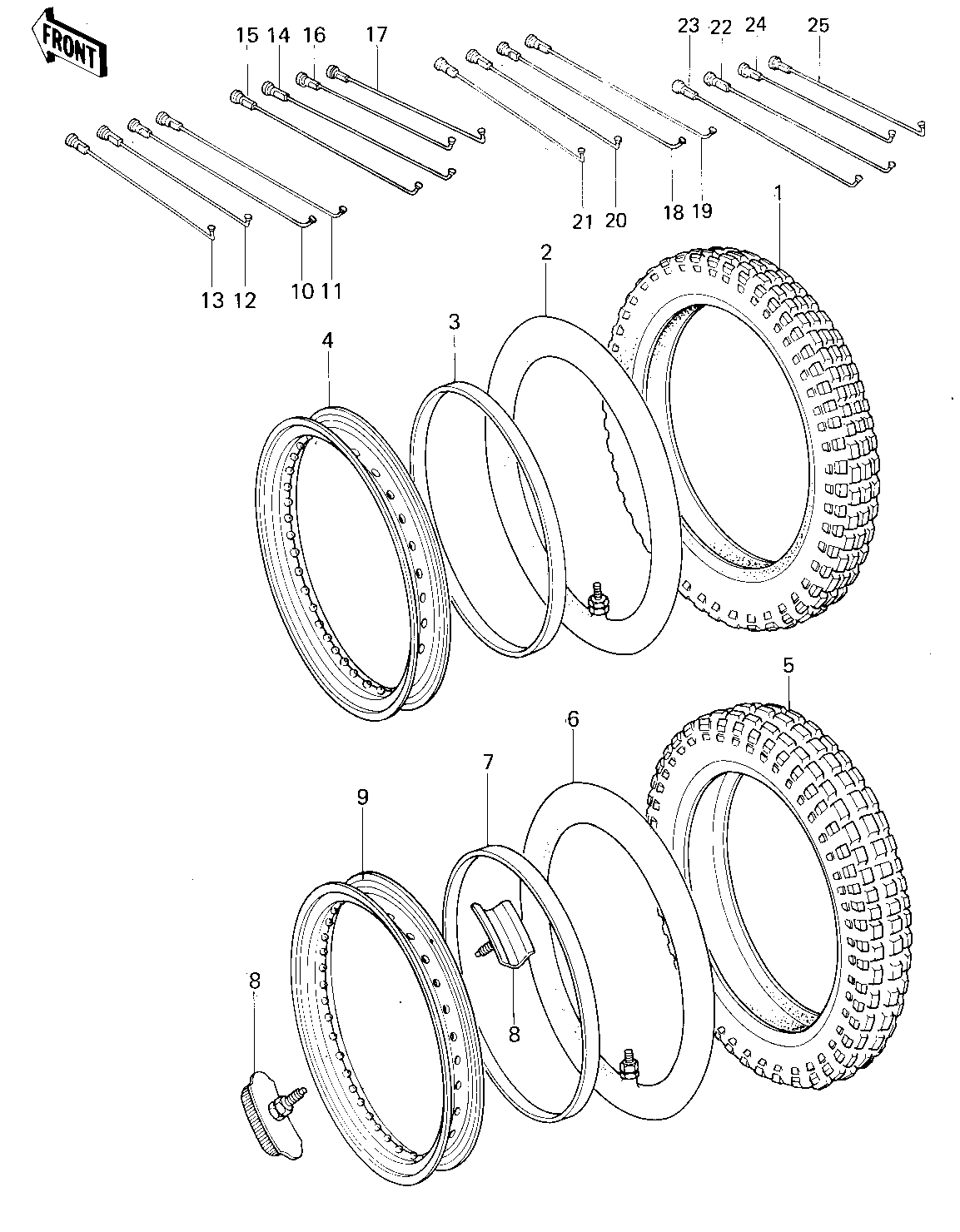

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TIRE 275-17 K190 F | 1 | 41002-1194 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 2 | 41022-1012 | 1 | ||
| BAND-RIM,FR | 3 | 41023-1067 | 1 | ||
| RIM,FRONT,1.40X17 | 4 | 41025-1014 | 1 | ||
| TIRE,RR | 5 | 41002-1677 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 6 | 41022-1013 | 1 | ||
| BAND,RIM,4.10-14 | 7 | 41023-1025 | 1 | ||
| PROTECTOR-BEAD 1.60A | 8 | 41024-006 | 2 | ||
| RIM,REAR,1.60X14 | 9 | 41025-1011 | 1 | ||
| SPOKE-ASY,FR | 10 | 41027-5018 | 9 | 186.5 M/M X 131.5 | |
| SPOKE-ASY,FR | 11 | 41028-5016 | 9 | 185 M/M X 140 | |
| SPOKE-ASY,FR INNER L | 12 | 41027-5017 | 9 | 160 M/M X 100 | |
| SPOKE-ASY,FR OUTER L | 13 | 41028-5015 | 9 | 159.5 M/M X 84 | |
| SPOKE-ASY,RR | 14 | 41027-5020 | 9 | 146 M/M X 127.5 | |
| SPOKE-ASY,RR | 15 | 41028-5018 | 9 | 143 M/M X 127 | |
| SPOKE-ASY,RR INNER R | 16 | 41027-5019 | 9 | 128 M/M X 107 | |
| SPOKE-ASY,RR OUTER R | 17 | 41028-5017 | 9 | 127 M/M X 75 |
| TIRE 275-17 K190 F | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND-RIM,FR | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM,FRONT,1.40X17 | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TIRE,RR | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,RIM,4.10-14 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PROTECTOR-BEAD 1.60A | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RIM,REAR,1.60X14 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPOKE-ASY,FR | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 186.5 M/M X 131.5 |
| SPOKE-ASY,FR | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 185 M/M X 140 |
| SPOKE-ASY,FR INNER L | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 160 M/M X 100 |
| SPOKE-ASY,FR OUTER L | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 159.5 M/M X 84 |
| SPOKE-ASY,RR | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 146 M/M X 127.5 |
| SPOKE-ASY,RR | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 143 M/M X 127 |
| SPOKE-ASY,RR INNER R | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 128 M/M X 107 |
| SPOKE-ASY,RR OUTER R | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 127 M/M X 75 |
