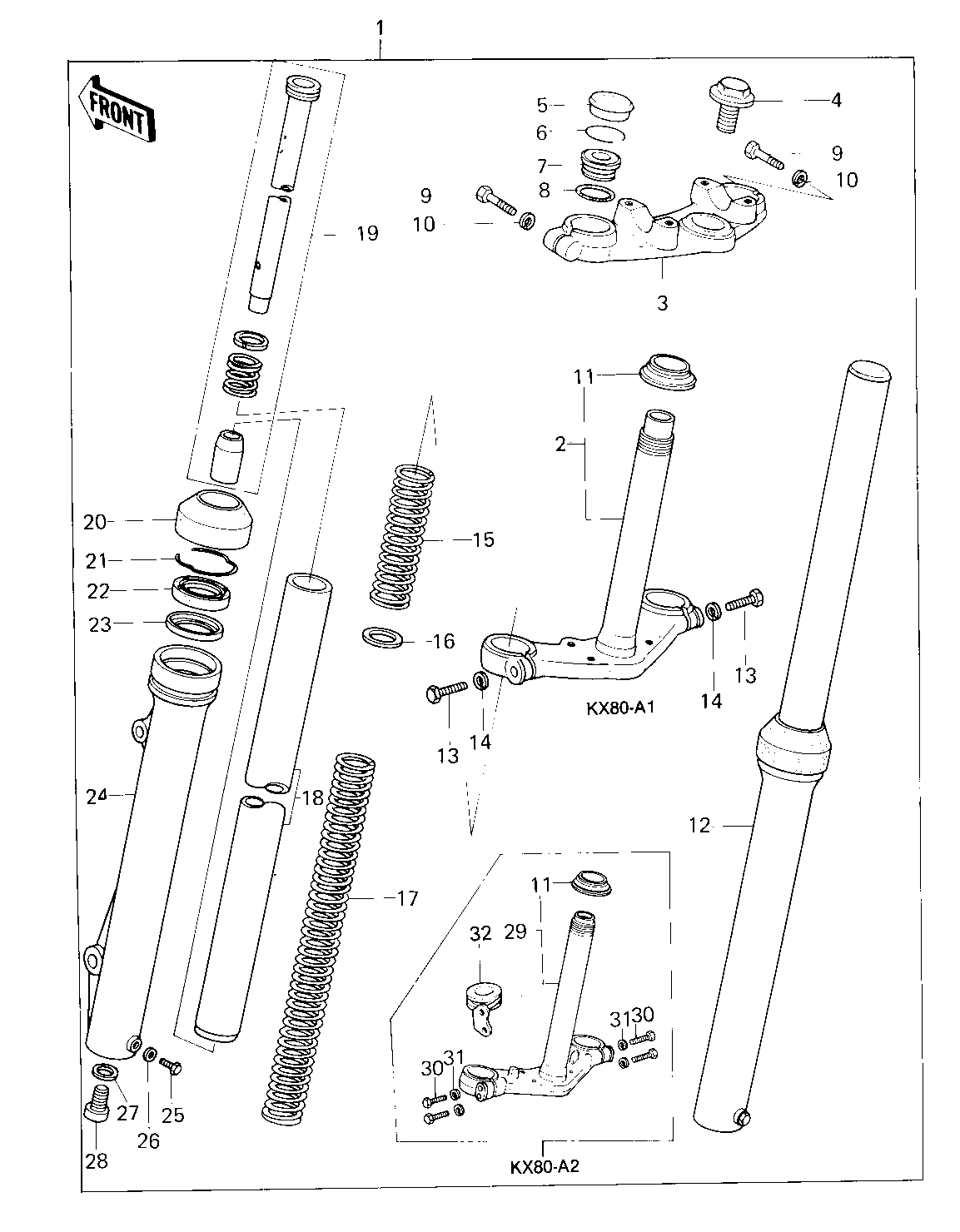

1979 KX80 - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-FRONT 1 44001-1043 1 KX80-A1
FORK-FRONT 1 44001-1122 1 KX80-A2~
STEM,STEERING 2 44037-1011 1 KX80-A1
HEAD,STEERING STEM 3 44039-1016 1
BOLT,STEERING STEM 4 92001-1318 1
CAP,RUBBER,FORK TOP 5 11012-1067 2
CIRCLIP 6 44044-023 2
GUIDE,SPRING 7 44029-022 2
"O" RING 8 44046-025 2
BOLT,HEX HEAD,8X40 9 92001-1063 2
WASHER SPRING 8MM 10 461F0800 2
CONE STERNG BERG LOW 11 92047-010 1
TUBE,RH,FORK OUTER 12 44006-1019 1 KX80-A1
TUBE,RH,FORK OUTER 12 44006-1040 1 KX80-A2~
BOLT,HEX HEAD 10X35 13 92001-1252 2
WASHER SPRING 10MM 14 461F1000 2 KX80-A1
SPRING,FORK INNER,UPP 15 44026-1025 2
SPRING,FORK INNER,UP 15 44026-1047 2 KX80-A2~
GUIDE,FORK SPRING 16 44028-1002 2
SPRING,FORK INNER,LOW 17 44026-1023 2 KX80-A1
SPRING,FORK INNER,LOW 17 44026-1046 2 KX80-A2~
TUBE,FORK INNER 18 44013-1016 2 KX80-A1
TUBE,FORK INNER 18 44013-1031 2 KX80-A2~
CYLINDER-FORK 19 44022-1017 2 KX80-A1
CYLINDER-FORK 19 44022-1035 2 KX80-A2~
DUST SHIELD,FORK OUT 20 92093-1019 2
CIRCLIP,FORK OUTER 21 92033-1028 2
OIL SEAL 22 92049-1069 2
SPACER,FORK OUTER 23 92026-1041 2
TUBE,LH,FORK OUTER 24 44005-1019 1 KX80-A1
TUBE,LH,FORK OUTER 24 44005-1040 1 KX80-A2~
BOLT HEX HEAD 6X8 25 110B0608 2
GASKET,DRAIN PLUG 26 44045-047 2
GASKET,FORK CYL BOLT 27 44045-051 2
BOLT,FORK CYLINDER 28 44041-078 2
STEM,STEERING 29 44037-1037 1 KX80-A2~
BOLT,HEX HEAD,8X40 30 92001-1063 4 KX80-A2~
WASHER SPRING 8MM 31 461F0800 4 KX80-A2~
CLAMP,CABLE 32 92072-1039 1 KX80-A2~
