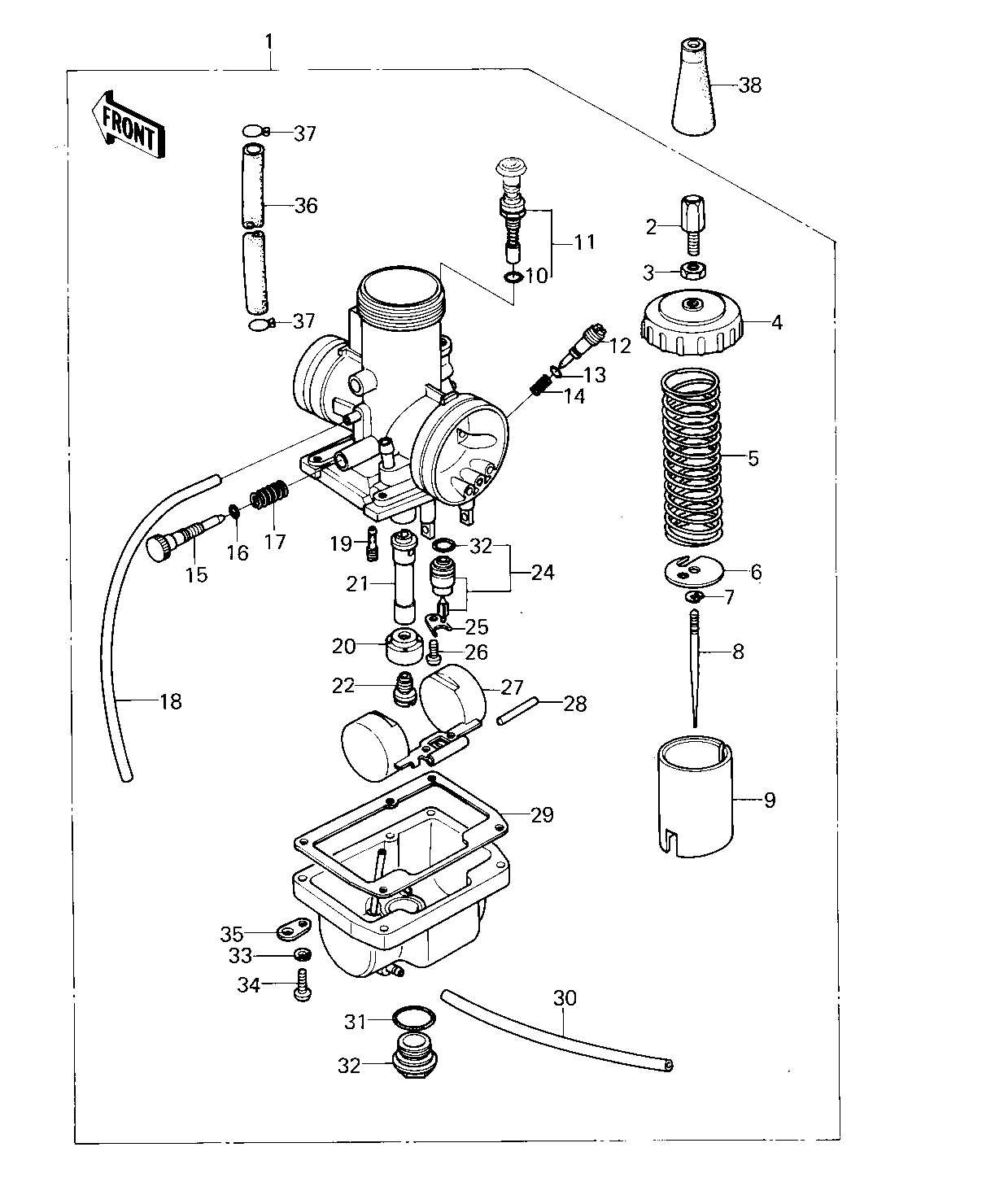

1979 KX80 - CARBURETOR (KX80-A2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CARBURETOR 1 16001-1206 1
ADJUSTER,CABLE 2 16002-017 1
NUT-CABLE ADJUST LOCK 3 16003-006 1
CAP,MIXING CHAMBER 4 16004-025 1
SPRING,THROTTLE VALVE 5 92081-1238 1
SEAT,THROTTLE VALVE 6 13169-1252 1
CIRCLIP 7 16008-010 1
JET NEEDLE,DH62 8 16009-1058 1
VALVE,THROTTLE,#2.0 9 16025-1046 1
"O" RING,9MM 10 670B1509 1
PLUNGER ASSY,STARTER 11 16016-1013 1
SCREW,PILOT AIR 12 16014-1013 1
"O" RING 13 16038-022 1
SPRING,AIR SCREW 14 92081-1153 1
SCREW,THROTTLE ADJST 15 16021-1012 1
"0" RING 16 92055-044 1
SPRING,THROTTLE ADJST 17 92081-1152 1
TUBE,3X5X300 18 92059-1755 1
JET-PILOT NO 40 19 92064-024 1
HOLDER,MAIN JET RING 20 16065-1033 1
NEEDLE JET,0-8 21 16017-1055 1
MAIN JET NO 120R 22 92063-078 1
JET-MAIN NO 115R 22 92063-076 (1
JET-MAIN NO 117.5R 22 92063-077 (1
JET-MAIN,#A122.5 22 92063-1101 (1
MAIN JET NO 125R 22 92063-055 (1
"0" RING 23 92055-1084 1
FLOAT VALVE ASSY,2.5 24 16030-1013 1
PLATE, LOCK 25 13169-1190 1
SCREW PAN HEAD 4X8 26 220B0408 1
FLOAT 27 16031-1011 1
FLOAT PIN 28 16032-003 1
GASKET,FLOAT CHAMBER 29 11009-1178 1
TUBE 30 92059-1135 1
"0" RING 31 92055-1076 1
COVER,MAIN JET 32 16049-1003 1
WASHER SPRING 4MM 33 461F0400 4
SCREW PAN HEAD 4X16 34 220B0416 4
PLATE,TUBE CLAMP 35 13169-1226 1
HOSE,FUEL TAP DIAPHRA 36 92059-1023 1
CLAMP-PIPE 37 92037-072 2
CAP,CARBURETOR 38 16036-007 1
