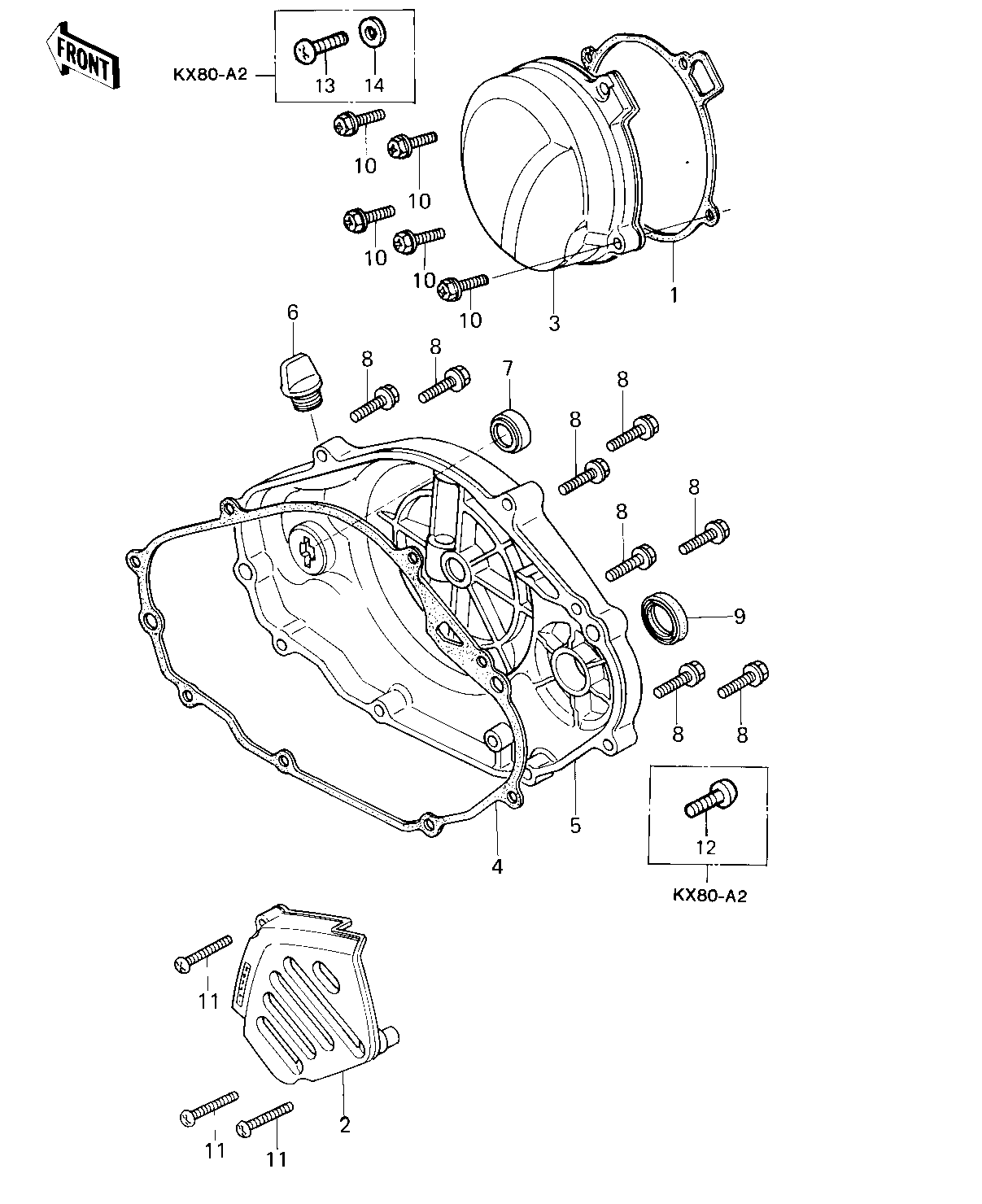

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,MAGNETO COVER | 1 | 11009-1111 | 1 | ||
| COVER,CHAIN | 2 | 14026-1021 | 1 | ||
| COVER,MAGNETO | 3 | 14031-1038 | 1 | KX80-A1 | |
| COVER,MAGNETO | 3 | 14031-1038 | 1 | KX80-A2~ | |
| GASKET,CLUTCH COVER | 4 | 11009-1110 | 1 | ||
| COVER,CLUTCH | 5 | 14032-1014 | 1 | KX80-A1 | |
| COVER,CLUTCH,F.BLACK | 5 | 14032-1027 | 1 | KX80-A2~ | |
| FILLER,OIL | 6 | 16115-018 | 1 | ||
| GAUGE,OIL LEVEL | 7 | 52005-1005 | 1 | ||
| BOLT,FLANGED,6X22 | 8 | 92001-1352 | 8 | KX80-A1 | |
| OIL SEAL TB16267 | 9 | 92051-003 | 1 | ||
| BOLT,FLANGED,6X22 | 10 | 92001-1352 | 5 | KX80-A1 | |
| SCREW,PAN HEAD,5X30 | 11 | 92011-032 | 3 | ||
| SCREW,PAN HEAD,6X22 | 12 | 92009-1075 | 8 | KX80-A2~ | |
| SCREW-PAN-CROS,6X25,B | 13 | 220C0625 | 5 | KX80-A2~ | |
| WASHER PLAIN | 14 | 411F0600 | 5 | KX80-A2~ |
