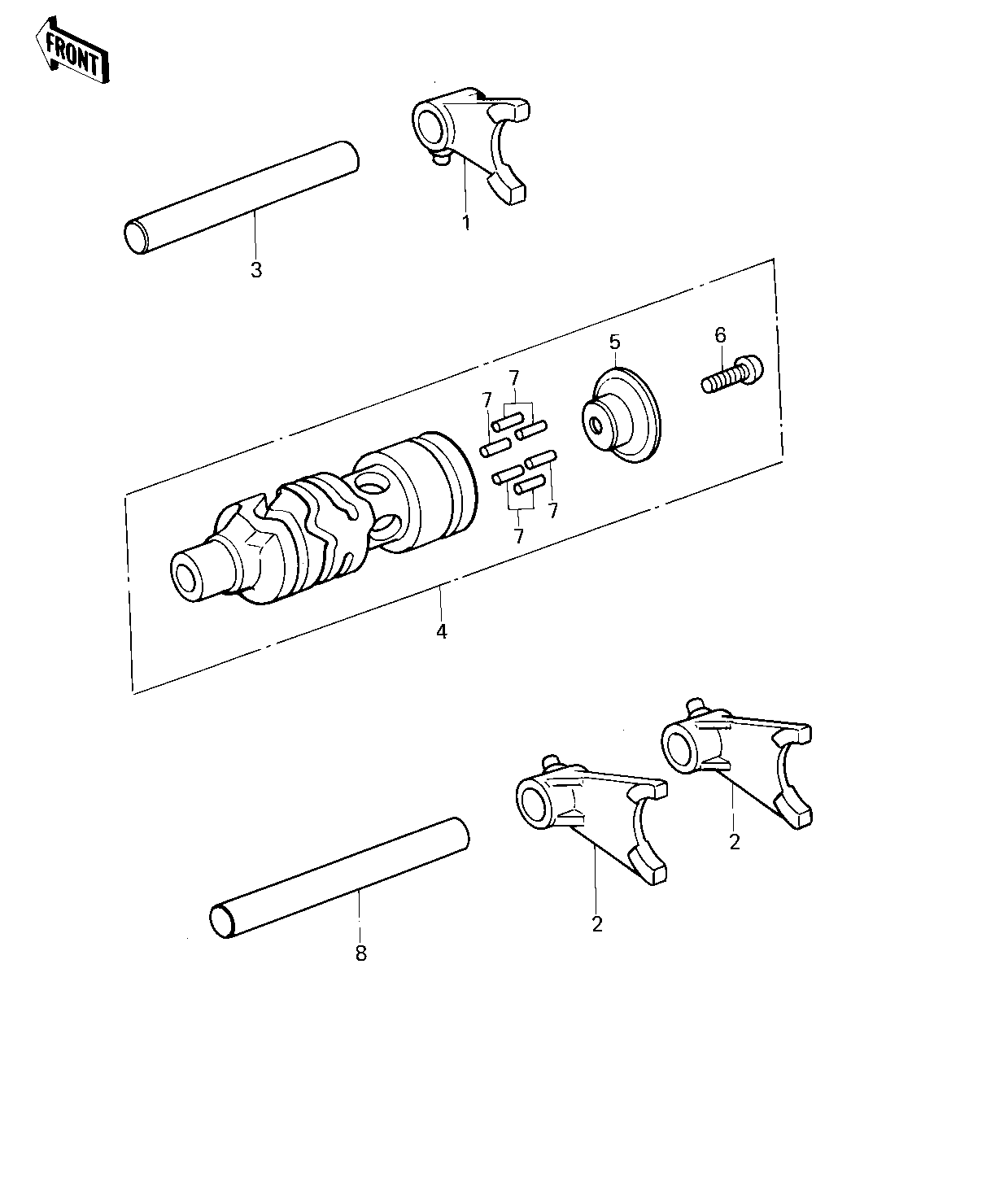

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FORK,SHIFT,4TH& TOP | 1 | 13140-1021 | 1 | KX80-A1 | |
| FORK,SHIFT | 1 | 13140-1029 | 1 | KX80-A2~ | |
| FORK,SHIFT,LOW,2ND,3D | 2 | 13140-1022 | 2 | ||
| RODSHIFT,SHORT | 3 | 13209-014 | 1 | ||
| DRUM ASSY,GEAR CHANGE | 4 | 13239-1021 | 1 | ||
| HOLDER,CHANGE DRUM | 5 | 13091-1037 | 1 | ||
| SCREW PAN HEAD 6X14 | 6 | 220B0614 | 1 | ||
| PIN-CHANGE DRUM | 7 | 92042-020 | 6 | ||
| ROD,SHIFT,10X90 | 8 | 49047-1009 | 1 |
| FORK,SHIFT,4TH& TOP | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KX80-A1 |
| FORK,SHIFT | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KX80-A2~ |
| FORK,SHIFT,LOW,2ND,3D | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RODSHIFT,SHORT | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DRUM ASSY,GEAR CHANGE | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,CHANGE DRUM | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X14 | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-CHANGE DRUM | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| ROD,SHIFT,10X90 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
