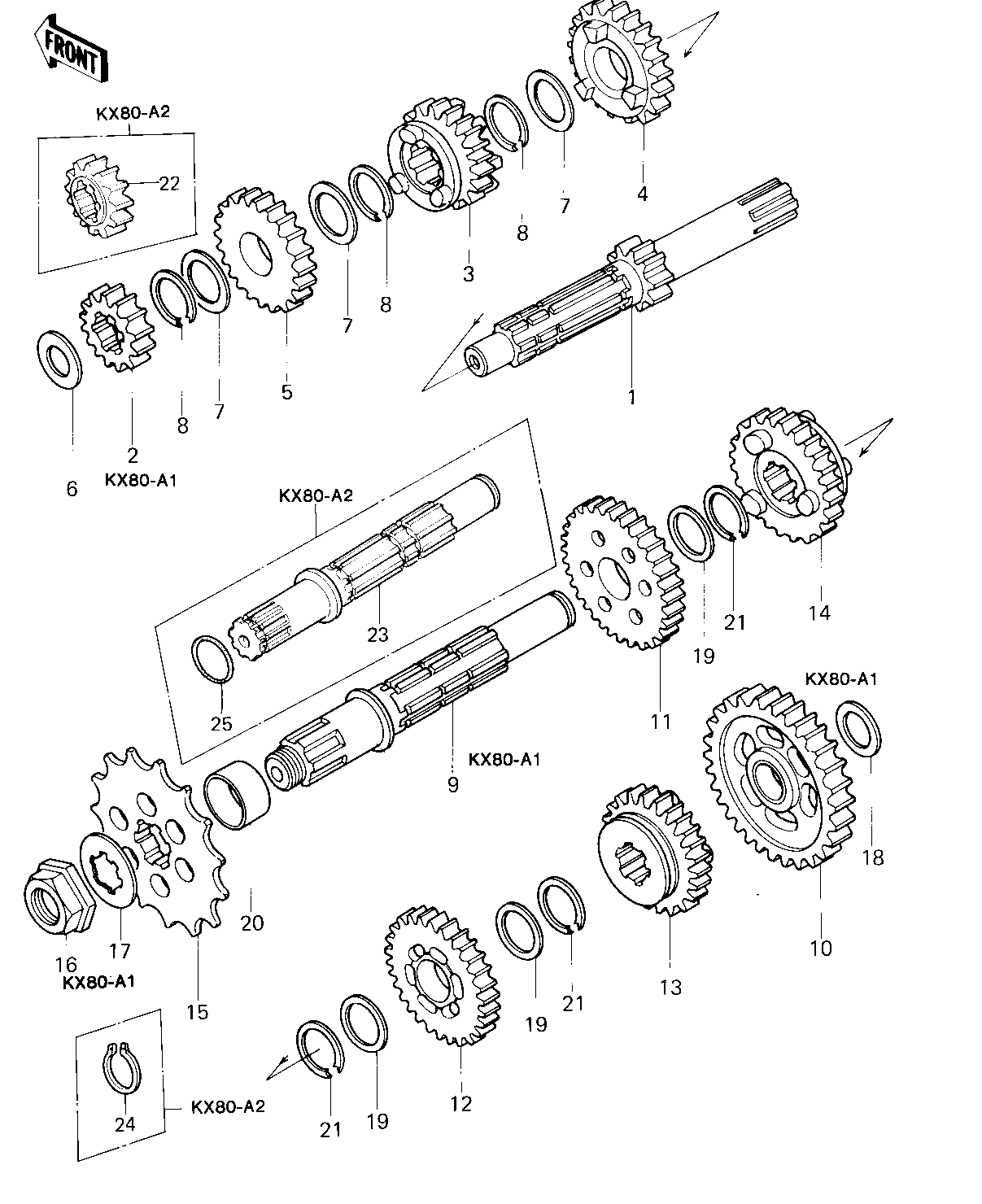

1979 KX80 - TRANSMISSION

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT,DRIVE 1 13127-1011 1 KX80-A1
SHAFT,DRIVE,14T 1 13127-1020 1 KX80-A2~
2ND GEAR,DRIVE SHAFT 2 13129-1106 1 KX80-A1
3RD GEAR,DRIVE SHAFT 3 13129-1108 1 KX80-A1
3RD GEAR,DRIVE SHAFT 3 13129-1151 1 KX80-A2~
4TH GEAR,DRIVE SHAFT 4 13129-1110 1
TOP GEAR,DRIVE SHAFT 5 13129-1112 1
WASHER PLAIN 12MM 6 92022-123 1 KX80-A1
SPACER,17.2X23X0.5 7 92026-1037 3
RING,SNAP 8 92033-1060 3
SHAFT,OUTPUT 9 13128-1018 1 KX80-A1
LOW GEAR,OUTPUT SHAFT 10 13129-1105 1 KX80-A1
LOW GEAR,OUTPUT SHAFT 10 13129-1152 1 KX80-A2~
2ND GEAR,OUTPUT SHAFT 11 13129-1107 1 KX80-A1
2ND GEAR,OUTPUT SHAFT 11 13129-1153 1 KX80-A2~
3RD GEAR,OUTPUT SHAFT 12 13129-1109 1
4TH GEAR,OUTPUT SHAFT 13 13129-1111 1
TOP GEAR,OUTPUT SHAFT 14 13129-1113 1
SPROCKET,ENGINE,14T 15 13144-1022 1
SPROCKET,ENGINE,13T 15 13144-1023 (1 OPTION
SPROCKET,ENGINE,15T 15 13144-1024 (1 OPTION
NUT,14M/M 16 92015-1062 1 KX80-A1
WASHER,SPLINE 17 92022-1113 1 KX80-A1
SPACER,15.3X22X1.0 18 92026-1036 1 KX80-A1
SPACER,18.2X24X0.5 19 92026-1039 3
COLLAR,ENG SPROCKET 20 92027-1077 1
CIRCLIP 21 92033-028 3
2ND GEAR,DRIVE SHAFT 22 13129-1150 1 KX80-A2~
SHAFT,OUTPUT 23 13128-1024 1 KX80-A2~
CIRCLIP, 20MM 24 480J2000 1 KX80-A2~
"0" RING 25 92055-022 1 KX80-A2~
