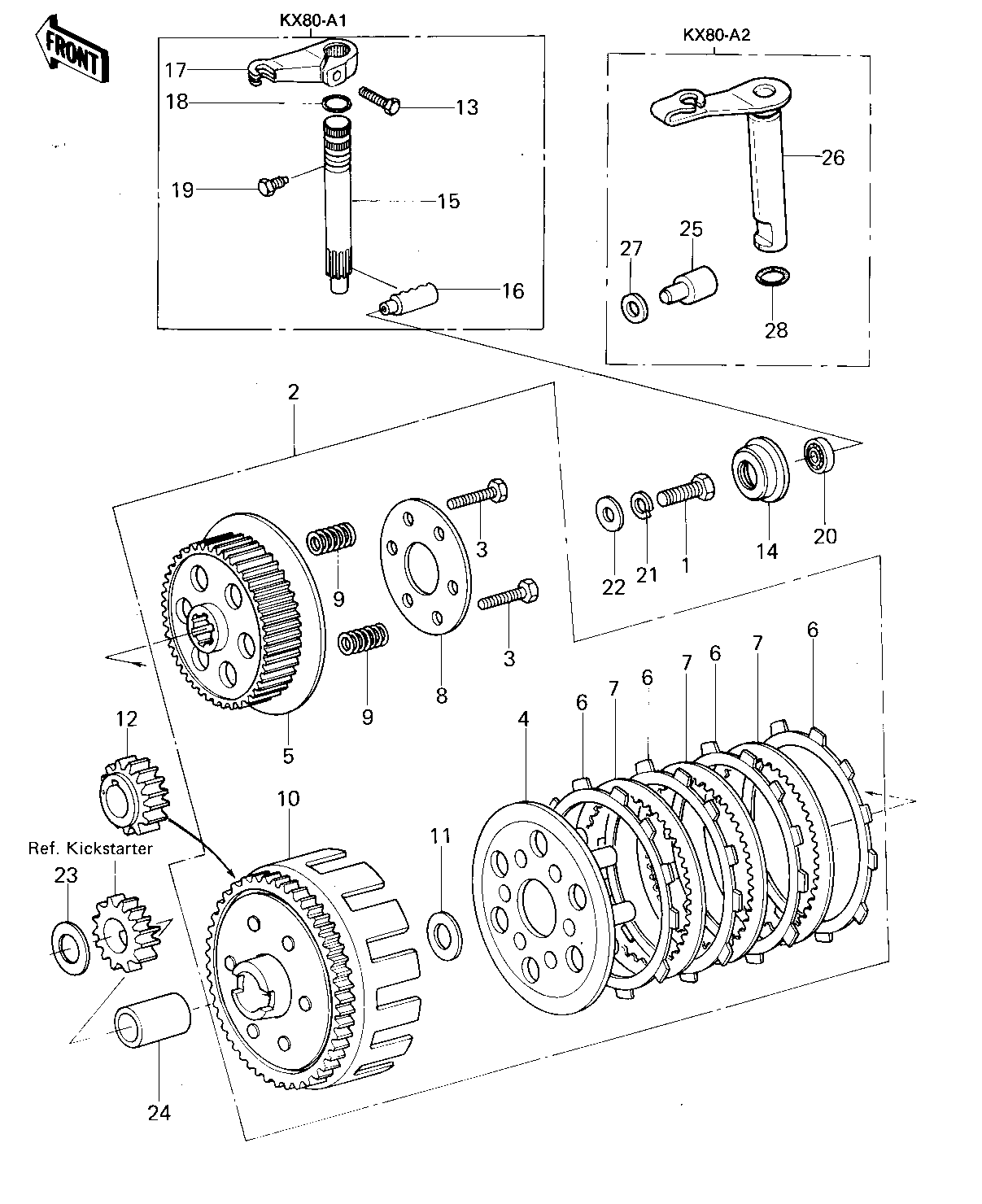

1979 KX80 - CLUTCH

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,8X20 1 115G0820 1
CLUTCH-ASSY 2 13081-1028 1 E/NO. ~002044
CLUTCH-ASSY 2 13081-1028 1 E/NO. 002045~
BOLT-UPSET 3 112G0516 6 KX80-A1
BOLT 3 110G0520 6 KX80-A2~
WHEEL,CLUTCH 4 13086-1002 1
HUB-CLUTCH 5 13087-1113 1
PLATE,CLUTCH FRICTION 6 13088-1010 4
PLATE-CLUTCH,STEEL 7 13089-1009 3
HOLDER,CLUTCH SPRING 8 13091-1115 1
SPRING,CLUTCH 9 92081-1143 6 KX80-A1
SPRING,CLUTCH 9 92081-1175 6 KX80-A2~
HOUSING,CLUTCH 10 13095-1018 1 E/NO. ~002044
HOUSING,CLUTCH 10 13095-1018 1 E/NO. 002045~
SPACER,17X30X2 11 92026-1034 1
GEAR,PRIMARY,22T 12 13097-1015 1 KX80-A1
GEAR,PRIMARY 12 13097-1021 1 KX80-A2~
BOLT-UPSET 13 112G0618 1 KX80-A1
HOLDER,CLUTCH PUSHER 14 13091-1038 1
SHAFT,CLUTCH RELEASE 15 13106-1003 1 KX80-A1
PUSHER,CLUTCH 16 13114-1003 1 KX80-A1
LEVER,CLUTCH RELEASE 17 13168-1023 1 KX80-A1
"O" RING,9MM 18 670B1509 1 KX80-A1
BOLT,CLUTCH RELEASE 19 92003-130 1 KX80-A1
BEARING-BALL 20 92045-1211 1
WASHER SPRING 8MM 21 461F0800 1
WASHER,8.5X20X1.6 22 92022-1561 1
WASHER,17.3X28X1.0 23 92022-255 1
BUSHING,CLUTCH 24 92028-1057 1
PUSHER,CLUTCH 25 13114-1004 1 KX80-A2~
LEVER,CLUTCH RELEASE 26 13236-1019 1 KX80-A2~
WASHER PLAIN 6MM 27 410B0600 AR KX80-A2~
"O" RING,8.8MM 28 92055-099 1 KX80-A2~
