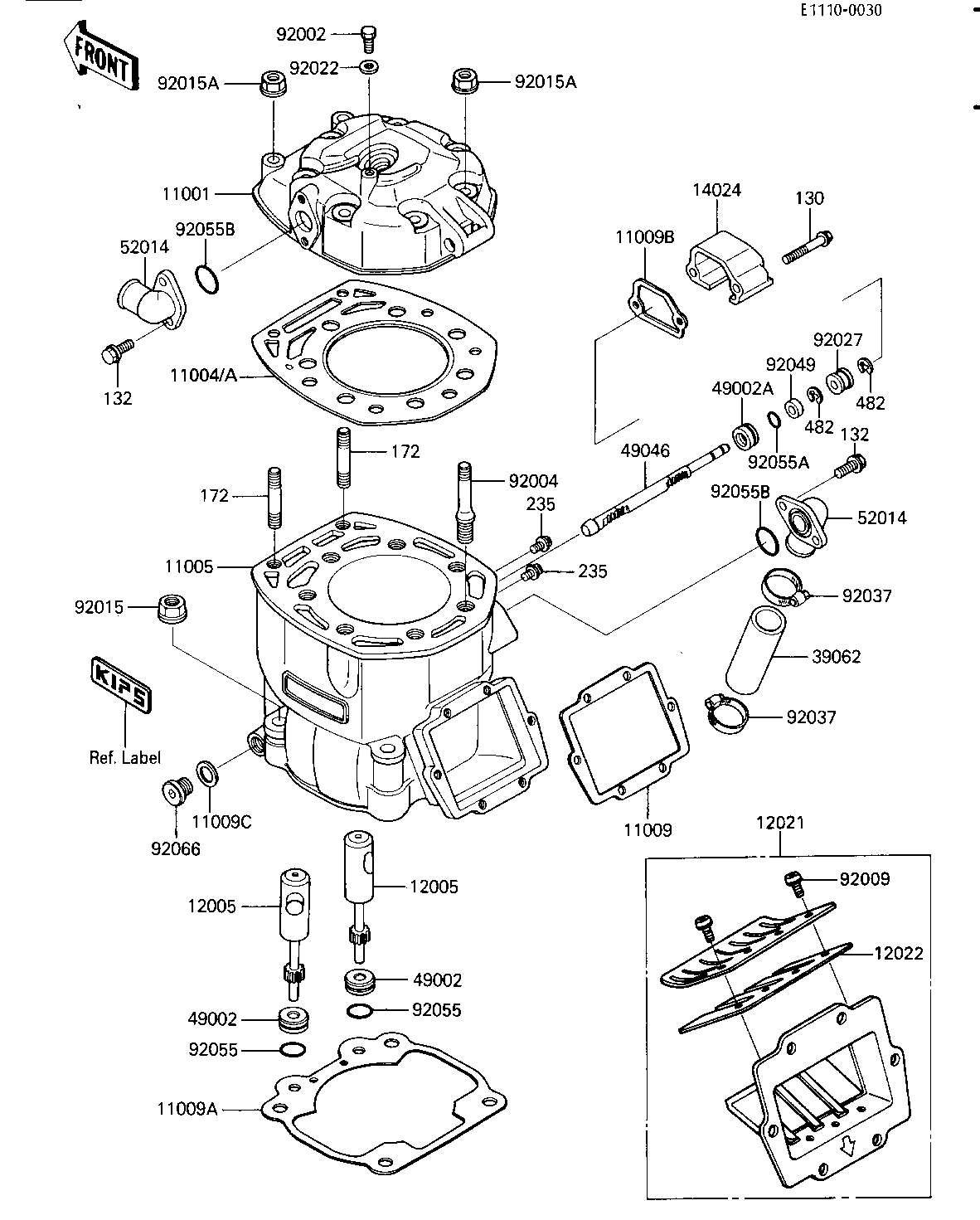

1986 KX500 - CYLINDER HEAD/CYLINDER/REED VALVE

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HEAD-CYLINDER 11001 11001-1214 1
GASKET-HEAD 11004 11004-1140 1
GASKET-HEAD,T=1.4 11004A 11004-1155 1 (OPTION)
CYLINDER-ENGINE 11005 11005-1469 1
GASKET,REED VALVE 11009 11009-1950 1
GASKET,CYLINDER BASE 11009A 11009-1537 1
GASKET,GOVERNOR COVER 11009B 11009-1960 1
GASKET-DRAIN PLUG 11009C 92065-073 1
VALVE-EXHAUST 12005 12005-1066 2
VALVE-ASSY-REED 12021 12021-1058 1
VALVE-REED 12022 12022-1017 2
COVER,GOVERNOR 14024 14024-1123 1
HOSE-COOLING,RADIATOR 39062 39062-1256 1
GUIDE-VALVE 49002 49002-1061 2
GUIDE-VALVE,ROD 49002A 49002-1062 1
ROD-GOVERNOR 49046 49046-1053 1
ELBOW,CYLINDER 52014 52014-1004 2
BOLT,6X10 92002 92002-1222 1
STUD,CYLINDER 92004 92004-1022 7
SCREW,REED VALVE 92009 92009-1014 8
NUT,10MM 92015 92015-1415 4
NUT-8MM 92015A 92015-1143 9
WASHER OIL PUMP BANJO 92022 92022-077 1
COLLAR 92027 92027-183 1
CLAMP,COOLING HOSE 92037 92037-1589 2
SEAL-OIL,RSO-5.5 11 4 92049 92049-1206 1
"0" RING 92055 92055-022 2
"0" RING 92055A 92055-025 1
"O" RING 92055B 92055-055 2
PLUG,12X10 92066 92066-1222 1
BOLT-FLANGED 130 130G0535 2
BOLT-FLANGED-SMALL 132 132G0616 4
STUD,8X35 172 92004-1009 2
SCREW-PAN-WP-CROS 235 235B0510 2
482K4000 (Canada) 482 482J4000 2
