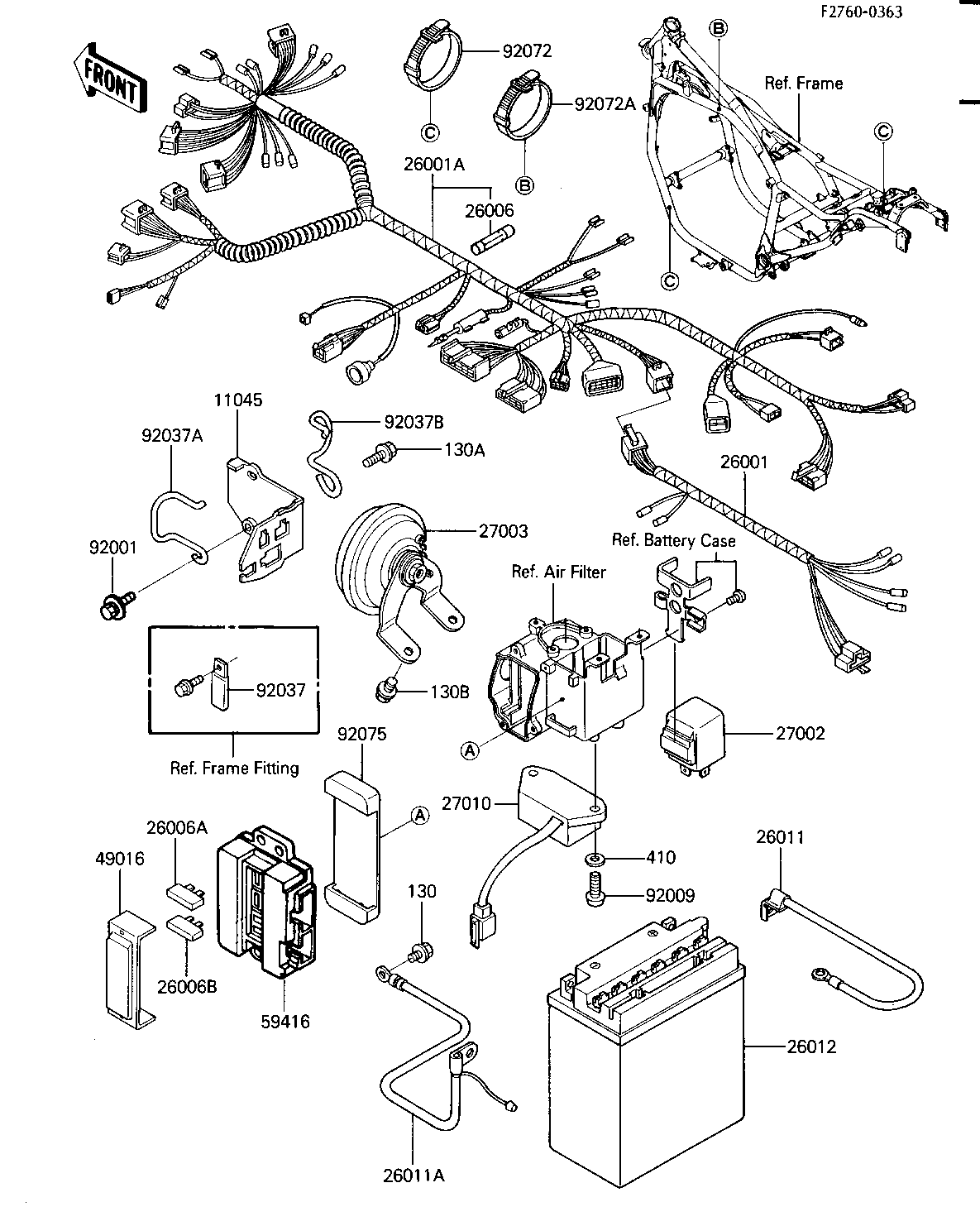

1986 ZL600 Eliminator - CHASSIS ELECTRICAL EQUIPMENT
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,COUPLER | 11045 | 11044-1879 | 1 | ||
| HARNESS,RR | 26001 | 26001-1770 | 1 | ||
| HARNESS,MAIN | 26001A | 26001-1797 | 1 | ||
| FUSE,10A,L=30M/M | 26006 | 26006-1002 | 1 | ||
| FUSE,30A-G | 26006A | 26006-1006 | 2 | ||
| FUSE,10A-R | 26006B | 26006-1007 | 4 | ||
| WIRE-LEAD,BATTERY(+) | 26011 | 26011-1356 | 1 | ||
| WIRE-LEAD,BATTERY GRO | 26011A | 26011-1195 | 1 | ||
| FB BAT FB12A-A | 26012 | 26012-1004 | 1 | ||
| RELAY-ASSY,TURN SIGNA | 27002 | 27002-1060 | 1 | ||
| HORN | 27003 | 27003-1243 | 1 | ||
| SWITCH,RESERVE LIGHTI | 27010 | 27010-1069 | 1 | ||
| COVER-SEAL,FUSE | 49016 | 49016-1106 | 1 | ||
| CASE-ELECTRIC,FUSE & | 59416 | 59416-1052 | 1 | ||
| BOLT,6X20 | 92001 | 92001-1765 | 1 | ||
| SCREW,TAPPING,6X20 | 92009 | 92009-1422 | 2 | ||
| CLAMP,HARNESS | 92037 | 92037-113 | 1 | ||
| CLAMP,LH | 92037A | 92037-1756 | 1 | ||
| CLAMP,RH | 92037B | 92037-1815 | 1 | ||
| BAND,MIDDLE | 92072 | 92072-031 | 2 | ||
| BAND,WIRING HARNESS | 92072A | 92072-056 | 1 | ||
| DAMPER,FUSE & RELAY B | 92075 | 92075-1688 | 1 | ||
| BOLT,FLANGED,6X8 | 130 | 130B0608 | 1 | ||
| BOLT-FLANGED,6X16 | 130A | 130B0616 | 1 | ||
| BOLT-FLANGED | 130B | 130D0612 | 2 | ||
| WASHER PLAIN 6MM | 410 | 410B0600 | 2 |
