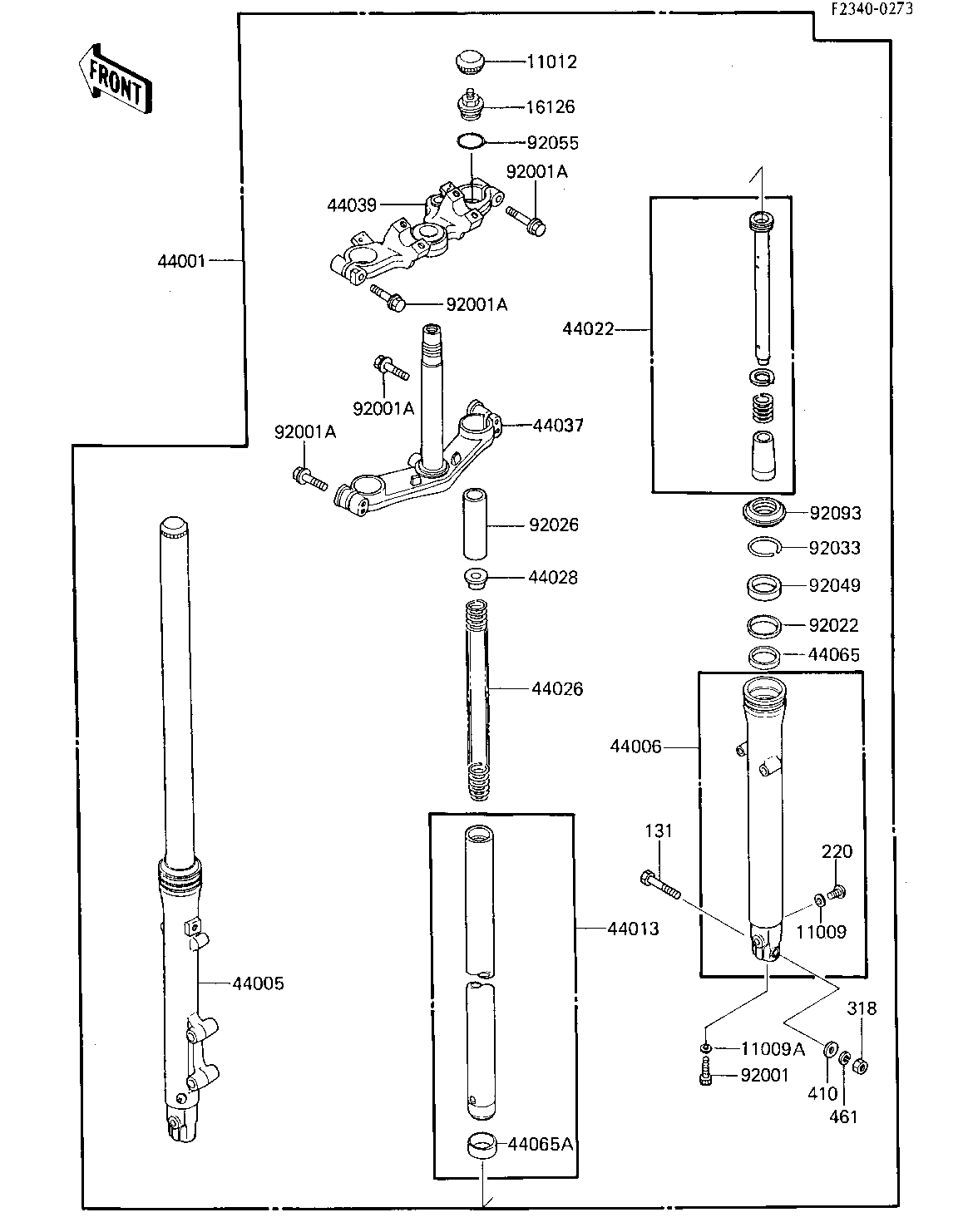

1986 ZL600 Eliminator - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET FORK DRAIN PLG 11009 44045-002 2
GASKET,FORK CYLINDER 11009A 44045-057 2
CAP,FORK TOP 11012 11012-1548 2
VALVE,AIR 16126 16126-1177 2
FORK-FRONT 44001 44001-1622 1
PIPE-LEFT FORK OUTER 44005 44005-1248 1
PIPE-RIGHT FORK OUTER 44006 44006-1247 1
PIPE-FORK INNER 44013 44013-1251 2
CYLINDER-FORK 44022 44022-1195 2
SPRING-FRONT FORK 44026 44026-1336 2
GUIDE-FORK SPRING 44028 44028-1058 2
HOLDER-FORK UNDER 44037 44037-1205 1
HOLDER-FORK UPPER 44039 44039-1134 1
BUSHING-FRONT FORK 44065 44065-1051 2
BUSHING-FRONT FORK 44065A 44065-1058 2
BOLT-FORK CYLINDER 92001 44041-040 2
BOLT,8X40 92001A 92001-1188 6
WASHER,FORK OUTER PIP 92022 92022-1455 2
SPACER,FORK SPRING 92026 92026-4002 2
SNAP RING,FORK OUTER 92033 92033-1047 2
SEAL-OIL,FORK OUTER T 92049 92049-1372 2
RING-O,FORK TOP 92055 92055-1361 2
SEAL,FORK OUTER TUBE 92093 92093-1314 2
BOLT 8X60 131 131G0860 1
SCREW PAN HEAD 4X8 220 220E0408 2
NUT 8MM 318 318G0800 1
WASHER PLAIN 8MM 410 410B0800 1
WASHER SPRING 8MM 461 461F0800 1
