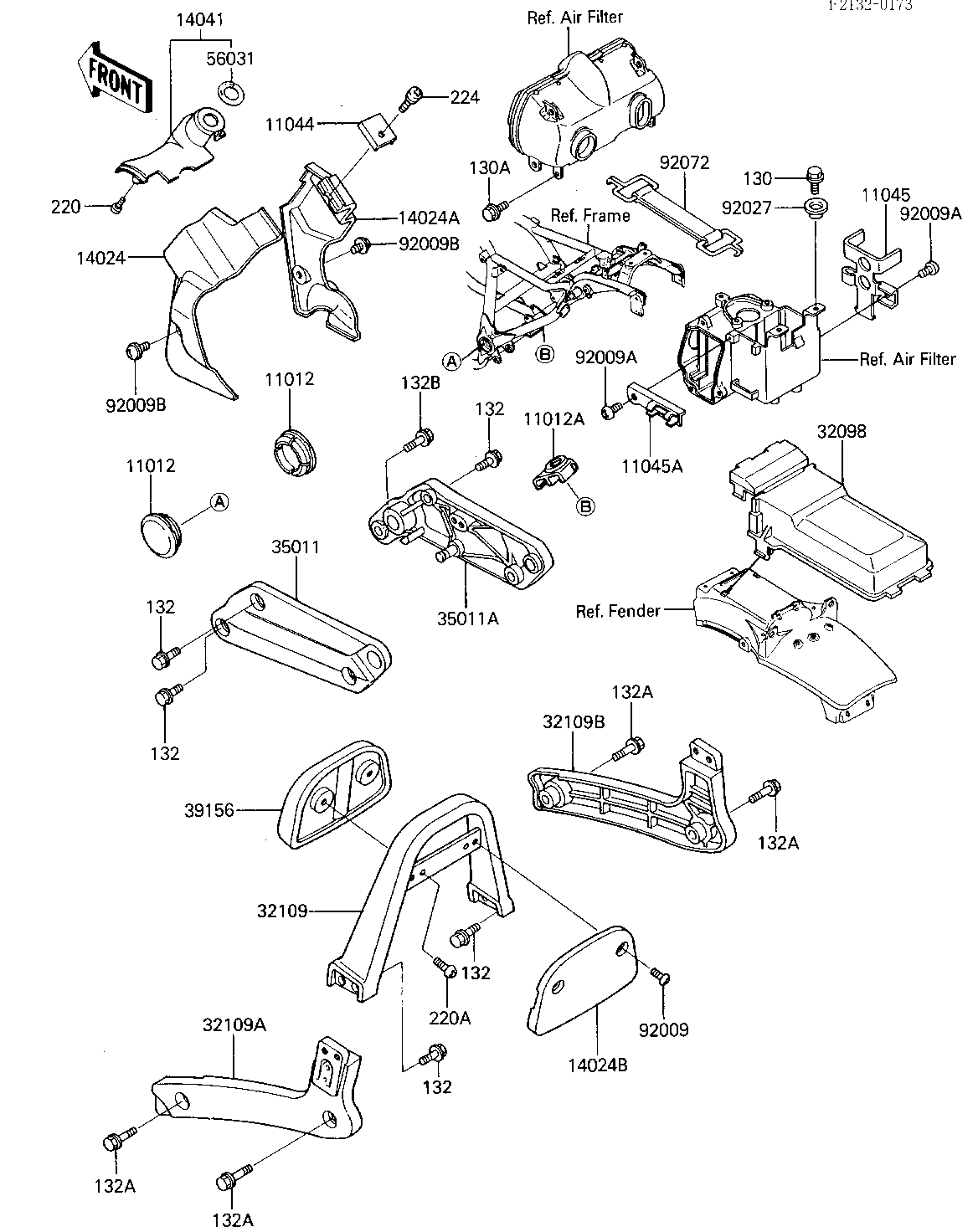

1986 ZL600 Eliminator - BATTERY CASE/TOOL CASE
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,SWING ARM | 11012 | 11012-1688 | 2 | ||
| CAP | 11012A | 11012-1554 | 1 | ||
| BRACKET,GUSSET COVER | 11044 | 11044-1293 | 1 | ||
| BRACKET,ELECTRIC BASE | 11045 | 11044-1810 | 1 | ||
| BRACKET,JUNCTION BOX | 11045A | 11045-1210 | 1 | ||
| COVER,HEAD GUSSET,LH | 14024 | 14024-1242 | 1 | ||
| COVER,HEAD GUSSET,RH | 14024A | 14024-1243 | 1 | ||
| COVER,FRAME GRIP | 14024B | 14024-1249 | 1 | ||
| COVER-COMP,HANDLE HOL | 14041 | 14041-1062 | 1 | ||
| CASE-TOOL | 32098 | 32098-1072 | 1 | ||
| GRIP-FRAME,UPP | 32109 | 32109-1141 | 1 | ||
| GRIP-FRAME,LWR,LH | 32109A | 32109-1150 | 1 | ||
| GRIP-FRAME,LWR,RH | 32109B | 32109-1151 | 1 | ||
| STAY,MUFFLER,LH | 35011 | 35011-1296 | 1 | ||
| STAY,MUFFLER,RH | 35011A | 35011-1297 | 1 | ||
| PAD,GRABRAIL | 39156 | 39156-1064 | 1 | ||
| LABEL-MANUAL,IGNITION | 56031 | 56031-1419 | 1 | ||
| SCREW,5X12,BLACK | 92009 | 92009-1182 | 2 | ||
| SCREW,TAPPING,6MM | 92009A | 92009-1261 | 2 | ||
| SCREW,6X10 | 92009B | 92009-1402 | 2 | ||
| COLLAR | 92027 | 92027-122 | 2 | ||
| BAND,BATTERY | 92072 | 92072-1097 | 1 | ||
| BOLT,FLANGED,6X10 | 130 | 130B0610 | 2 | ||
| BOLT-FLANGED,6X12 | 130A | 130C0612 | 2 | ||
| BOLT-FLANGED-SMALL | 132 | 132E0825 | 7 | ||
| BOLT-FLANGED-SMALL | 132A | 132E0830 | 4 | ||
| BOLT-FLANGED-SMALL | 132B | 132E0835 | 1 | ||
| SCREW PAN HEAD 5X10 | 220 | 220B0510 | 2 | ||
| SCREW PAN HEAD 6X12 | 220A | 220B0612 | 2 | ||
| SCREW (5 X 16) | 224 | 224C0516 | 1 |
