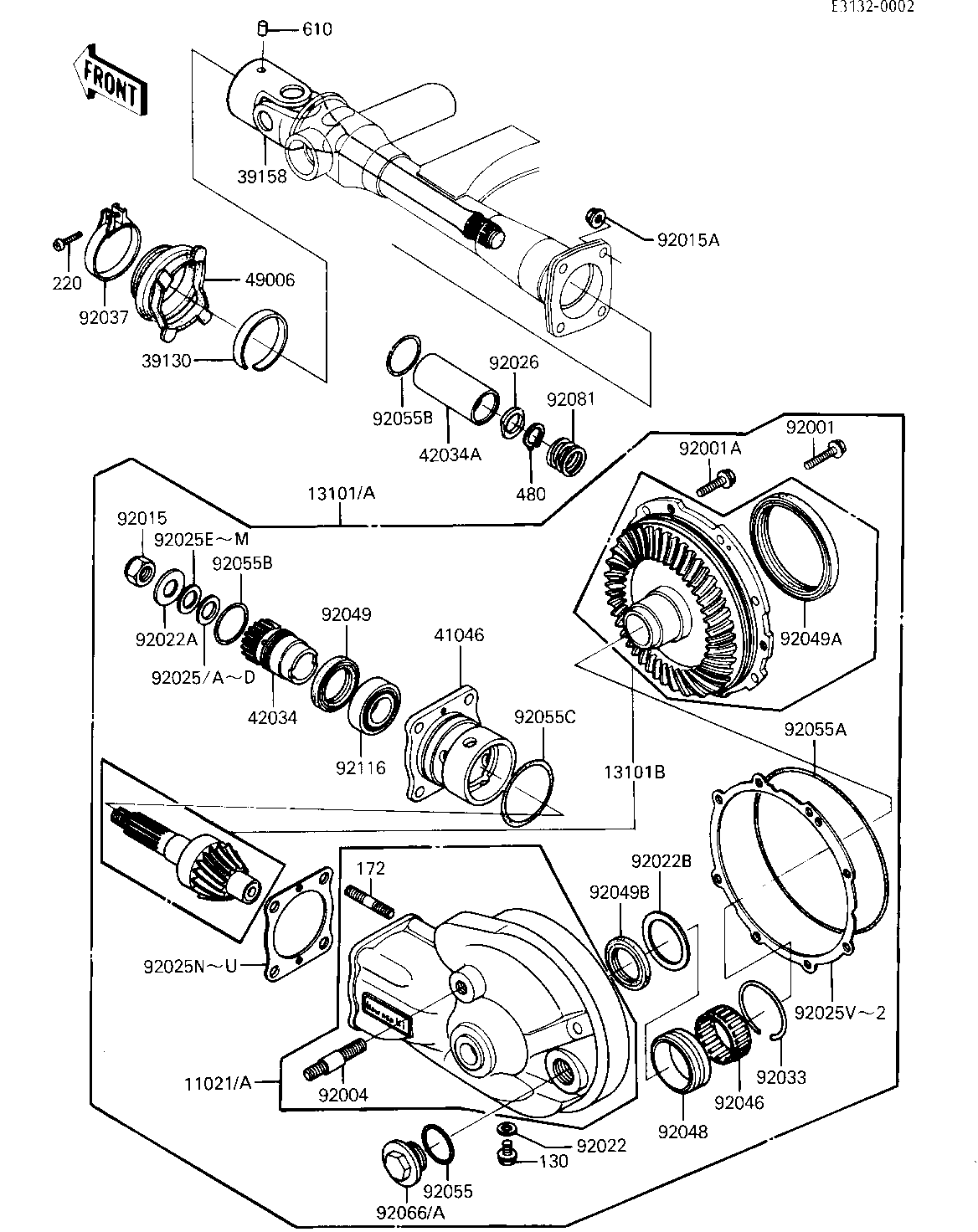

1986 ZL600 Eliminator - DRIVE SHAFT/FINAL GEARS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-ASSY,FINAL GEAR, 11021 11021-1015-7J 1
CASE-ASSY,FINAL GEAR, 11021A 11021-1015-7J 1
GEAR-ASSY,FINAL,M.SIL 13101 13101-1024-7J 1
GEAR-ASSY,FINAL,M.SIL 13101A 13101-1024-7J 1
GEAR-ASSY,FINAL BEVEL 13101B 13101-5035 1
SPRING,LEAF 39130 39130-1002 1
SHAFT-ASSY-DRIVE 39158 39158-1060 1
HOUSING-BEARING 41046 41046-1015 1
COUPLING,DRIVE SHAFT, 42034 42034-1030 1
COUPLING,DRIVE SHAFT, 42034A 42034-1031 1
BOOT,PROPELLER SHAFT 49006 49006-1059 1
BOLT,8X28 92001 92001-1095 6
BOLT, FLANGED, 8X25 92001A 92001-1324 2
STUD,RR SHOCKABSORBER 92004 92004-1047 1
NUT,12MM 92015 92015-1182 1
NUT,FLANGED,8MM 92015A 92015-1408 4
WASHER 92022 92022-1086 1
WASHER,12X3X25X3.2 92022A 92022-1293 1
WASHER,39X49.5X1 92022B 92022-1294 1
SHIM,12.5X17X1.30 92025 92025-1282 AR
SHIM,12.5X17X1.32 92025A 92025-1283 AR
SHIM,12.5X17X1.34 92025B 92025-1284 AR
SHIM,12.5X17X1.36 92025C 92025-1285 AR
SHIM,12.5X17X1.38 92025D 92025-1286 AR
SHIM,12.5X17X0.1 92025E 92025-1287 AR
SHIM,12.5X17X0.2 92025F 92025-1288 AR
SHIM,12X5X17X0.3 92025G 92025-1289 AR
SHIM,12.5X17X0.5 92025H 92025-1290 AR
SHIM,12.5X17X0.6 92025I 92025-1291 AR
SHIM,12.5X17X0.7 92025J 92025-1292 AR
SHIM,12.5X17X0.8 92025K 92025-1293 AR
SHIM,12.5X17X0.9 92025L 92025-1294 AR
SHIM,12.5X17X1.0 92025M 92025-1295 AR
SHIM,T=0.15 92025N 92025-1312 AR
SHIM,T=0.5 92025O 92025-1313 AR
SHIM,T=0.6 92025P 92025-1314 AR
SHIM,T=0.7 92025Q 92025-1315 AR
SHIM,T=0.8 92025R 92025-1316 AR
SHIM,T=0.9 92025S 92025-1317 AR
SHIM,T=1.0 92025T 92025-1318 AR
SHIM,T=1.2 92025U 92025-1319 AR
SHIM,T=0.15 92025V 92025-1336 AR
SHIM,T=0.5 92025W 92025-1337 AR
SHIM,T=0.6 92025X 92025-1338 AR
SHIM,T=0.7 92025Y 92025-1339 AR
SHIM,T=0.8 92025Z 92025-1340 AR
SHIM,T=0.9 920250 92025-1341 AR
SHIM,T=1.0 920251 92025-1342 AR
SHIM,T=1.2 920252 92025-1343 AR
SPACER,DRIVE SHAFT 92026 92026-1106 1
RING-SNAP,52MM 92033 92033-1074 1
CLAMP,BOOT FITTING 92037 92037-1112 1
BRG,NDL,KT384620EG-B2 92046 92046-1037 1
RACE,ORT465021E01 92048 92048-1019 1
SEAL-OIL,SC28438 92049 92049-1084 1
SEAL-OIL,SC759510 92049A 92049-1085 1
SEAL-OIL,SC32435.5 92049B 92049-1155 1
"O" RING,VLV ADJUST 92055 92055-1005 1
"0" RING,I.D=150.4MM 92055A 92055-1039 1
RING-0,27MM 92055B 92055-1119 2
RING-0,55MM 92055C 92055-1120 1
PLUG,OIL FILLER CAP,M 92066 92066-1006-7J 1
SPRING,DRIVE SHAFT 92081 92081-1427 1
BEARING-ROLLER,4T3200 92116 92116-1010 1
BOLT,FLANGE 130 130B0812 1
STUD 8X30 172 172G0830 4
SCREW-PAN-CROS 220 220B0430 1
CIRCLIP, 20MM 480 480J2000 1
PIN-DOWEL,4X6 610 610A0406 1
