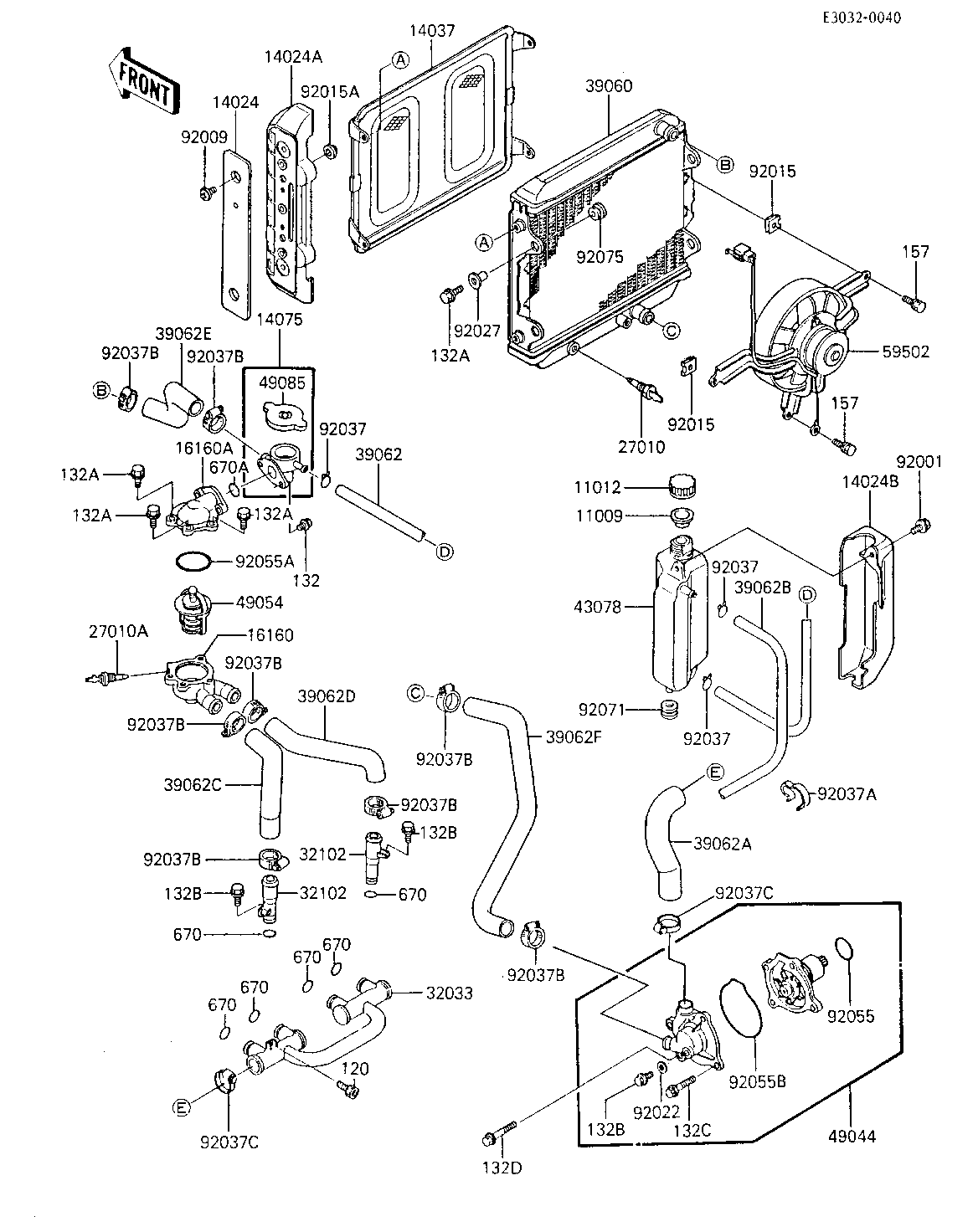

1986 ZL600 Eliminator - RADIATOR/FAN/WATER PUMP

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVE TANK 11009 11009-1145 1
CAP,RESERVE TANK 11012 11012-1084 1
COVER,RADIATOR,UPP 14024 14024-1220 2
COVER,RADIATOR 14024A 14024-1221 2
COVER,RESERVOIR 14024B 14024-1222 1
SCREEN 14037 14037-1080 1
CAP-ASSY,RADIATOR 14075 14075-1085 1
BODY,THERMOSTAT,LWR 16160 16160-1112 1
BODY,THERMOSTAT,UPP 16160A 16160-1113 1
SWITCH,FAN 27010 27010-1167 1
SWITCH 27010A 27010-1173 1
PIPE 32033 32033-1593 1
PIPE 32102 32102-1043 2
RADIATOR 39060 39060-1070 1
HOSE-COOLING,5.5X10.5 39062 39062-1144 1
HOSE-COOLING 39062A 39062-1111 1
HOSE-COOLING,RESERVOI 39062B 39062-1220 1
HOSE-COOLING,HEAD-THE 39062C 39062-1178 1
HOSE-COOLING,HEAD-THE 39062D 39062-1179 1
HOSE-COOLING,CAP-RADI 39062E 39062-1180 1
HOSE-COOLING,RADIATOR 39062F 39062-1181 1
RESERVOIR 43078 43078-1072 1
PUMP-WATER 49044 49044-1054 1
THERMOSTAT 49054 49054-1055 1
CAP-ASSY-PRESSURE 4908 49085-1053 1
FAN-ASSY 59502 59502-1064 1
BOLT,6X16 92001 92001-1860 1
SCREW,6X10 92009 92009-1286 4
NUT 92015 92015-1487 2
NUT,LOCK,3MM 92015A 92018-005 6
WASHER,6MM 92022 92022-1627 1
COLLAR 92027 92027-194 4
CLAMP,CHAIN OILER 92037 92037-147 3
CLAMP 92037A 92037-1552 1
CLAMP,COOLING HOSE 92037B 92037-1589 8
CLAMP,COOLING HOSE 92037C 92037-1600 2
RING-O,33MM 92055 92055-1266 1
RING-O,45MM 92055A 92055-1279 1
RING-O,WATER PUMP 92055B 92055-1315 1
GROMMET,RESERVIOR TAN 92071 92071-1115 1
DAMPER RUBBER 92075 92075-277 4
BOLT-SOCKET 120 120S0612 2
BOLT-FLANGED-SMALL 132 132G0616 2
BOLT-FLANGED-SMALL 132A 132G0620 8
BOLT-FLANGED-SMALL 132B 132J0612 3
BOLT-FLANGED-SMALL 132C 132J0625 3
BOLT-FLANGED-SMALL 132D 132J0645 1
BOLT-WSP 157 157J0616 3
"0" RING,16MM 670 670B2016 6
"0" RING,20MM 670A 670B2020 1
