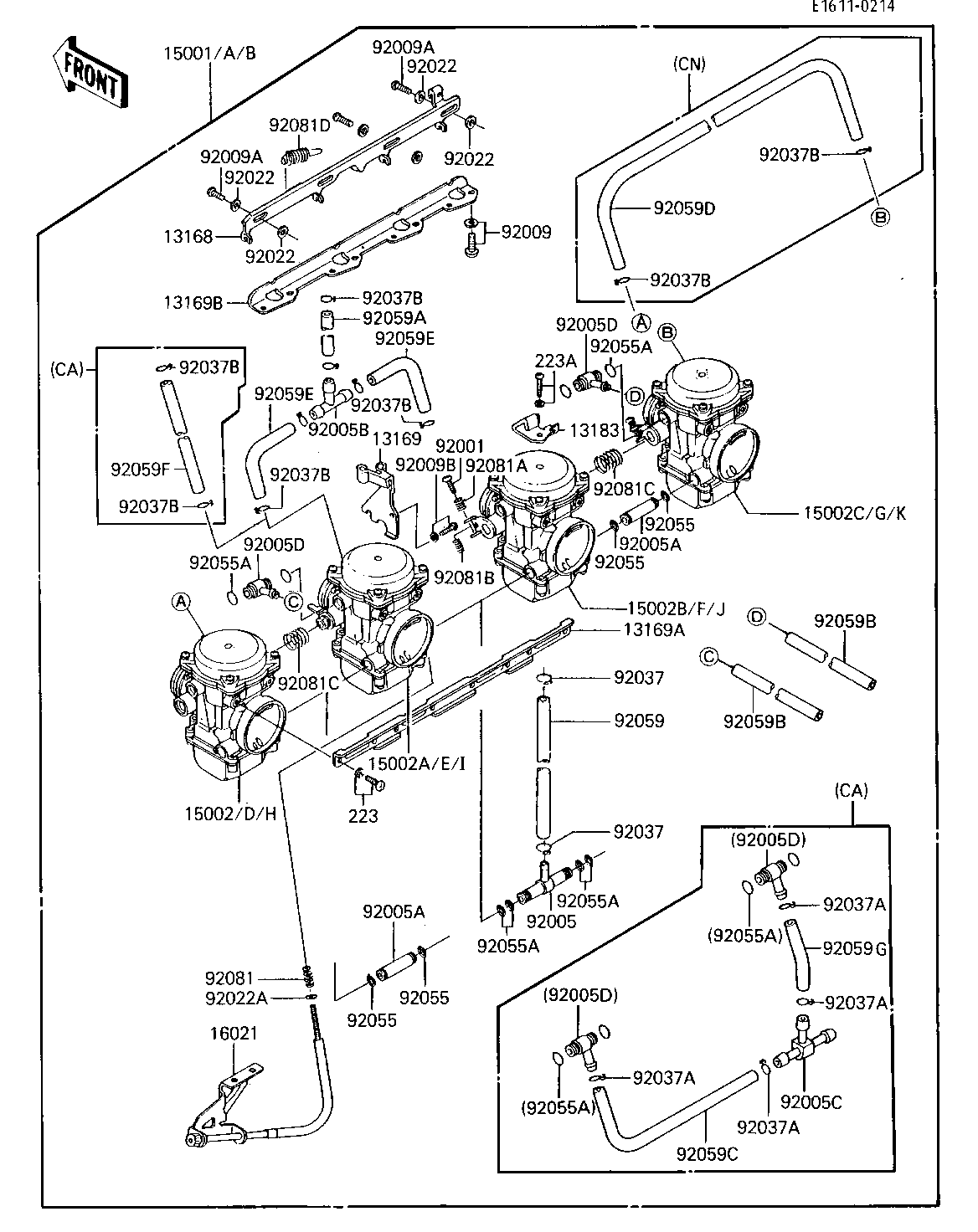

1986 ZL600 Eliminator - CARBURETOR ASSY

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER,STARTER 13168 13168-1280 1
PLATE,THROTTLE CABLE 13169 13169-1962 1
PLATE,CARBURETOR STAY 13169A 13169-1963 1
PLATE,CARBURETOR STAY 13169B 13169-1964 1
PLATE 13183 13183-1033 1
CARBURETOR-ASSY 15001 15001-1234 1 US
CARBURETOR-ASSY 15001A 15001-1235 1 CA
CARBURETOR-ASSY (Canada) 15001B 15001-1268 1 CN
CARBURETOR,LH,OUTSIDE 15002 15002-1334 1 US
CARBURETOR,LH,INSIDE 15002A 15002-1335 1 US
CARBURETOR,RH,INSIDE 15002B 15002-1336 1 US
CARBURETOR,RH,OUTSIDE 15002C 15002-1337 1 US
CARBURETOR,LH,OUTSIDE (Canada) 15002D 15002-1338 1 CN
CARBURETOR,LH,INSIDE (Canada) 15002E 15002-1339 1 CN
CARBURETOR,RH,INSIDE (Canada) 15002F 15002-1340 1 CN
CARBURETOR,RH,OUTSIDE (Canada) 15002G 15002-1341 1 CN
CARBURETOR 15002H 15002-1342 1 CA
CARBURETOR 15002I 15002-1343 1 CA
CARBURETOR 15002J 15002-1344 1 CA
CARBURETOR 15002K 15002-1345 1 CA
SCREW-THROTTLE STOP 16021 16021-1114 1
BOLT,THROTTLE ADJUST 92001 92001-1998 3
FITTING,FUEL,T-TYPE 92005 92005-1108 1
FITTING,FUEL,I-TYPE 92005A 92005-1109 2
FITTING,FUEL,T-TYPE 92005B 92005-1112 1 CN
FITTING,T-TYPE 92005C 92005-1135 1 CA
FITTING,T-TYPE 92005D 92005-1125 2
SCREW,6X16 92009 92009-1129 8
SCREW 92009A 92009-1262 3
SCREW 92009B 92009-1365 1
WASHER,6.1X11X0.8,POL 92022 92022-1199 6
WASHER,PLAIN,STOP SPR 92022A 92022-1480 1
CLAMP,FUEL INLET TUBE 92037 92037-1075 2
CLAMP,TUBE 92037A 92037-1194 4 CA
CLAMP,TUBE,OVERFLOW 92037B 92037-1477 2 CA
CLAMP,TUBE,OVERFLOW 92037B 92037-1477 6 CA
CLAMP,TUBE,OVERFLOW 92037B 92037-1477 8 CA
"O" RING 92055 92055-1004 4
RING-O,FUEL FITTING 92055A 92055-1223 8
TUBE,FUEL INLET 92059 92059-1029 1
TUBE,5X9X200 92059A 92059-1173 1 CN
TUBE,6.5X9.5X290 92059B 92059-1376 2 CN
TUBE,7X11X260 92059C 92059-1639 1 CA
TUBE,5X9X320 92059D 92059-1626 1 CN
TUBE,5X9X90 92059E 92059-1627 2 CN
TUBE,5X9X120 92059F 92059-1713 1 CA
TUBE 92059G 92059-1735 1 CA
SPRING,THROTTLE STOP 92081 92081-1617 1
SPRING,THROTTLE ADJUS 92081A 92081-1620 3
SPRING,THROTTLE ADJUS 92081B 92081-1621 3
SPRING,THROTTLE ADJUS 92081C 92081-1622 2
SPRING,STARTER LEVER 92081D 92081-1913 1
SCREW-PAN-WS-CROS 223 223C0510 8
SCREW-PAN-WS-CROS 223A 223D0410 1
