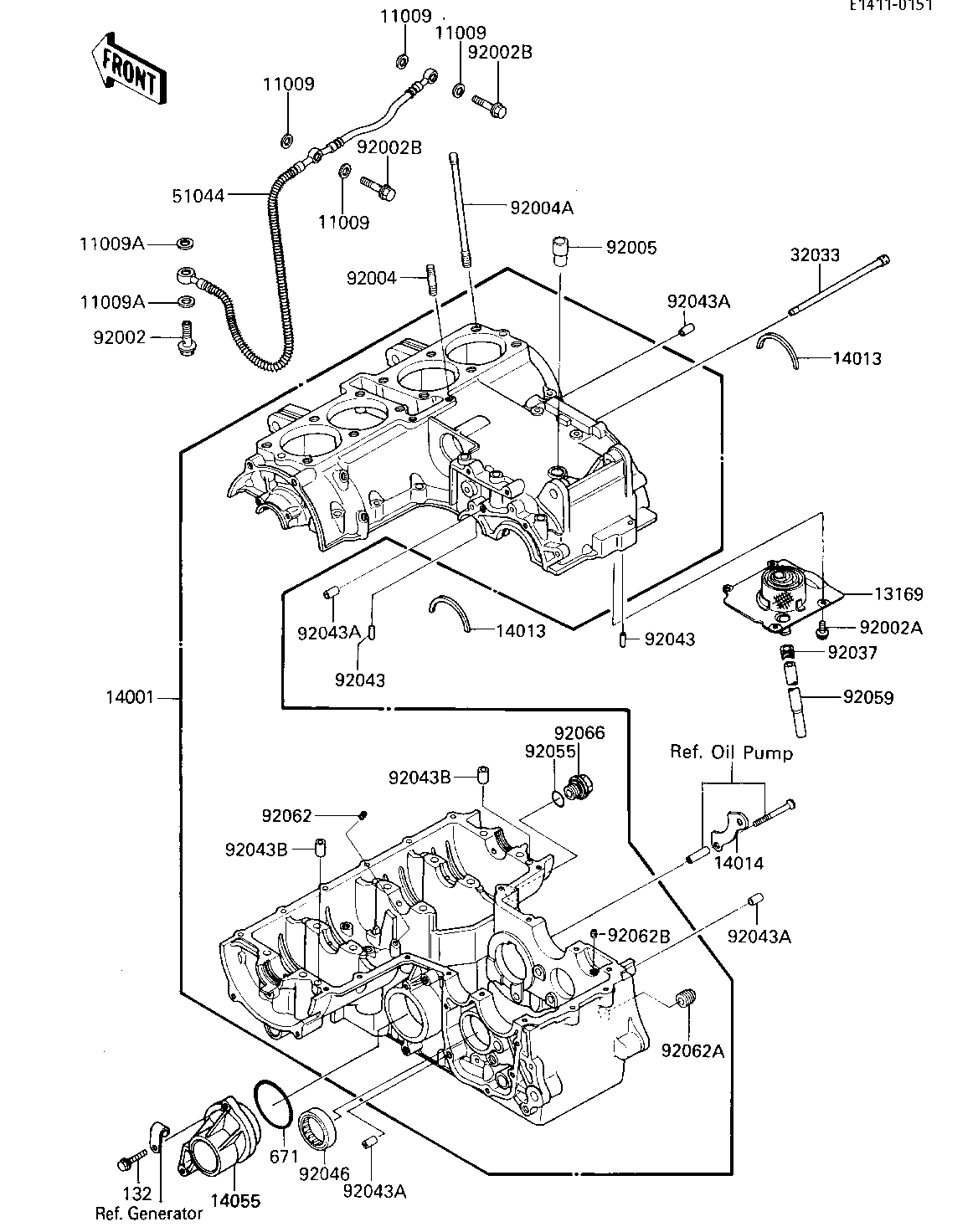

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,OIL PIPE,8.2X1 | 11009 | 11009-1344 | 4 | ||
| GASKET,12.4X17X1.5 | 11009A | 11009-1376 | 2 | ||
| PLATE,BREATHER | 13169 | 13169-1966 | 1 | ||
| SET-CRANKCASE | 14001 | 14001-5217 | 1 | ||
| RING BEARING SETTING | 14013 | 14013-004 | 2 | ||
| PLATE,POSITION | 14014 | 14014-1006 | 1 | ||
| CASE-GEAR | 14055 | 14055-1078 | 1 | ||
| PIPE,OIL | 32033 | 32033-1858 | 1 | ||
| TUBE-ASSY | 51044 | 51044-1071 | 1 | ||
| BOLT,BANJO,12X23 | 92002 | 92001-1871 | 1 | ||
| BOLT,6X10 | 92002A | 92002-1449 | 4 | ||
| BOLT | 92002B | 92002-1858 | 2 | ||
| STUD | 92004 | 92004-059 | 2 | ||
| STUD | 92004A | 92004-1161 | 12 | ||
| FITTING,BREATHER | 92005 | 92005-1129 | 1 | ||
| CLAMP | 92037 | 92037-1181 | 1 | ||
| PIN DOWEL 6MM | 92043 | 92042-016 | 2 | ||
| PIN,DOWEL,6.2X8X14 | 92043A | 92043-1263 | 4 | ||
| PIN,DOWEL,8.2X10X14 | 92043B | 92043-1264 | 2 | ||
| BRG,NEDL,37BTM4312 | 92046 | 92046-051 | 1 | ||
| RING-O | 92055 | 92055-1146 | 1 | ||
| TUBE | 92059 | 92059-1544 | 1 | ||
| NOZZLE,OIL BIAS | 92062 | 92062-011 | 1 | ||
| NOZZLE | 92062A | 92062-014 | 1 | ||
| NOZZLE | 92062B | 92062-015 | 1 | ||
| PLUG,MAIN GALLARY,18X | 92066 | 92066-1096 | 1 | ||
| BOLT-FLANGED-SMALL | 132 | 132J0625 | 2 | ||
| "0" RING,55MM | 671 | 671B2555 | 1 |
| GASKET,OIL PIPE,8.2X1 | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| GASKET,12.4X17X1.5 | |
| REF # | 11009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLATE,BREATHER | |
| REF # | 13169 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SET-CRANKCASE | |
| REF # | 14001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING BEARING SETTING | |
| REF # | 14013 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLATE,POSITION | |
| REF # | 14014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-GEAR | |
| REF # | 14055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE,OIL | |
| REF # | 32033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-ASSY | |
| REF # | 51044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,BANJO,12X23 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X10 | |
| REF # | 92002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92002B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| STUD | |
| REF # | 92004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| STUD | |
| REF # | 92004A |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | |
| REMARKS | |
| FITTING,BREATHER | |
| REF # | 92005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN DOWEL 6MM | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN,DOWEL,6.2X8X14 | |
| REF # | 92043A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PIN,DOWEL,8.2X10X14 | |
| REF # | 92043B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRG,NEDL,37BTM4312 | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE | |
| REF # | 92059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NOZZLE,OIL BIAS | |
| REF # | 92062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NOZZLE | |
| REF # | 92062A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NOZZLE | |
| REF # | 92062B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG,MAIN GALLARY,18X | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| "0" RING,55MM | |
| REF # | 671 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
