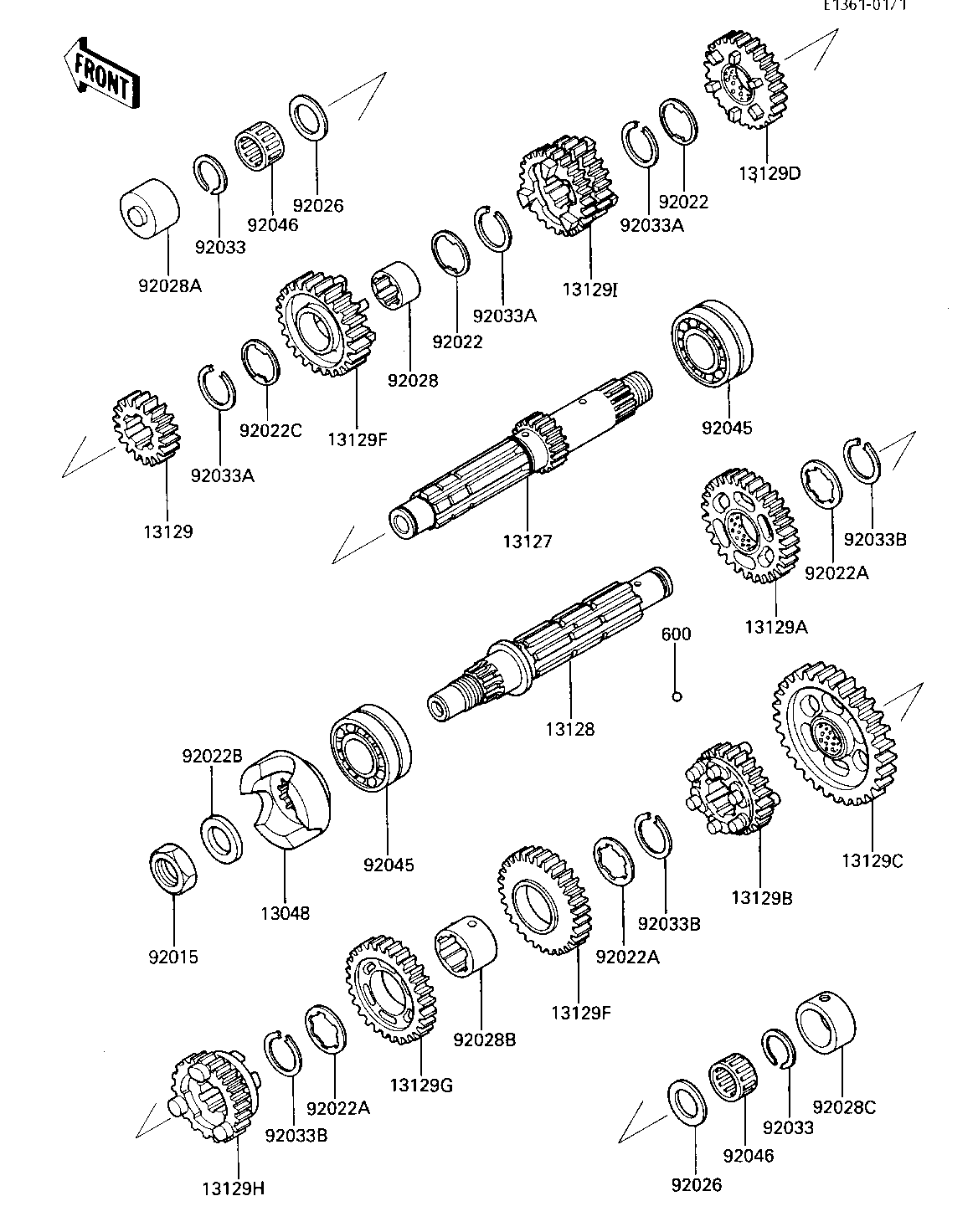

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAM-DAMPER | 13048 | 13048-1067 | 1 | ||
| SHAFT-TRANSMISSION IN | 13127 | 13127-1136 | 1 | ||
| SHAFT-TRANSMISSION OU | 13128 | 13128-1133 | 1 | ||
| 2ND GEAR,DRIVE SHAFT | 13129 | 13129-1077 | 1 | ||
| 2ND GEAR,OUTPUT,32T | 13129A | 13129-1078 | 1 | ||
| 5TH GEAR,OUTPUT,25T | 13129B | 13129-1083 | 1 | ||
| GEAR,OUTPUT LOW,36T | 13129C | 13129-1564 | 1 | ||
| GEAR,INPUT 5TH,26T | 13129D | 13129-1657 | 1 | ||
| GEAR,INPUT TOP,27T | 13129E | 13129-1658 | 1 | ||
| GEAR,OUTPUT 3RD,29T | 13129F | 13129-1659 | 1 | ||
| GEAR,OUTPUT 4TH,27T | 13129G | 13129-1660 | 1 | ||
| GEAR,OUTPUT TOP,23T | 13129H | 13129-1662 | 1 | ||
| GEAR INPUT 3RD&4TH,21 | 13129I | 13260-1195 | 1 | ||
| NUT 20MM | 92015 | 92016-028 | 1 | ||
| WASHER,LOCK,30X1.OT | 92022 | 92022-1072 | 2 | ||
| WASHER,LOCK,1.0T | 92022A | 92022-1139 | 3 | ||
| WASHER,20.3X32X4.5 | 92022B | 92022-1692 | 1 | ||
| WASHER-LOCK | 92022C | 92024-033 | 1 | ||
| SPACER,20.3X30X2T | 92026 | 92026-1022 | 2 | ||
| BUSHING,INPUT TOP GEA | 92028 | 92028-1552 | 1 | ||
| BUSHING,INPUT SHAFT | 92028A | 92028-1186 | 1 | ||
| BUSHING | 92028B | 92028-1364 | 1 | ||
| BUSHING,OUTPUT SHAFT | 92028C | 92028-180 | 1 | ||
| CIRCLIP | 92033 | 92033-015 | 2 | ||
| CIRCLIP | 92033A | 92033-026 | 3 | ||
| SNAP RING,25.9X1.2T | 92033B | 92033-1037 | 3 | ||
| BEARING,BALL | 92045 | 92045-035 | 2 | ||
| BEARING,VS20/14A | 92046 | 92046-1030 | 2 | ||
| BALL STEEL 5/32' | 600 | 600A0500 | 3 |
| CAM-DAMPER | |
| REF # | 13048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-TRANSMISSION IN | |
| REF # | 13127 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-TRANSMISSION OU | |
| REF # | 13128 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 2ND GEAR,DRIVE SHAFT | |
| REF # | 13129 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 2ND GEAR,OUTPUT,32T | |
| REF # | 13129A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 5TH GEAR,OUTPUT,25T | |
| REF # | 13129B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT LOW,36T | |
| REF # | 13129C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 5TH,26T | |
| REF # | 13129D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT TOP,27T | |
| REF # | 13129E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 3RD,29T | |
| REF # | 13129F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 4TH,27T | |
| REF # | 13129G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT TOP,23T | |
| REF # | 13129H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR INPUT 3RD&4TH,21 | |
| REF # | 13129I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT 20MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,LOCK,30X1.OT | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,LOCK,1.0T | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER,20.3X32X4.5 | |
| REF # | 92022B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-LOCK | |
| REF # | 92022C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER,20.3X30X2T | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BUSHING,INPUT TOP GEA | |
| REF # | 92028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING,INPUT SHAFT | |
| REF # | 92028A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING | |
| REF # | 92028B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING,OUTPUT SHAFT | |
| REF # | 92028C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP | |
| REF # | 92033A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SNAP RING,25.9X1.2T | |
| REF # | 92033B |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BEARING,BALL | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BEARING,VS20/14A | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BALL STEEL 5/32' | |
| REF # | 600 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
