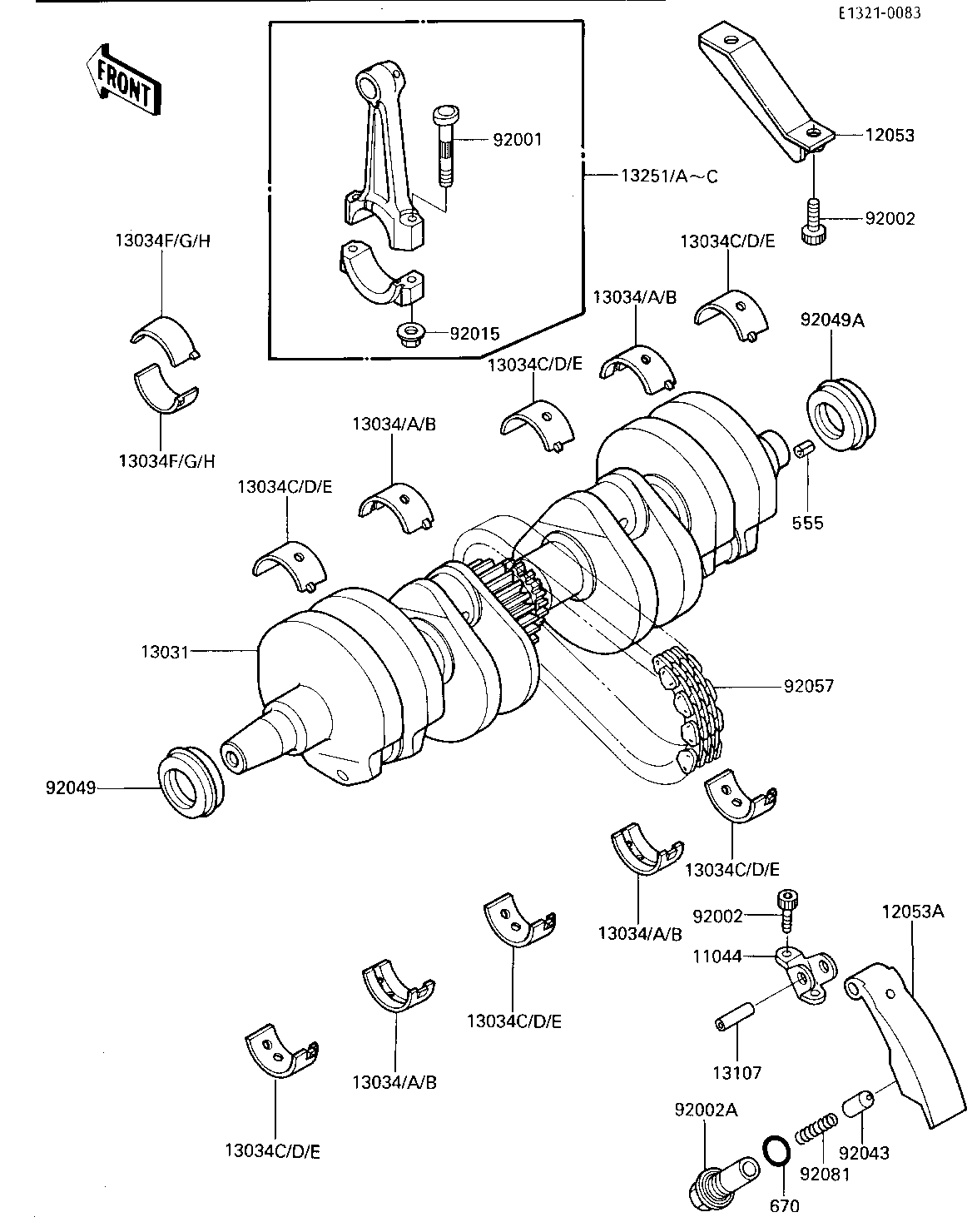

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,CHAIN GUIDE | 11044 | 11044-1075 | 1 | ||
| GUIDE-CHAIN,UPP | 12053 | 12053-1156 | 1 | ||
| GUIDE-CHAIN,LWR | 12053A | 12053-1157 | 1 | ||
| CRANKSHAFT-COMP | 13031 | 13031-1191 | 1 | ||
| METAL,BRG,"BROWN"MARK | 13034 | 13034-1016 | AR | ||
| METAL,BRG"BLACK"MARK | 13034A | 13034-1017 | AR | ||
| METAL,BRG,"BLUE"MARK | 13034B | 13034-1018 | AR | ||
| BUSHING,CRANKSHAFT,BL | 13034C | 13034-1064 | AR | ||
| BUSHING,CRANKSHAFT,BL | 13034D | 13034-1065 | AR | ||
| BUSHING,CRANKSHAFT,BR | 13034E | 13034-1066 | AR | ||
| BUSHING,CONNECTING RO | 13034F | 13034-1067 | AR | ||
| BUSHING,CONNECTING RO | 13034G | 13034-1068 | AR | ||
| BUSHING,CONNECTING RO | 13034H | 13034-1069 | AR | ||
| SHAFT,L=24.5 | 13107 | 13107-1142 | 1 | ||
| ROD-ASSY-CONNECTING,H | 13251 | 13251-1059-HH | 4 | ||
| ROD-ASSY-CONNECTING,I | 13251A | 13251-1059-II | 4 | ||
| ROD-ASSY-CONNECTING,J | 13251B | 13251-1059-JJ | 4 | ||
| ROD-ASSY-CONNECTING,K | 13251C | 13251-1059-KK | 4 | ||
| BOLT,CONNECTING ROD,8MM | 92001 | 92001-1887 | 8 | ||
| BOLT,SOCKET,6X14 | 92002 | 92002-1192 | 4 | ||
| BOLT | 92002A | 92002-1479 | 1 | ||
| NUT,FLANGED,8MM | 92015 | 92015-1311 | 8 | ||
| PIN-NEUTRAL POSITION | 92043 | 92043-076 | 1 | ||
| OIL SEAL,HSCY 25X36X7 | 92049 | 92049-1013 | 1 | ||
| OIL SEAL,HSCY25397 | 92049A | 92050-081 | 1 | ||
| CHAIN,#63-139X50L | 92057 | 92057-1011 | 1 | ||
| SPRING | 92081 | 92081-112 | 1 | ||
| PIN-SPRING,4X8 | 555 | 555A0408 | 1 | ||
| "0" RING,16MM | 670 | 670B2016 | 1 |
