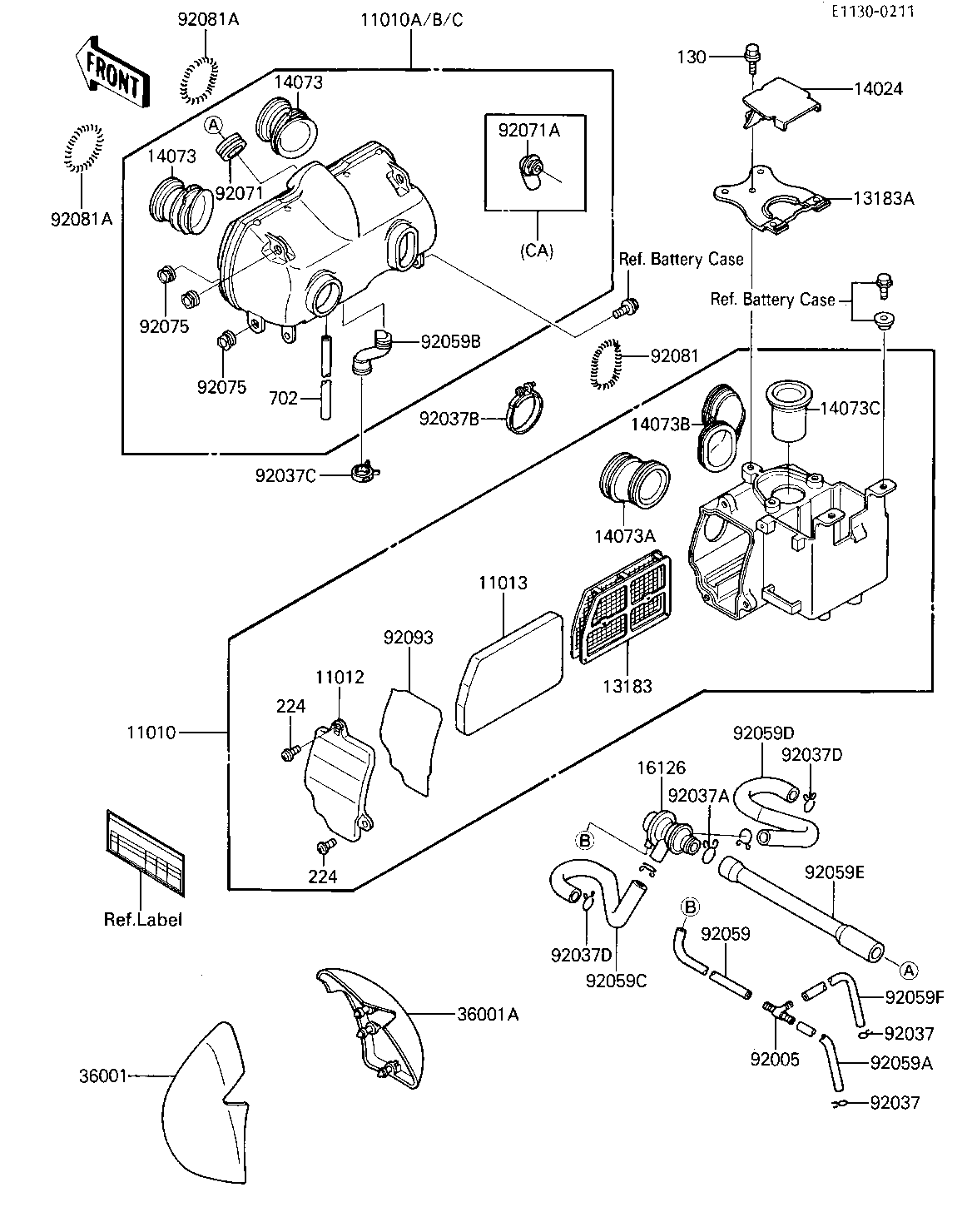

1986 ZL600 Eliminator - AIR CLEANER

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR,RR 11010 11010-1281 1
FILTER-ASSY-AIR,FR 11010A 11010-1286 1 US
FILTER-ASSY-AIR,FR 11010B 11010-1287 1 CA
FILTER-ASSY-AIR,FR (Canada) 11010C 11010-1291 1 CN
CAP,AIR FILTER ELEMEN 11012 11012-1503 1
ELEMENT-AIR FILTER 11013 11013-1139 1
PLATE,AIR FILTER ELEM 13183 13169-1657 1
PLATE,IGNITION COIL 13183A 13169-1664 1
COVER,AIR INTAKE 14024 14024-1215 1
DUCT,CARBURETOR 14073 14073-1211 4
DUCT,LH 14073A 14073-1249 1
DUCT,RH 14073B 14073-1250 1
DUCT,AIR INTAKE 14073C 14073-1251 1
VALVE ASSY,AIR SWITCH 16126 16126-1005 1 CA
COVER-SIDE,AIR FILTER 36001 36001-1326 1
COVER-SIDE,AIR FILTER 36001A 36001-1327 1
FITTING,TUBE 92005 92005-1017 1 CA
CLAMP-PIPE 92037 92037-072 2 CA
CLAMP 92037A 92037-1076 1 CA
CLAMP 92037B 92037-1554 1
CLAMP 92037C 92037-1730 1
CLAMP,BREATHER TUBE 92037D 92037-213 4 CA
TUBE,4X9X220L 92059 92059-1040 1 CA
TUBE,4X9X80 92059A 92059-1365 1 CA
TUBE,BREATHER 92059B 92059-1545 1
TUBE,AIR SWITCH VALVE 92059C 92059-1674 1 CA
TUBE,AIR SWITCH VALVE 92059D 92059-1675 1 CA
TUBE,AIR SWITCH-AIR F 92059E 92059-1684 1 CA
TUBE 92059F 92059-1712 1 CA
GROMMET,AIR CLEANER 92071 92071-1013 1 CA
CAGROMMET,AIR FILTER 92071A 92071-1114 1
DAMPER,AIR FILTER 92075 92075-1470 6
SPRING 92081 92081-1177 1
SPRING,AIR FILTER DUC 92081A 92144-1771 4
SEAL,AIR FILTER CAP 92093 92093-1212 1
BOLT,FLANGED,6X10 130 130B0610 1
SCREW-PAN-WP-CROS 224 224B0612 3
TUBE,5X1430 702 702A051430 1
